Flight Under Cabinet Mount Rear Delivery 2 With Vacuum Package

Flight Under Cabinet Mount Rear Delivery 2 With Vacuum Package

$2,741.95
$3,838.00 $2,741.95
Sale Sold out
  • SKU: RD-3150
  • Brand: Flight Dental Systems
  • Ships From: Flight Warehouse
Visa

Why Dentists Nationwide Trust DentalMarketplace

Risk-Free Ordering with a 30-Day Money Back Guarantee
Quality Manufacturers & Authorized Distribution Channels
Fast U.S. Shipping with Real-Time Order Tracking
100% Best In Class Customer Service

Description

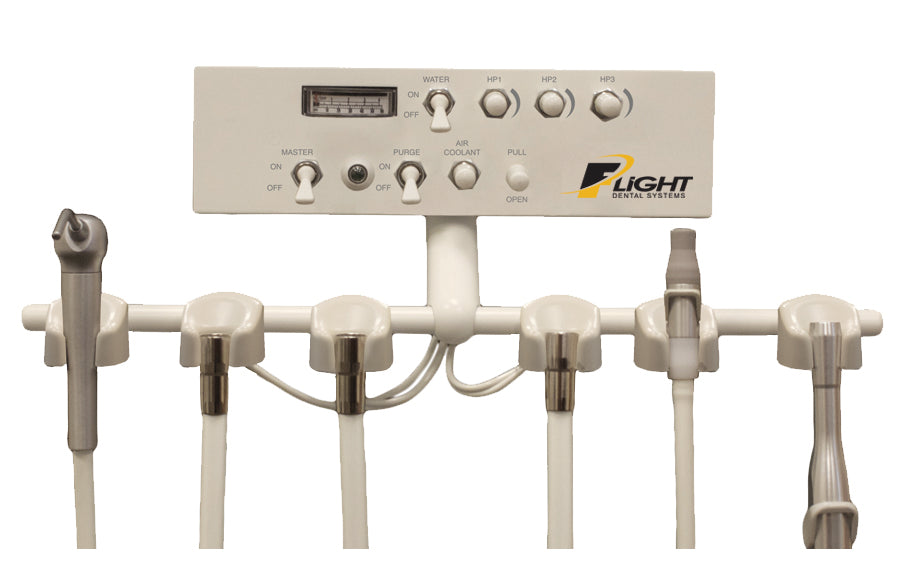

Under Cabinet Rear Delivery With the Vacuum Package - HVE and SE Included

The Flight RD-3150 is the vacuum version of Flight's under cabinet rear delivery system: 3 HP automatic control, 3-way syringe and an integrated vacuum package with HVE and SE, in full steel with ball bearing slides.

Key Features and Benefits

  • 3 HP automatic control - each handpiece activates as it leaves the holder
  • 3-way syringe
  • Water retraction valves with individual water controls - no drip into the field
  • Individual air pressure adjustment with gauge - each handpiece at its own pressure
  • Full steel construction, premium ball bearing slides

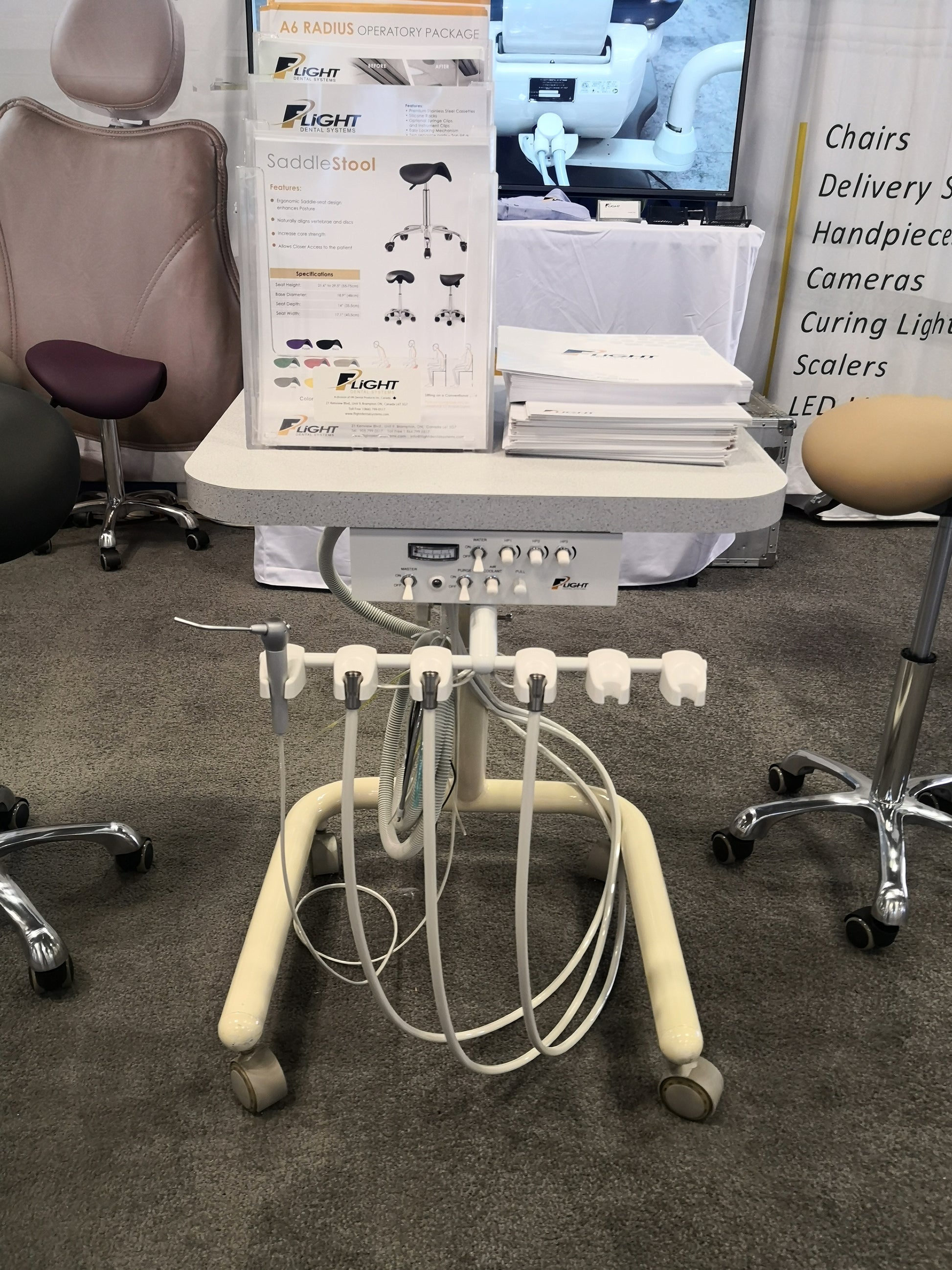

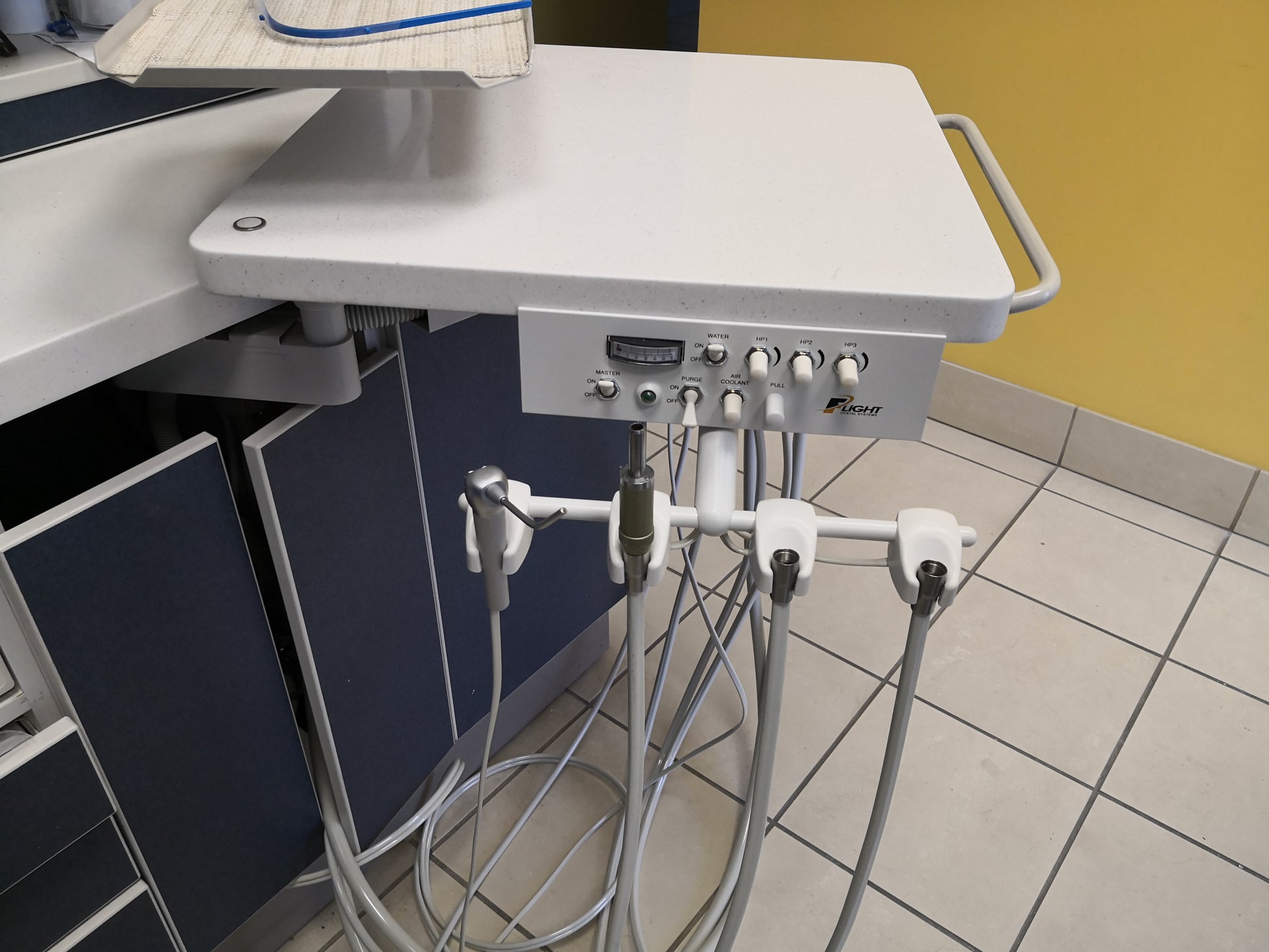

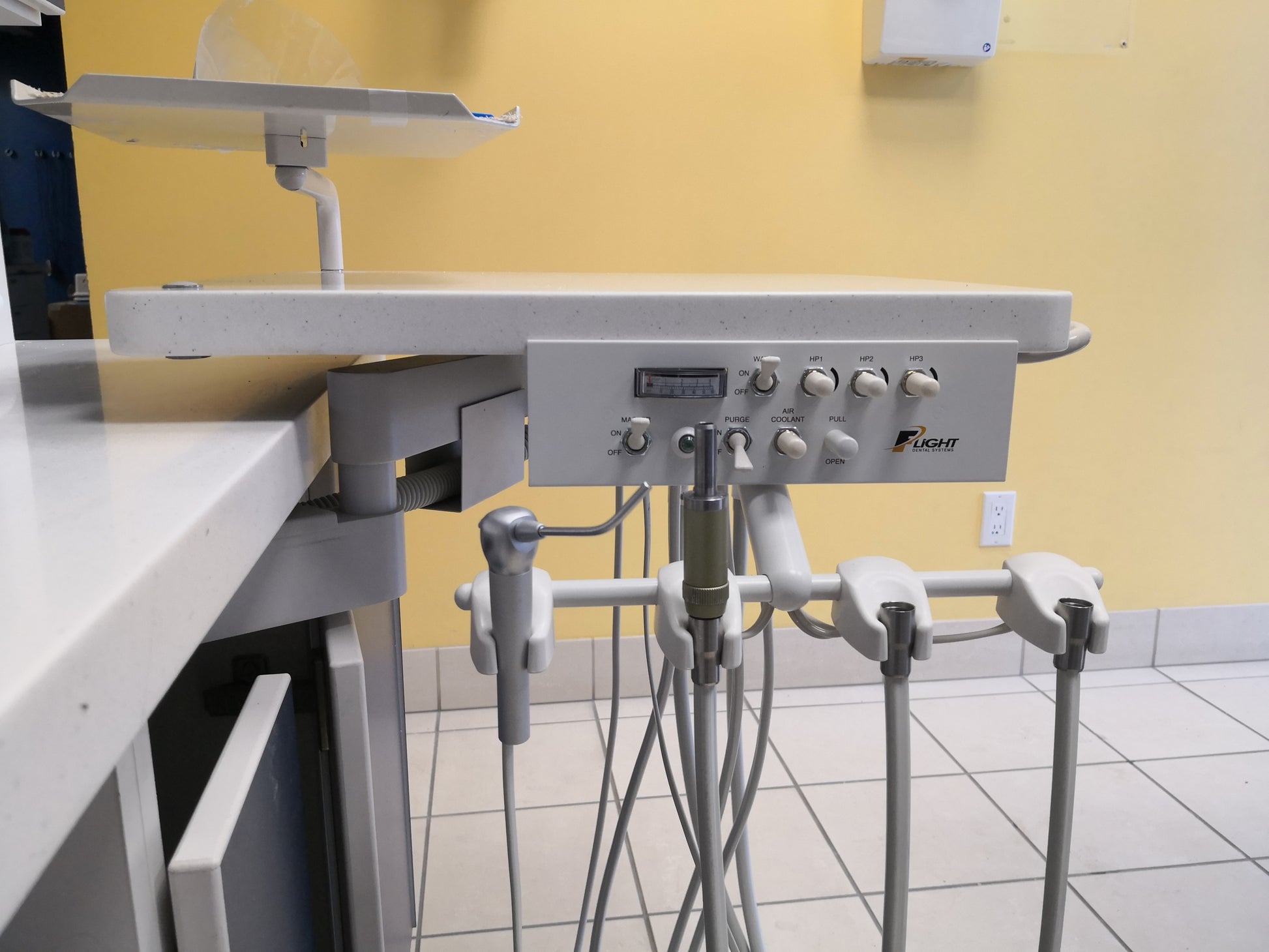

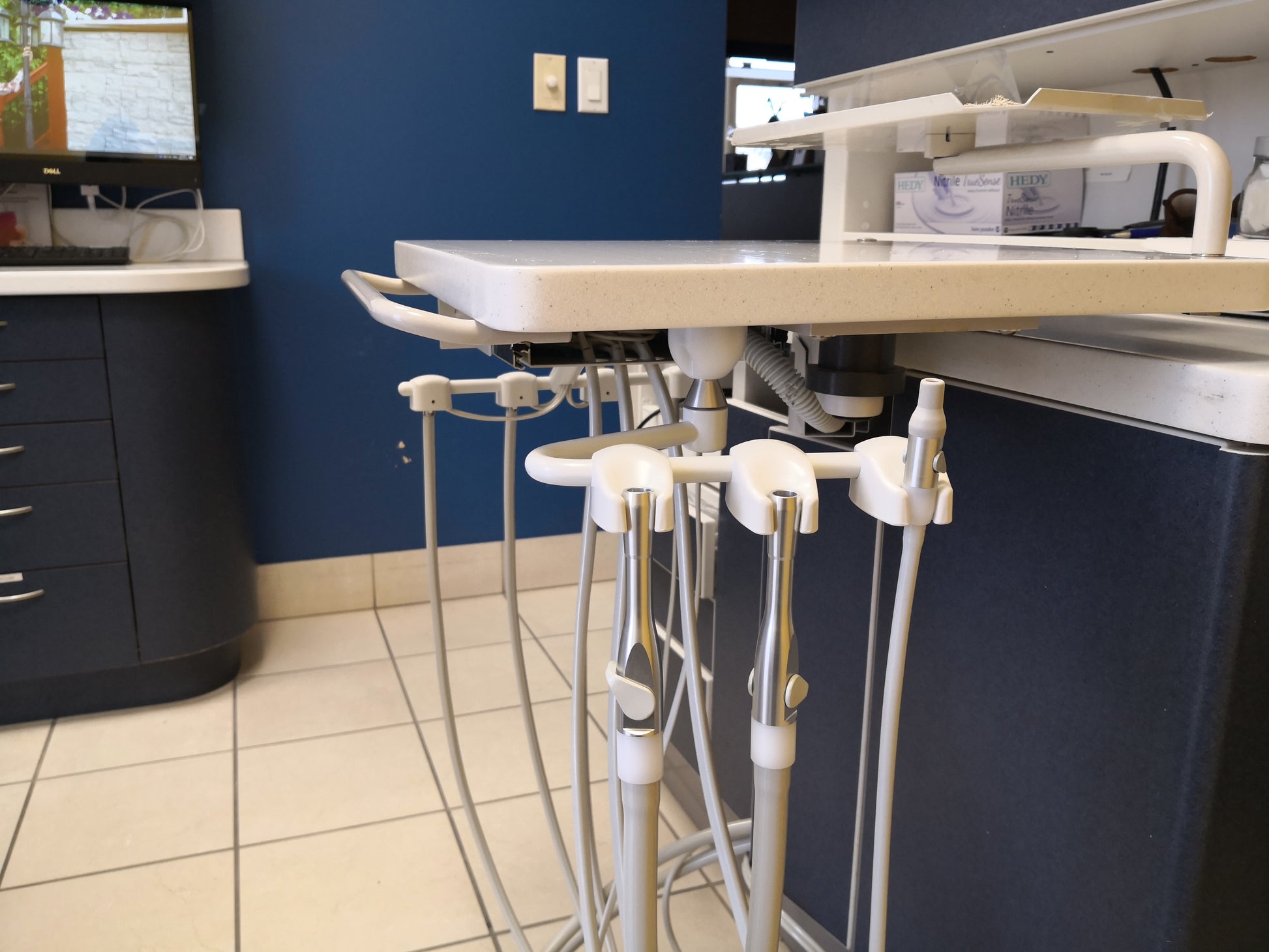

  • Mounts under a cabinet, a mobile cart or a swivel table
  • Vacuum package included - HVE and SE
  • XHVE-102 extra HVE holder and hanger available

Clinical and Workflow Advantages

Rear delivery keeps every instrument behind the patient. Two things follow from that: the operatory reads as a calmer room because handpieces and syringes are out of the patient's sightline, and utilities are plumbed to one location at the rear cabinet rather than run to a chair-mounted unit - which is the least expensive way to connect an operatory. It suits four-handed dentistry, where the assistant retrieves and transfers instruments.

Why Choose It

This is the complete unit. Ordering the RD-3100 and adding vacuum later is not an upgrade path - it is a different unit, so decide before you buy. DentalMarketplace is an authorized US dealer for Flight Dental Systems.

What's Included

  • One RD-3150 under cabinet mount rear delivery unit, full steel with ball bearing slides
  • 3 HP automatic control with individual air pressure adjustment and pressure gauge
  • 3-way syringe
  • Vacuum package - HVE and SE
  • Water retraction valves with individual water controls
  • Mounting hardware for under-cabinet, mobile cart or swivel table installation
  • Not included: water bottle system (110-032), extra HVE holder and hanger (XHVE-102) and assistant arm (AI-105) are optional extras

Warranty and Support

Five year manufacturer warranty on parts, workmanship and materials, per Flight's published warranty schedule for delivery systems. Wear and tear items are excluded - gaskets, tubing and filters - as are normal service items such as o-rings, hoses, HVE and SE valves and 3-way syringes. Warranty applies where the product is installed by an authorized Flight dealer, and each unit must be registered with Flight separately. Call 833-303-7399 to confirm cabinet fit, vacuum requirements and installation before ordering.

Technical Specifications

Flight Under Cabinet Mount Rear Delivery 2

  • Manufacturer part number: RD-3150
  • Type: Under cabinet mount rear delivery with vacuum
  • Vacuum package: Included - HVE and SE
  • Handpiece control: 3 HP automatic - each handpiece activates when lifted from the holder
  • Syringe: 3-way
  • Water control: Water retraction valves with individual water controls
  • Air control: Individual pressure adjustment per handpiece, with pressure gauge
  • Construction: Full steel
  • Slides: Premium ball bearing slide mechanisms
  • Mounting: Under a cabinet, a mobile cart, or under a swivel table on a rear cabinet
  • Options: Optional accessories: water bottle system (PN 110-032) · bent bar handle assistant arm (PN AI-105) · extra HVE holder and hanger (PN XHVE-102)
  • Warranty: 5 years (wear items excluded)

FAQs

Flight Under Cabinet Mount Rear Delivery 2

Q: What does the RD-3150 add over the RD-3100?

A: The vacuum package - HVE and SE. If you want vacuum at the rear cabinet rather than running it separately, this is the unit.

Q: Where can it be mounted?

A: Under a cabinet, on a mobile cart, or under a swivel table on the rear cabinet.

Q: How do the handpieces activate?

A: Each of the three positions activates automatically when the handpiece is lifted from its holder.

Q: Is there somewhere to hang the HVE?

A: An extra HVE holder and hanger is available as PN XHVE-102, made for this model.

Q: Can I adjust air pressure per handpiece?

A: Yes, individually, with a pressure gauge on the unit.

Q: What does the water retraction do?

A: Draws water back from the line when the handpiece stops, preventing drips into the field and back-flow down the tubing.

Q: What other accessories exist?

A: The water bottle system (110-032) and the bent bar assistant arm (AI-105).

Q: What is it made of?

A: Full steel with premium ball bearing slide mechanisms.

Q: Why choose rear delivery over a chair-mounted unit?

A: Rear delivery keeps every instrument behind the patient. Two things follow from that: the operatory reads as a calmer room because handpieces and syringes are out of the patient's sightline, and utilities are plumbed to one location at the rear cabinet rather than run to a chair-mounted unit - which is the least expensive way to connect an operatory. It suits four-handed dentistry, where the assistant retrieves and transfers instruments.
