Convert a TRAD-2001 or TRAD-2002 to Continental Up-Hung Delivery

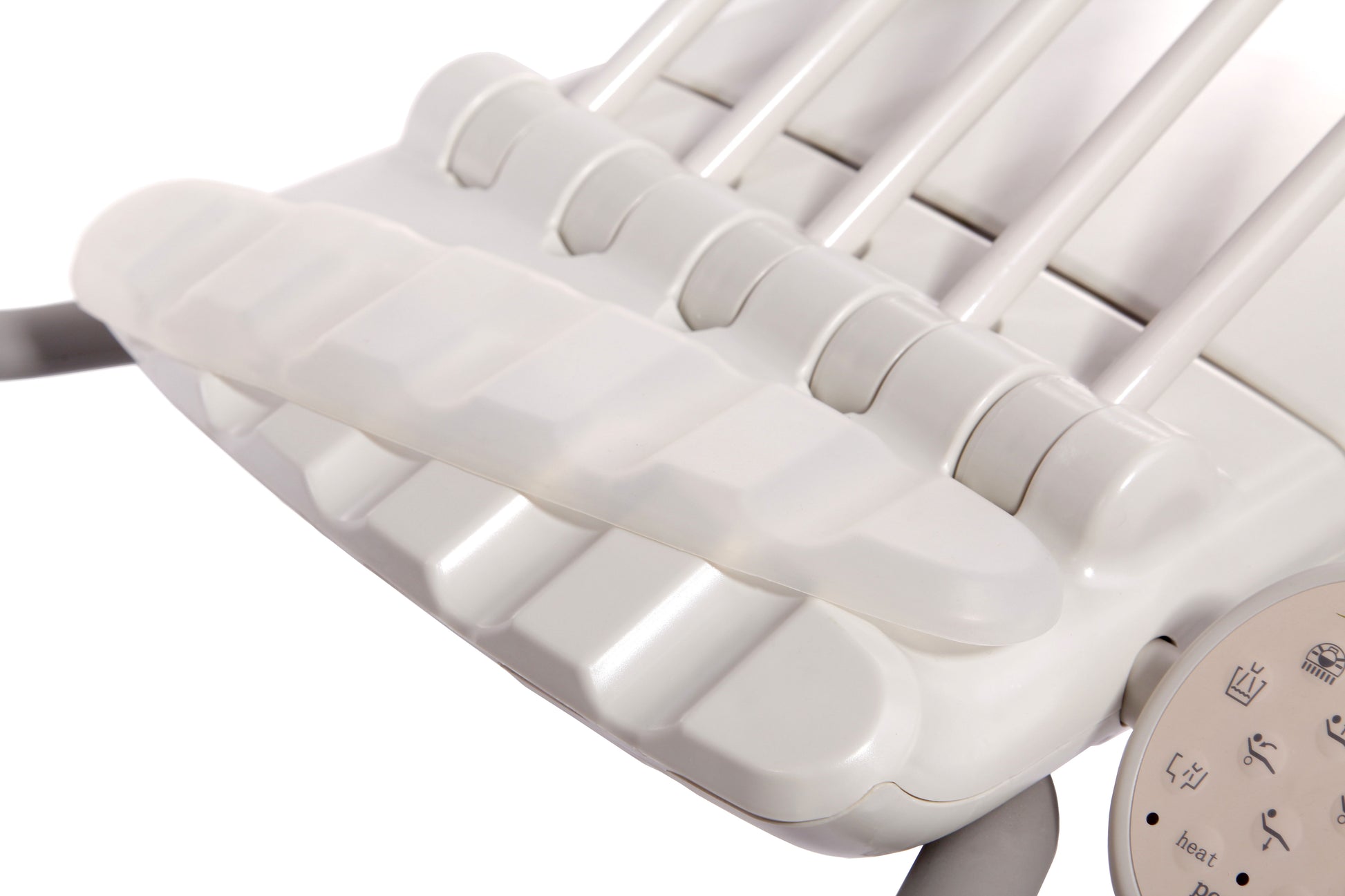

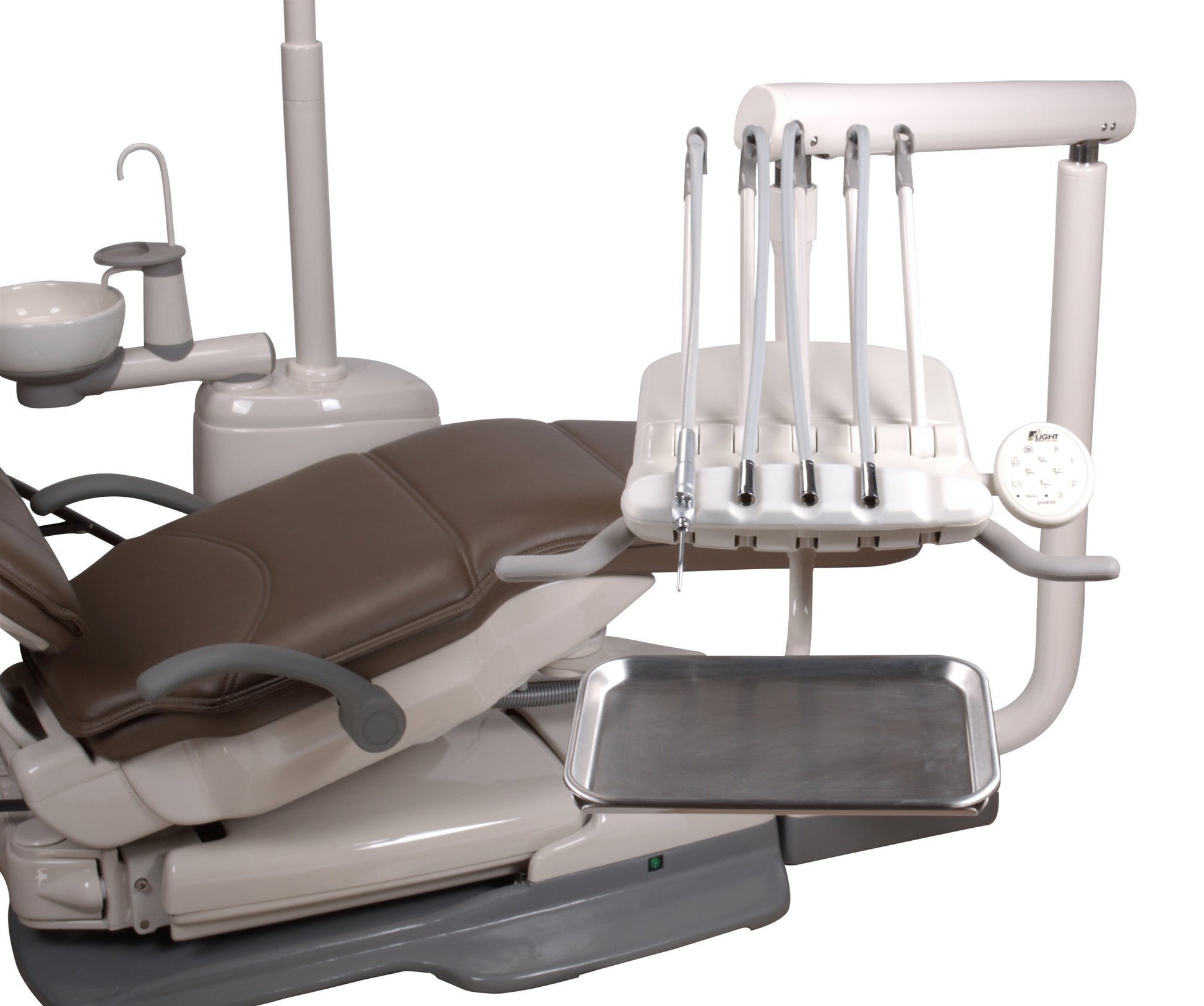

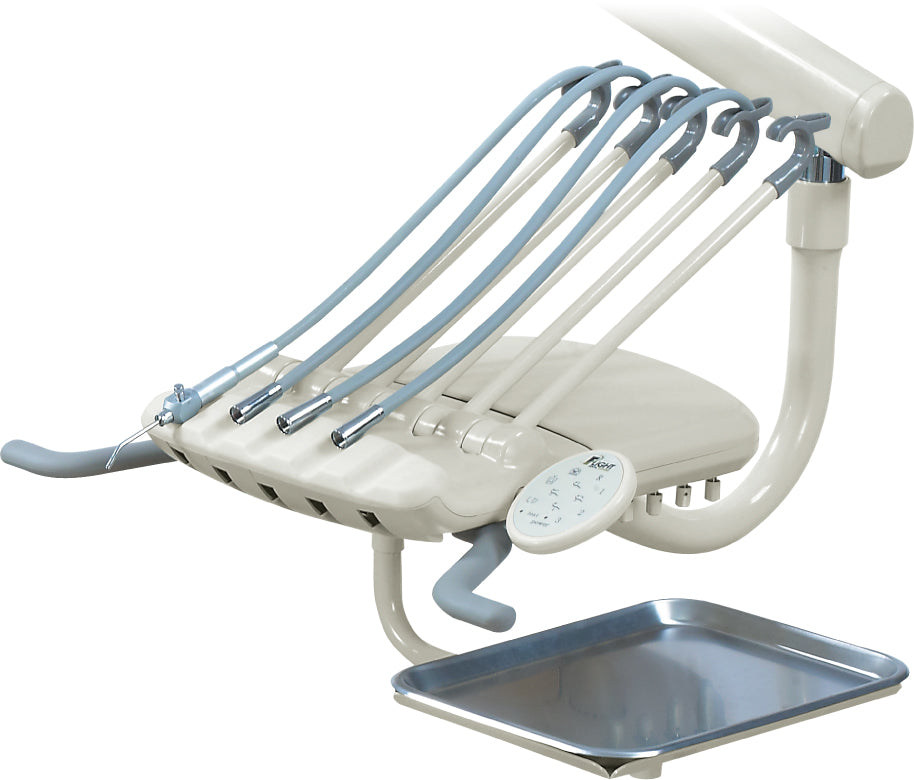

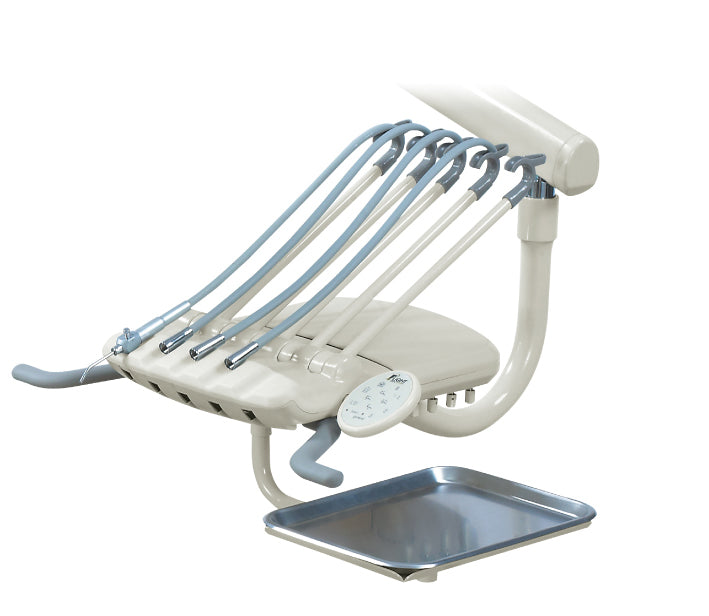

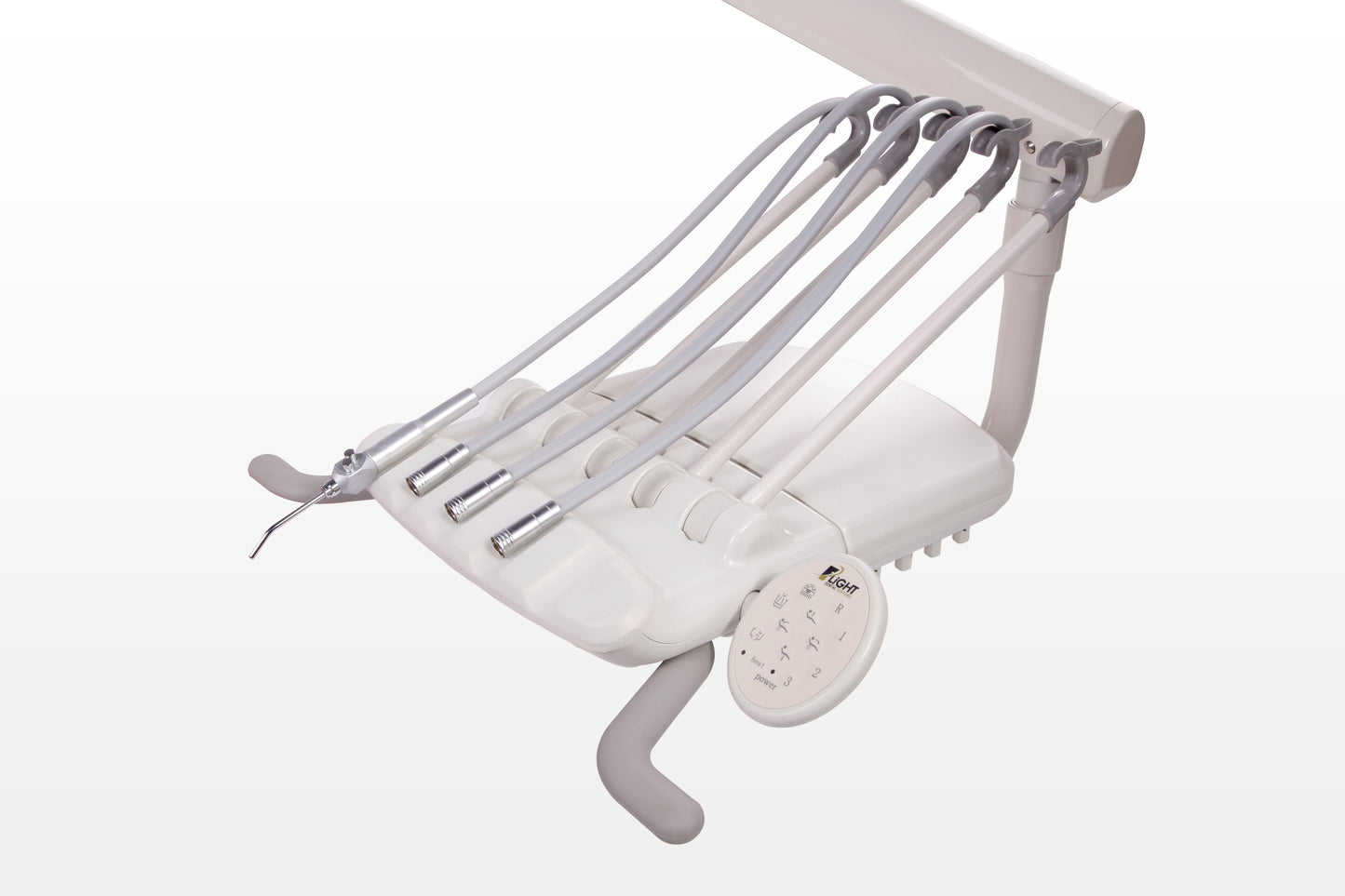

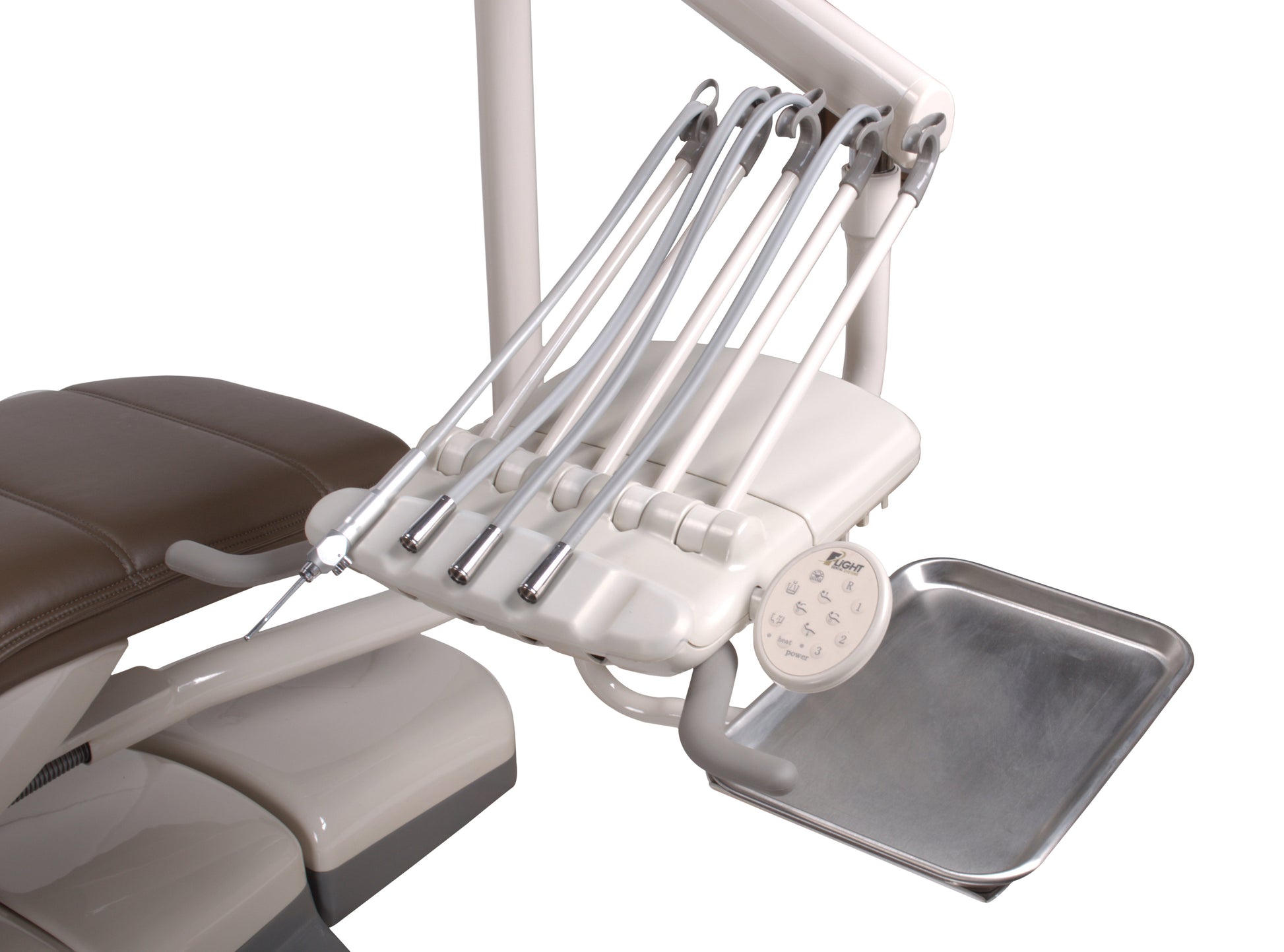

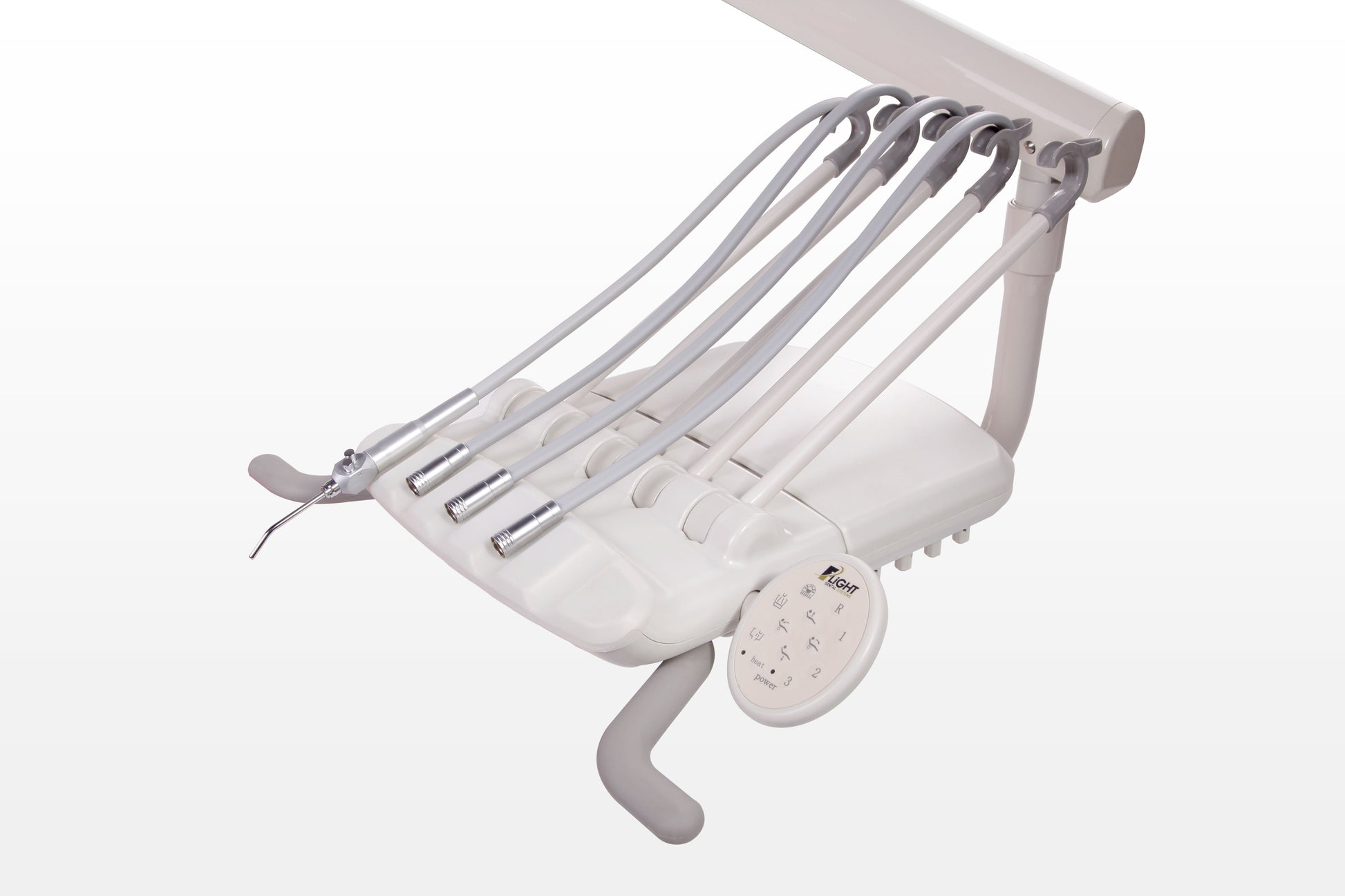

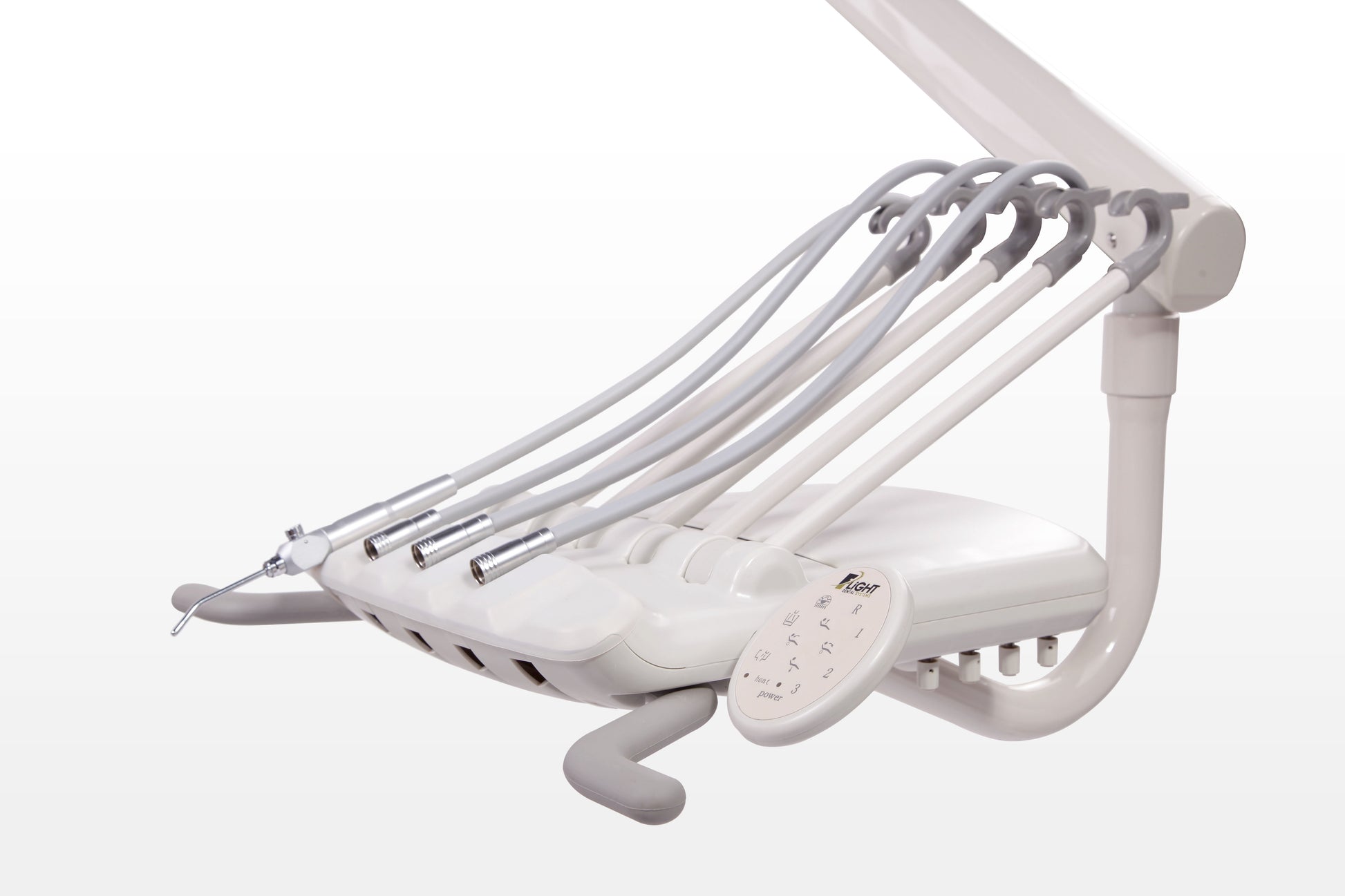

The Flight CONT-3002 is a continental delivery head that converts a TRAD-2001 or TRAD-2002 traditional down-hung delivery unit to continental configuration. On a traditional unit the handpiece tubing hangs below the delivery head, so every time you lift a handpiece you also lift and drag its hose. On a continental unit each handpiece rests on top of the head and its tubing runs through a spring-tensioned whip arm that travels with your hand and carries part of the load. It is a change in how the unit works in the hand rather than a change in what it does.
Key Features and Benefits
-
Spring-tensioned whip arms - each handpiece tubing is guided and partly supported by its own whip, which travels with the handpiece instead of resisting it
-
Designed to reduce pull-back - the whip takes up the tubing rather than letting it drag, so less grip force goes into holding the handpiece against the hose
-
Helps offset the weight of electric handpieces - an electric motor and attachment put considerably more load in the hand than a lightweight air turbine, and the whip carries part of it
-
Designed to reduce hand and wrist fatigue over a long appointment
-
Top-mounted handpiece pickup - instruments sit on the head where they are picked up and replaced directly, with no holder to hang them back into
-
Automatic tubing management - release the handpiece and the whip guides the tubing back toward the head; no loose hoses hanging beneath the unit or dragging on the floor
-
Helps protect the handpiece - a supported tubing run reduces the chance of an expensive motor or turbine ending up on the floor
-
Fits the TRAD-2001 and TRAD-2002 delivery unit only - it is not compatible with cart-mounted delivery, including the A-Series doctor's carts
-
Handpiece connections are unchanged - the conversion changes hose routing, not the couplings, so your existing handpieces carry over
Clinical and Workflow Advantages
Down-hung and continental are a matter of working preference, and clinicians tend to feel strongly once they have used both. What continental routing changes is where your hands and eyes have to go during a procedure.
-
Instruments stay in the natural working zone. With the head positioned in front of you rather than behind the patient's head, handpieces and the air/water syringe are picked up without extended reaching, leaning or torso twisting.
-
Less visual interruption. Handpieces sit in a known position on top of the head and can be retrieved and returned largely by feel and peripheral vision, so your attention does not have to leave the treatment field and travel to a darker area to find an instrument.
-
Freedom to change working position. Staying locked in one posture all day is the habit dental ergonomics guidance warns against; a delivery head you can reposition supports moving around the patient's head through the procedure.
-
Right- and left-handed operators. A correctly positioned continental head can be repositioned for different clinicians, which matters where one operatory is shared.
-
A cleaner working area. Tubing stays organised on the head instead of hanging across the tray among burs, instruments and materials.
These are design and positioning benefits. No delivery system prevents work-related musculoskeletal problems on its own, and the ergonomic literature comparing delivery styles head to head is thin - what continental routing does is remove specific motions from the procedure.
Why Choose the CONT-3002
It converts an existing TRAD-2001 or TRAD-2002 for a fraction of the cost of a new delivery unit, so a practice that bought one configuration and prefers the other does not have to replace a working unit. If you are buying an operatory outright, specify the configuration you want up front instead. One honest counterpoint: a continental head sits closer to the patient and in their line of sight, which some practices - paediatric operatories in particular - would rather avoid. DentalMarketplace is an authorized US dealer for Flight Dental Systems.
What's Included
- One CONT-3002 continental delivery unit head with whip arm tubing support
-
Not included: delivery unit, cart, handpieces, tubing or installation. This is the conversion head for a TRAD-2001 or TRAD-2002 you already own
Warranty and Support
Five year manufacturer warranty on parts, workmanship and materials, per Flight's published warranty schedule for delivery systems. Wear and tear items are excluded - gaskets, tubing and filters - as are normal service items such as o-rings, hoses, HVE and SE valves and 3-way syringes. Warranty applies where the product is installed by an authorized Flight dealer, and each unit must be registered with Flight separately. Call 833-303-7399 with your delivery unit model and serial before ordering, so we can confirm the conversion and what installation involves.
