Flight Under Cabinet Mount Rear Delivery 1

Flight Under Cabinet Mount Rear Delivery 1

$2,425.95
$3,396.00 $2,425.95
Sale Sold out
  • SKU: RD-3100
  • Brand: Flight Dental Systems
  • Ships From: Flight Warehouse
Visa

Why Dentists Nationwide Trust DentalMarketplace

Risk-Free Ordering with a 30-Day Money Back Guarantee
Quality Manufacturers & Authorized Distribution Channels
Fast U.S. Shipping with Real-Time Order Tracking
100% Best In Class Customer Service

Description

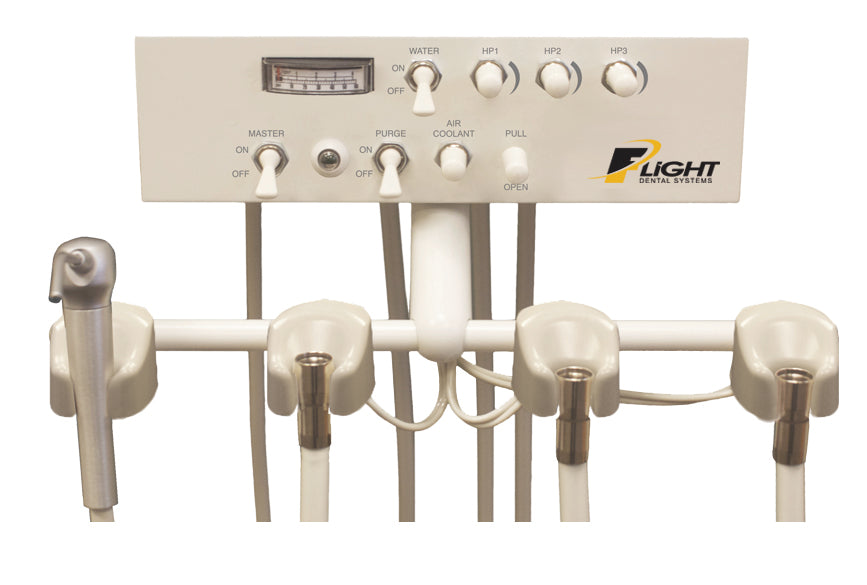

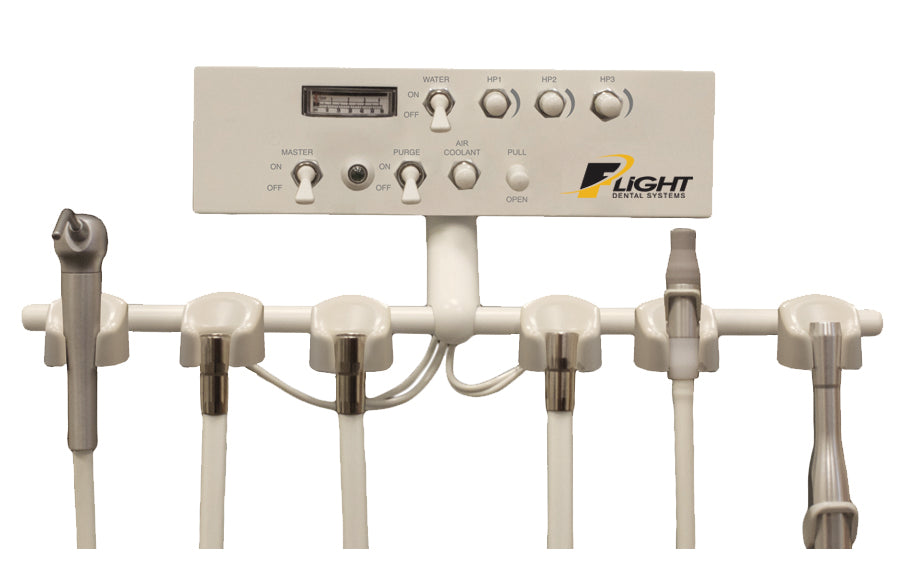

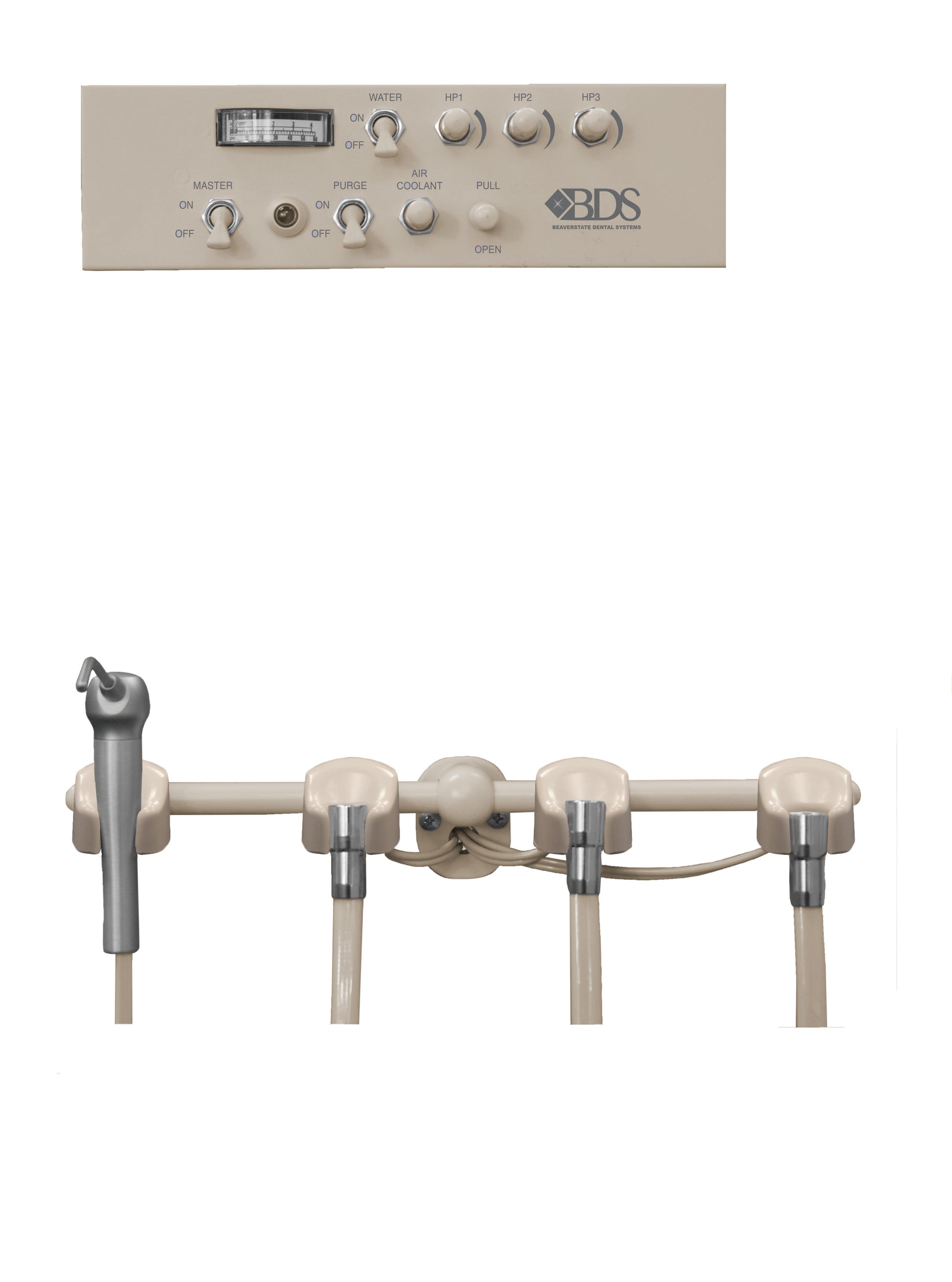

An Under Cabinet Rear Delivery Unit in Full Steel - 3 HP Control and Syringe

The Flight RD-3100 is a compact rear delivery system that mounts under a cabinet, a mobile cart or a swivel table. It carries 3 HP automatic control and a 3-way syringe, with water retraction valves, individual water controls and per-handpiece pressure adjustment.

Key Features and Benefits

  • 3 HP automatic control - each handpiece activates as it leaves the holder
  • 3-way syringe
  • Water retraction valves with individual water controls - no drip into the field
  • Individual air pressure adjustment with gauge - each handpiece at its own pressure
  • Full steel construction, premium ball bearing slides

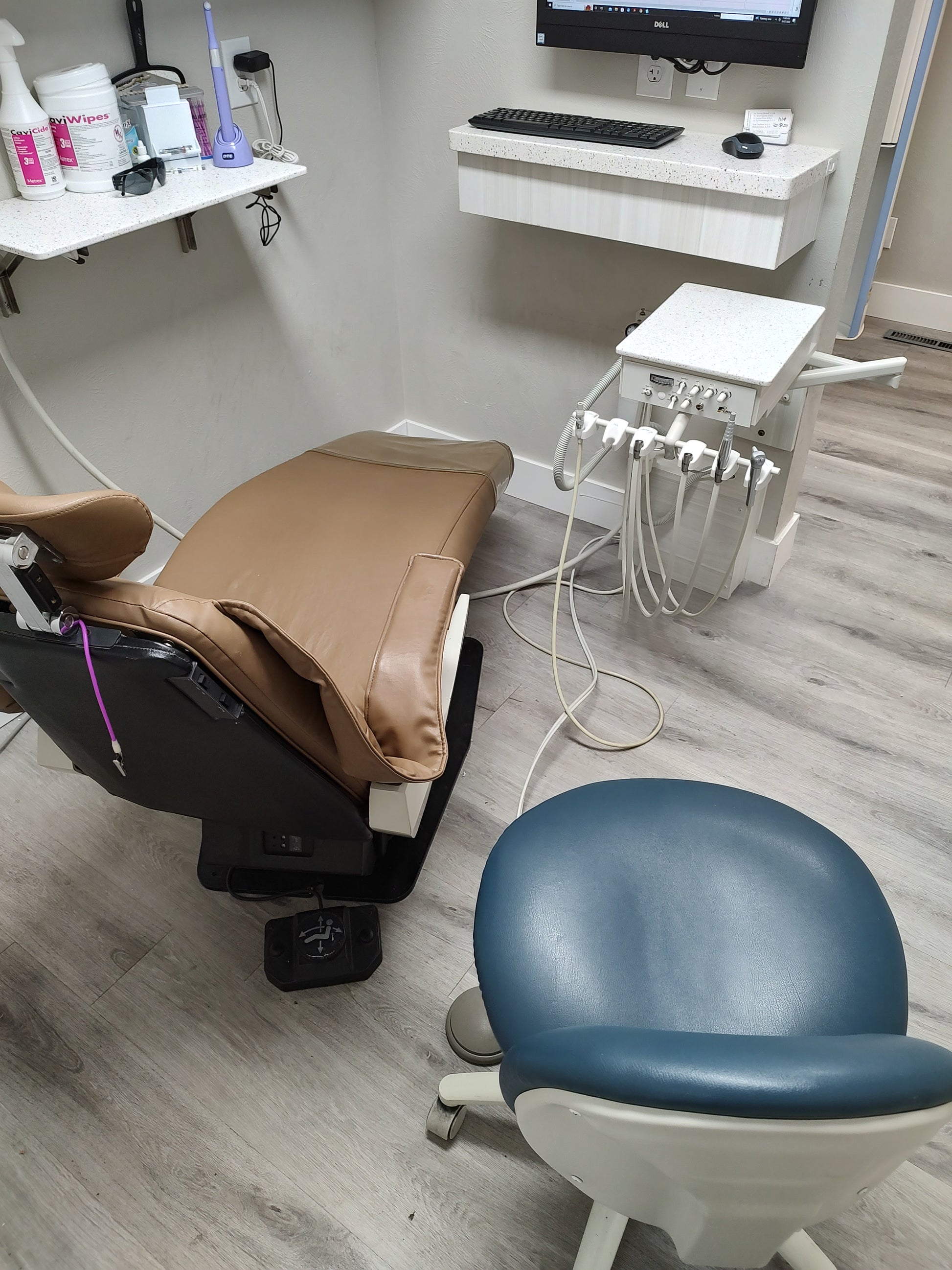

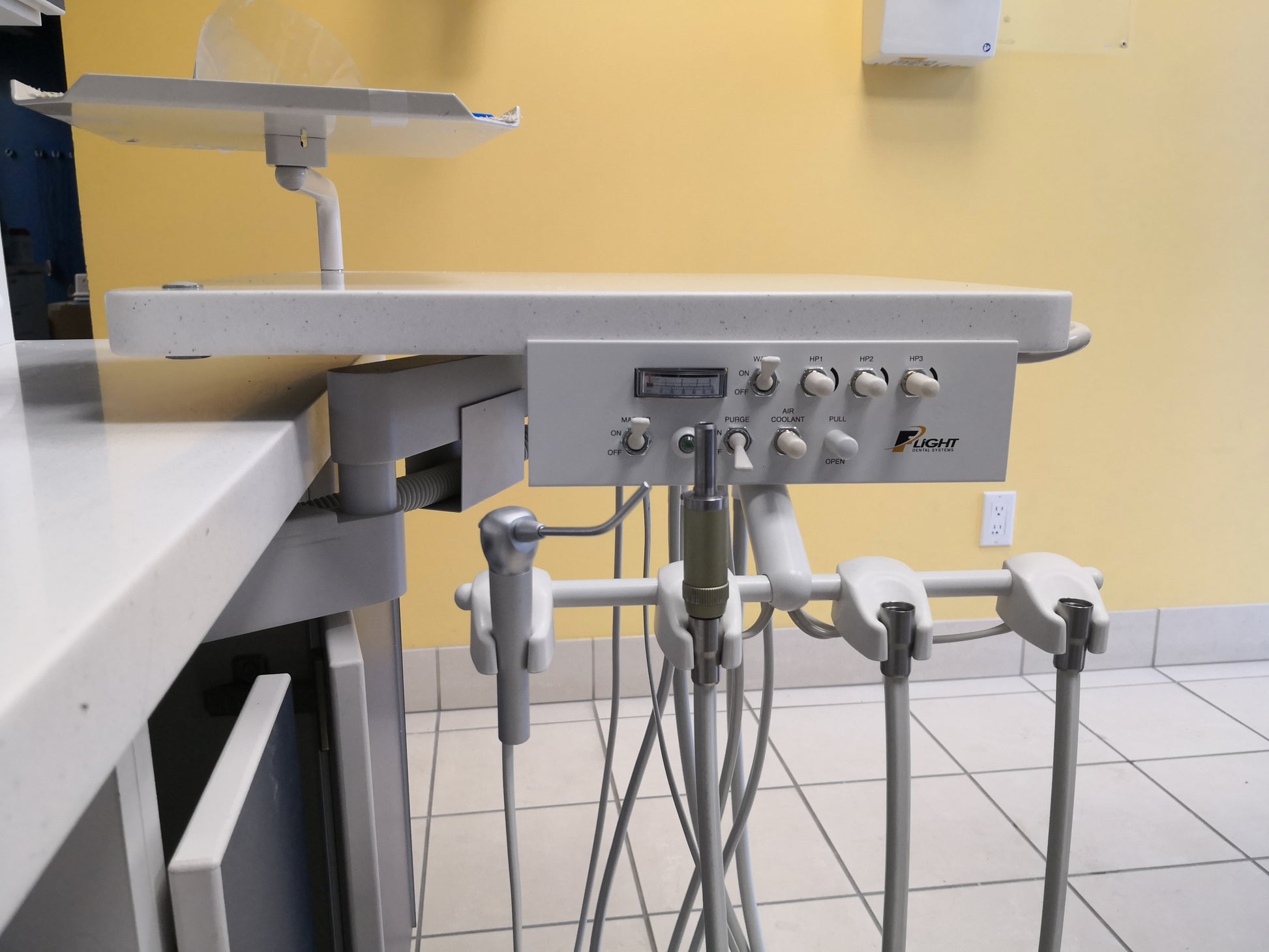

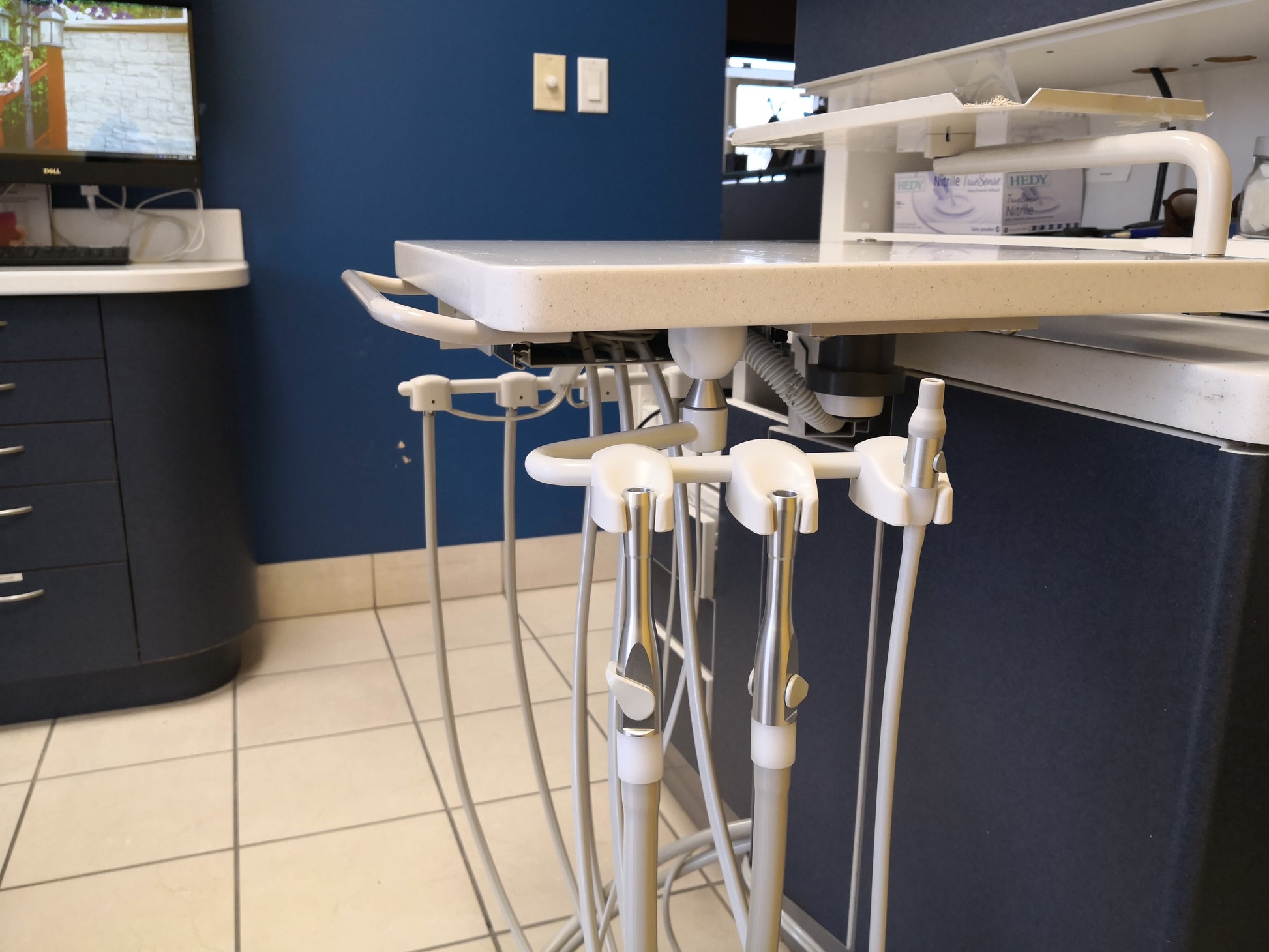

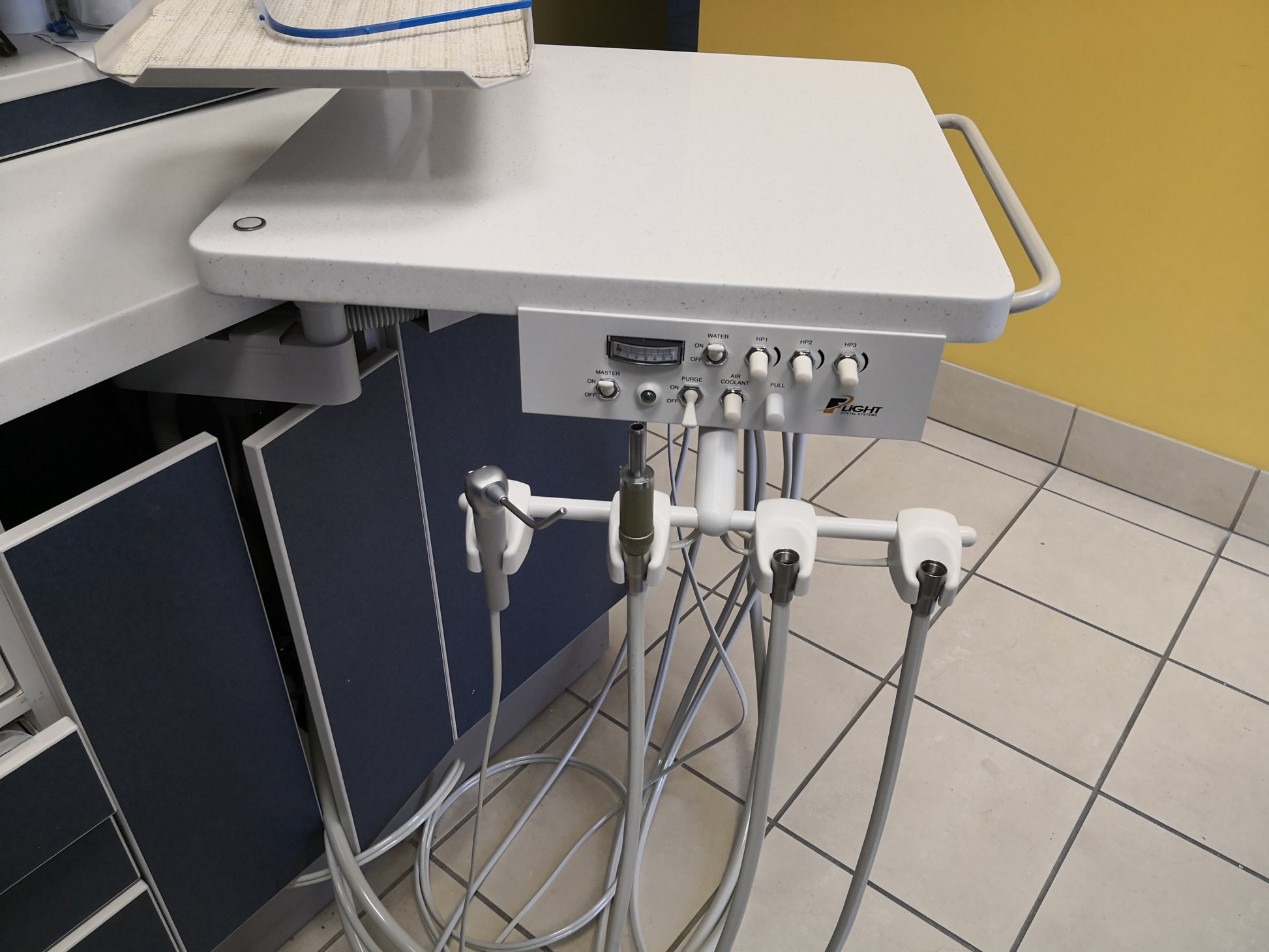

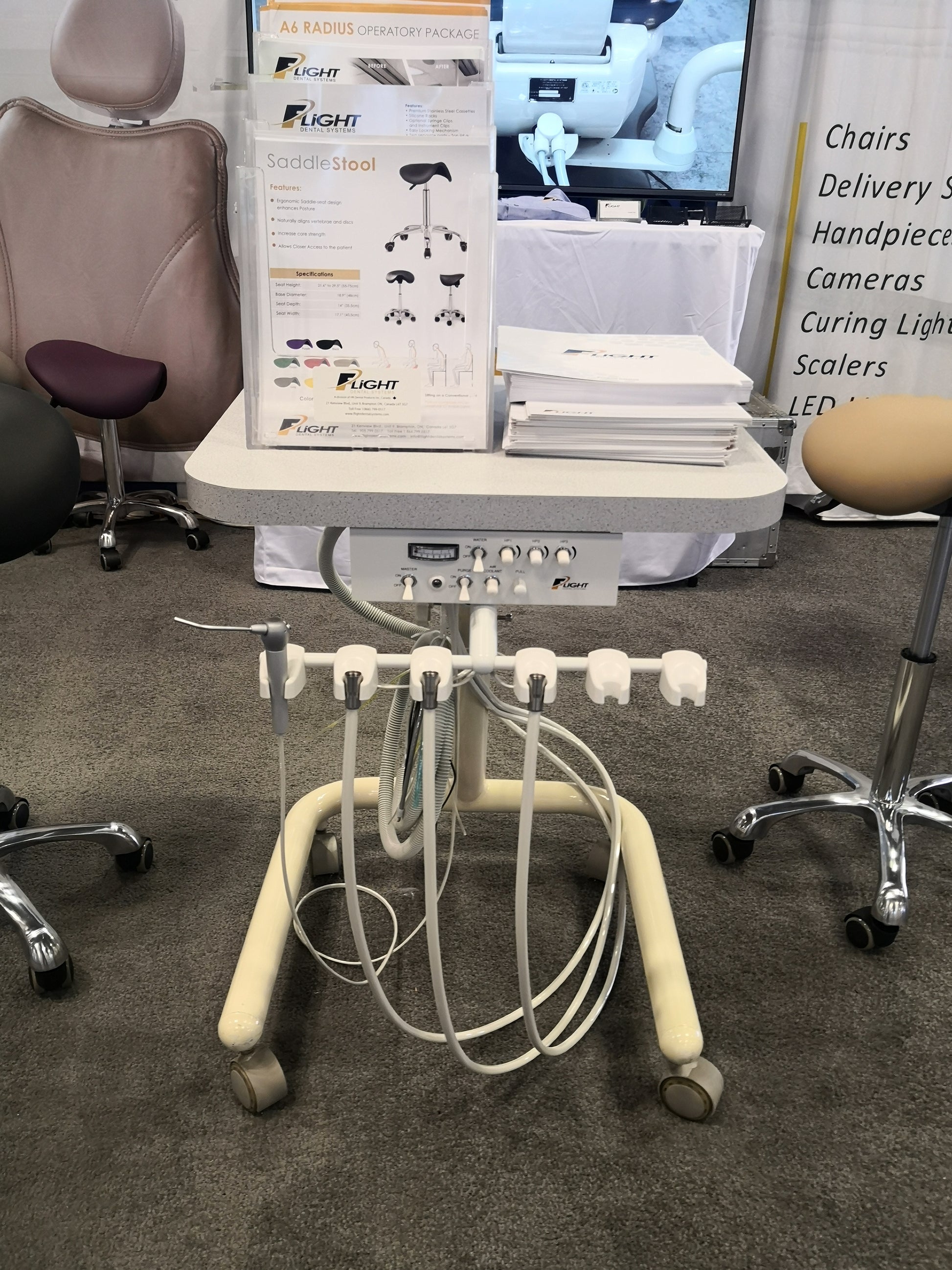

  • Mounts under a cabinet, a mobile cart or a swivel table
  • Vacuum not included - the RD-3150 is the version with HVE and SE

Clinical and Workflow Advantages

Rear delivery keeps every instrument behind the patient. Two things follow from that: the operatory reads as a calmer room because handpieces and syringes are out of the patient's sightline, and utilities are plumbed to one location at the rear cabinet rather than run to a chair-mounted unit - which is the least expensive way to connect an operatory. It suits four-handed dentistry, where the assistant retrieves and transfers instruments.

Why Choose It

Take the RD-3100 when vacuum is already handled elsewhere in the operatory. If it is not, order the RD-3150 instead - retrofitting vacuum later means a second unit. DentalMarketplace is an authorized US dealer for Flight Dental Systems.

What's Included

  • One RD-3100 under cabinet mount rear delivery unit, full steel with ball bearing slides
  • 3 HP automatic control with individual air pressure adjustment and pressure gauge
  • 3-way syringe
  • Water retraction valves with individual water controls
  • Mounting hardware for under-cabinet, mobile cart or swivel table installation
  • Not included: vacuum package - HVE and SE come with the RD-3150. Water bottle system (110-032) and assistant arm (AI-105) are optional extras

Warranty and Support

Five year manufacturer warranty on parts, workmanship and materials, per Flight's published warranty schedule for delivery systems. Wear and tear items are excluded - gaskets, tubing and filters - as are normal service items such as o-rings, hoses, HVE and SE valves and 3-way syringes. Warranty applies where the product is installed by an authorized Flight dealer, and each unit must be registered with Flight separately. Call 833-303-7399 to confirm cabinet fit, vacuum requirements and installation before ordering.

Technical Specifications

Flight Under Cabinet Mount Rear Delivery 1

  • Manufacturer part number: RD-3100
  • Type: Under cabinet mount rear delivery
  • Vacuum package: Not included - the RD-3150 is the version with HVE and SE
  • Handpiece control: 3 HP automatic - each handpiece activates when lifted from the holder
  • Syringe: 3-way
  • Water control: Water retraction valves with individual water controls
  • Air control: Individual pressure adjustment per handpiece, with pressure gauge
  • Construction: Full steel
  • Slides: Premium ball bearing slide mechanisms
  • Mounting: Under a cabinet, a mobile cart, or under a swivel table on a rear cabinet
  • Options: Optional accessories: water bottle system (PN 110-032) · bent bar handle assistant arm (PN AI-105)
  • Warranty: 5 years (wear items excluded)

FAQs

Flight Under Cabinet Mount Rear Delivery 1

Q: What is the difference between the RD-3100 and RD-3150?

A: The vacuum package. The RD-3100 gives you 3 HP control and a 3-way syringe; the RD-3150 adds HVE and SE. Everything else - steel body, ball bearing slides, water retraction, pressure gauge - is the same.

Q: Where can it be mounted?

A: Under a cabinet, on a mobile cart, or under a swivel table on the rear cabinet. That flexibility is the point of the design.

Q: How do the handpieces activate?

A: Automatically - each of the three positions activates its handpiece when lifted from the holder.

Q: Can I set air pressure per handpiece?

A: Yes. Individual pressure adjustments with an easy-to-read gauge, so a turbine and a low speed motor can each run at their own pressure.

Q: What are the water retraction valves for?

A: They pull water back from the line when the handpiece stops, so the last of the spray does not drip into the field or back down the tubing.

Q: Can I add vacuum later?

A: The RD-3150 is the vacuum version and is ordered as its own unit. Call 833-303-7399 before ordering if you expect to need HVE and SE.

Q: What optional accessories are there?

A: A water bottle system (110-032) and a bent bar assistant arm (AI-105).

Q: How durable is it?

A: Full steel construction with premium ball bearing slides. Flight builds it as a lifetime unit rather than a consumable.

Q: Is rear delivery right for my practice?

A: It works best with four-handed dentistry. It also demands accurate chair placement, since the operator needs room behind the patient's head - worth thinking about before committing the plumbing.
