Woodpecker LX16 Dental Diode Laser – Professional Soft Tissue & Endodontic Laser

Description

Woodpecker LX16 Diode Smart Laser System

The Woodpecker LX16 Diode Laser is an advanced three wavelength soft tissue laser system designed to deliver precision, versatility, and expanded clinical capability within a single platform.

Unlike traditional single wavelength diode lasers, the LX16 integrates three optimized wavelengths to improve tissue interaction across a wide range of dental procedures. This multi-spectrum design allows clinicians to select the appropriate absorption profile based on the procedure being performed, increasing efficiency and improving clinical outcomes.

With adjustable power settings, touchscreen controls, and programmable presets, the LX16 integrates seamlessly into general and specialty dental practices seeking surgical precision and periodontal versatility.

Three Wavelength Technology Explained

The LX16 integrates three clinically optimized wavelengths:

450 nm Blue
Provides highly efficient soft tissue cutting with excellent hemostasis. Strong absorption in hemoglobin allows precise incision with minimal thermal spread, making it ideal for gingivectomy, frenectomy, crown lengthening, and cosmetic soft tissue procedures.
976 nm Infrared
Designed for deeper tissue penetration and more aggressive soft tissue incision and excision. This wavelength supports high-efficiency cutting, coagulation, periodontal pocket decontamination, and endodontic canal disinfection. The 976 nm wavelength delivers strong tissue interaction when greater surgical power and penetration are required.
650 nm Red
Used for biostimulation and low-level laser therapy applications. It also functions as an aiming beam to improve procedural accuracy during laser treatment.

Clinical Advantages of Three Wavelengths

Select the optimal wavelength for each procedure
Perform both delicate cosmetic tissue work and aggressive surgical incision
Improve periodontal and endodontic disinfection outcomes
Enhance hemostasis and visibility
Expand procedural offerings with one device
Increase return on investment through broader clinical capability

Key Features and Benefits

Three wavelength diode laser system
450 nm precision cutting capability
976 nm aggressive incision and deep penetration performance
650 nm biostimulation and aiming beam

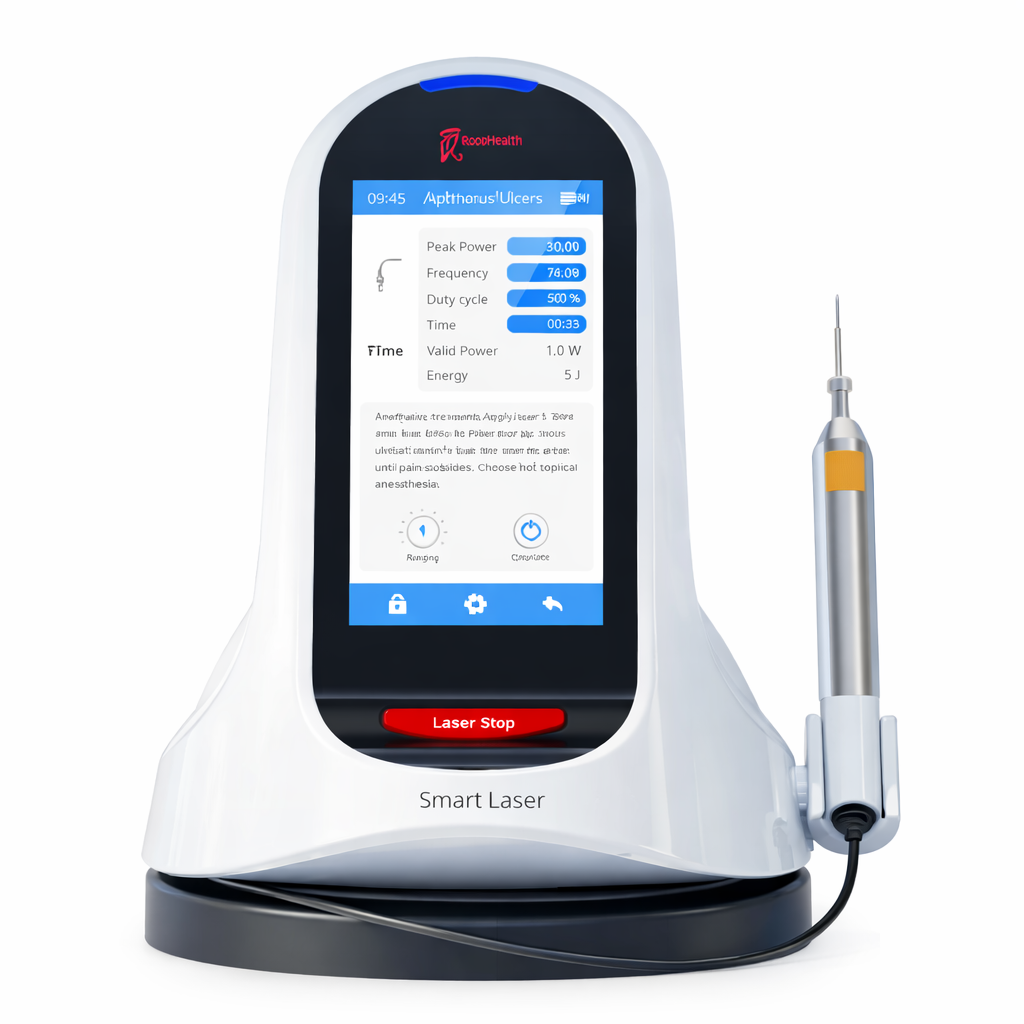

Intuitive 5" touchscreen control interface
Adjustable power settings
Programmable clinical presets
Compact and portable design
Ideal for general and specialty dentistry

Long-Life Rechargeable Lithium Battery

Built-in dual 11.1 V 2600 mAh (57.7 Wh) lithium batteries provide extended cordless operation between charges — ideal for busy practices and mobile workflows.

Ergonomic Autoclavable Handpiece & Fiber Tips

The handpiece sleeve and many laser fiber tips are sterilizable via autoclave, supporting clinic infection control protocols and long-term hygiene.

Comprehensive Safety Protection

Includes multiple pairs of laser protective goggles for operator and patient safety during all laser procedures. The system also features an auto shut-down protection mechanism to prevent overheating after inactivity.

Wide Range of Clinical Applications

The LX16 is suitable for:

Soft tissue surgery and incisions
Periodontal therapy and bacterial reduction
Endodontic canal sterilization
Peri-implantitis treatment
Low-Level Laser Therapy (LLLT) and biostimulation
Oral ulcer care
Teeth whitening enhancement

Each application benefits from controlled laser output and predictable performance.

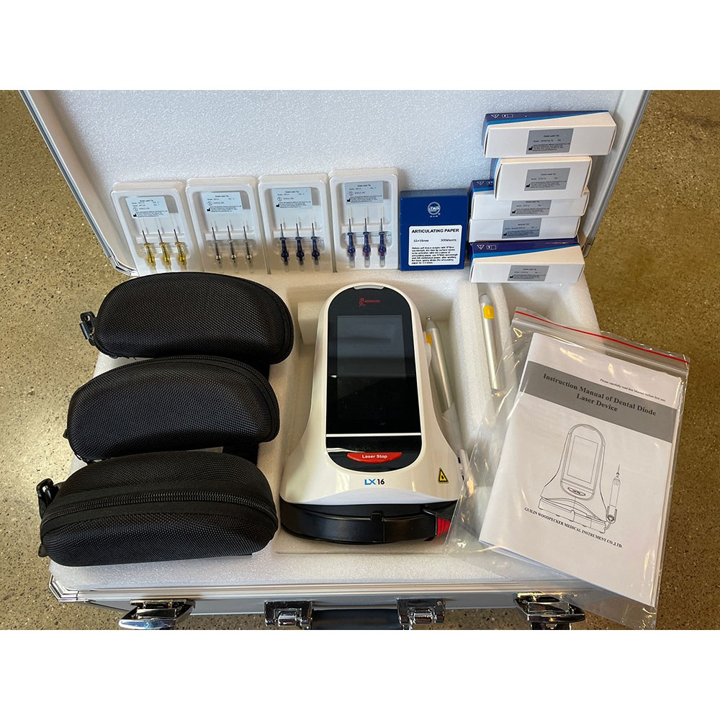

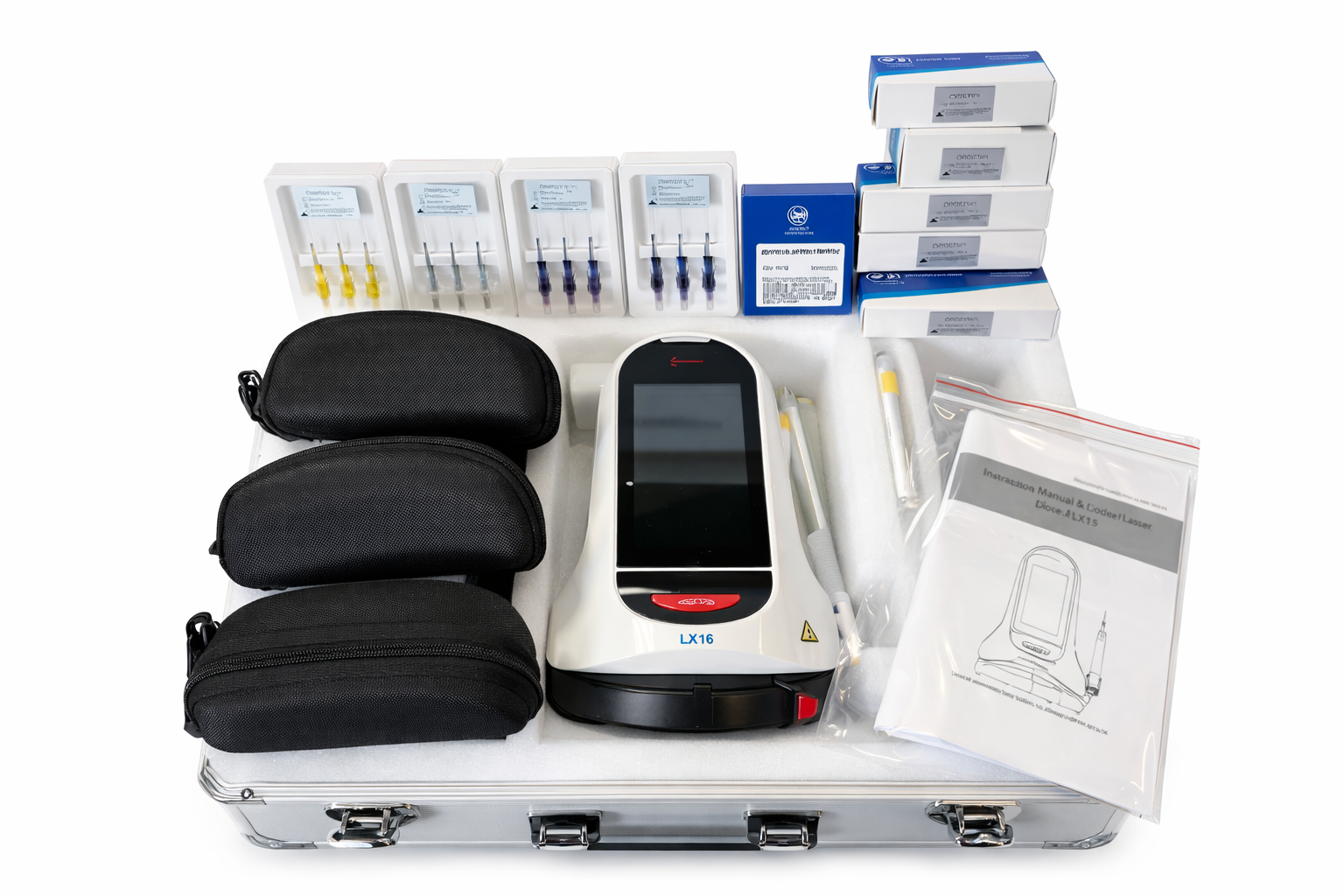

What’s Included

LX16 Dental Diode Laser Main Unit
Autoclavable Handpiece Sleeve
Multiple Fiber Tips (MF2-14, MF2-20, MF3-4, MF3-9, MF4-4, MF4-9)
Therapeutic & Whitening Tips
Fiber Activation & Articulating Paper
Bending Tool & Cutting Pen
Remote Interlock Control
Protective Goggles
Adapter & Power Cord
User Manual & Certificate
Bluetooth Foot Control SOLD Separately SKU: 27-112-FP

Warranty

3 Year Warranty
- 2 Year Manufacturer Warranty
- 1 Year DentalMarketplace Extended Warranty

Why Choose the Woodpecker LX16

Proven Clinical Versatility: Handles a broad spectrum of soft-tissue and therapeutic laser procedures with precision.
Practice-Ready Performance: Reliable battery power and preconfigured surgical settings help increase productivity and reduce chair time.
User-Friendly Operation: Touchscreen and intuitive controls reduce learning curve and enhance daily usability.
Hygiene & Safety: Autoclavable components and built-in safety features help meet clinic compliance needs.

Technical Specifications

Woodpecker Dental Diode Laser System LX16 Plus Smart Laser | 5W 450nm/650nm/978nm

Power Adapter Input: 100–240V AC, 50/60Hz, 2.5A
Main Unit Input: 15V, 6.0A
Laser 976 nm: CW: 0.2–4W Peak Power: 5W Chopped: 1Hz–20kHz Pulse: 5 μs – 0.9 s Class: 4
Laser 650 nm: CW: 25–200 mW Class: 2
Laser 450 nm: CW: 0.2–3W Chopped: 1Hz–20kHz Pulse: 5 μs – 0.9 s Class: 4
Aiming Beam: Wavelength: 650 ± 20 nm Max Power: <5 mW (Class 1)
Beam Divergence: Divergence Angle: 12.7° Half Angle: 0.22 mad / 12.6°
Battery: Type: Rechargeable Li-ion Capacity: 11.1V / 2600 mAh ×2 (57.7 Wh) Charging Time: ~4h (5h for first charge)
Dimensions: 8.7 in × 7.9 in × 9.1 in (22 cm × 20 cm × 23 cm)
Weight: 3.3lbs/ 1.5 kg

Downloads & Documentation

Videos & Training

FAQs

Woodpecker LX16 Plus Smart Laser — Frequently Asked Questions

Q: What is included with the Woodpecker LX16 Plus Smart Laser?

A: Every LX16 Plus ships as a complete, ready-to-treat package:

LX16 Plus diode laser main unit
Autoclavable handpiece sleeve
Six 3-packs of fiber tips — MF2-14, MF2-20, MF3-4, MF3-9, MF4-4 and MF4-9
Therapeutic and whitening tips
Fiber activation and articulating paper
Bending tool and cutting pen
Remote interlock control
Protective goggles
Power adapter and cord
User manual and certificate

The wireless foot control is the one item not in the box — see the next question.

Q: Is the wireless foot pedal included?

A: No. The Bluetooth foot control is sold separately as SKU 27-112-FP at $200. The laser is fully operable without it: treatment is triggered from the button on the handpiece. Practices that prefer hands-free activation, or that want to switch between control modes during longer surgical cases, generally add the pedal at the time of purchase.

Q: What warranty comes with the laser?

A: Three years total, and the third year is exclusive to DentalMarketplace:

Two-year Woodpecker manufacturer warranty
One-year DentalMarketplace extended warranty

Most competing listings for this laser carry the two-year manufacturer term only.

Q: Is the LX16 Plus authorized for sale and clinical use in the United States?

A: Yes. The Woodpecker dental diode laser platform is FDA 510(k) cleared under K210367, held by Guilin Woodpecker Medical Instrument Co., Ltd. and granted in March 2022. The clearance covers the device under its regulatory trade names D-Laser Blue and D-Laser 16, which are the same platform marketed in the US as the LX16 series.

Regulatory detail: Class II device, 21 CFR 878.4810, primary product code NVK (laser surgical instrument for use in general and plastic surgery and in dermatology). The full clearance letter and Indications for Use statement are linked in the Downloads section of the product page.

A valid US dental license is required to complete purchase.

Q: Which procedures is this laser used for?

A: The LX16 Plus is a soft-tissue and therapeutic laser. Documented clinical applications include:

Soft tissue surgery and incisions — gingivectomy, frenectomy, crown lengthening
Periodontal therapy and pocket decontamination
Endodontic canal sterilization
Peri-implantitis treatment
Low-level laser therapy (LLLT) and biostimulation
Oral ulcer management
Teeth whitening enhancement

It is not an ablative hard-tissue laser and is not intended for cutting enamel, dentin or bone.

Q: Why three wavelengths instead of one?

A: A single-wavelength diode forces one absorption profile onto every procedure. The LX16 Plus lets the clinician match the wavelength to the tissue interaction required:

450 nm blue — efficient soft tissue cutting with strong hemoglobin absorption, allowing precise incision at lower power with minimal thermal spread. Suited to cosmetic and delicate tissue work.
976 nm infrared — deeper penetration and more aggressive incision, excision and coagulation. Used where greater surgical power is needed, and for periodontal and endodontic disinfection.
650 nm red — biostimulation and low-level laser therapy, and doubles as the aiming beam for procedural accuracy.

In practice this means one device covers both cosmetic soft-tissue work and heavier surgical incision, rather than compromising on one to accommodate the other.

Q: What are the laser output specifications?

A:

976 nm: continuous wave 0.2–4 W, peak power 5 W, chopped 1 Hz–20 kHz, pulse 5 µs–0.9 s — Class 4
450 nm: continuous wave 0.2–3 W, chopped 1 Hz–20 kHz, pulse 5 µs–0.9 s — Class 4
650 nm: continuous wave 25–200 mW — Class 2
Aiming beam: 650 ± 20 nm, under 5 mW — Class 1

Output is adjustable, and programmable presets are stored for recurring procedures so settings do not have to be dialed in case by case.

Q: How long does the battery last, and how long does it take to charge?

A: The unit runs on dual rechargeable lithium-ion batteries — 11.1 V / 2600 mAh each, 57.7 Wh combined — which supports extended cordless operation between charges. A full charge takes roughly four hours, with about five hours on the very first charge.

Cordless operation is why this laser moves easily between operatories rather than being tied to one chair. The unit is 8.7 x 7.9 x 9.1 in (22 x 20 x 23 cm) and weighs 3.3 lbs (1.5 kg). The power adapter accepts 100–240 V AC, 50/60 Hz.

Q: Which parts can be sterilized, and what needs replacing over time?

A: The handpiece sleeve and many of the laser fiber tips are autoclavable, which keeps the device inside standard clinic infection-control protocol without a separate reprocessing workflow.

Ongoing consumables and spares available from DentalMarketplace:

Replacement laser tips, 3/pack — $50
Diode laser safety glasses — $40
Replacement LX16 handpiece with cable — $350
Wireless foot pedal, SKU 27-112-FP — $200

Multiple pairs of protective goggles ship with the unit so the operator, assistant and patient are covered from day one. The system also powers down automatically after a period of inactivity.

Q: Can the laser be financed, and what is the return policy?

A: Financing is available through Reliant Capital with terms from 24 to 84 months, credit decisions typically within two to four hours, deferral options, and no prepayment penalties. Applications up to $500,000 are app-only. Equipment purchases of this type are commonly evaluated under Section 179 — eligibility depends on your business use, placed-in-service date and taxable income, so confirm the treatment with your tax professional rather than relying on an estimate.

Returns are covered by the DentalMarketplace 30-Day Money Back Guarantee. The LX16 Plus is a portable, self-contained unit requiring no installation, plumbing or hardwiring, so it is not subject to the installed-equipment exclusions. Eligible returns must come back in like-new condition with original packaging and all included components.
