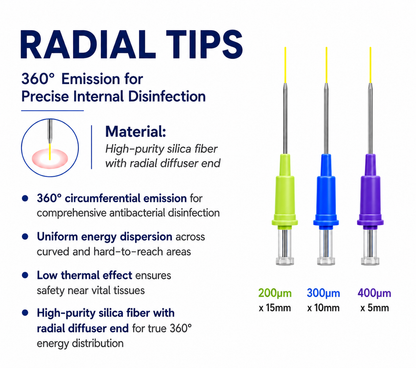

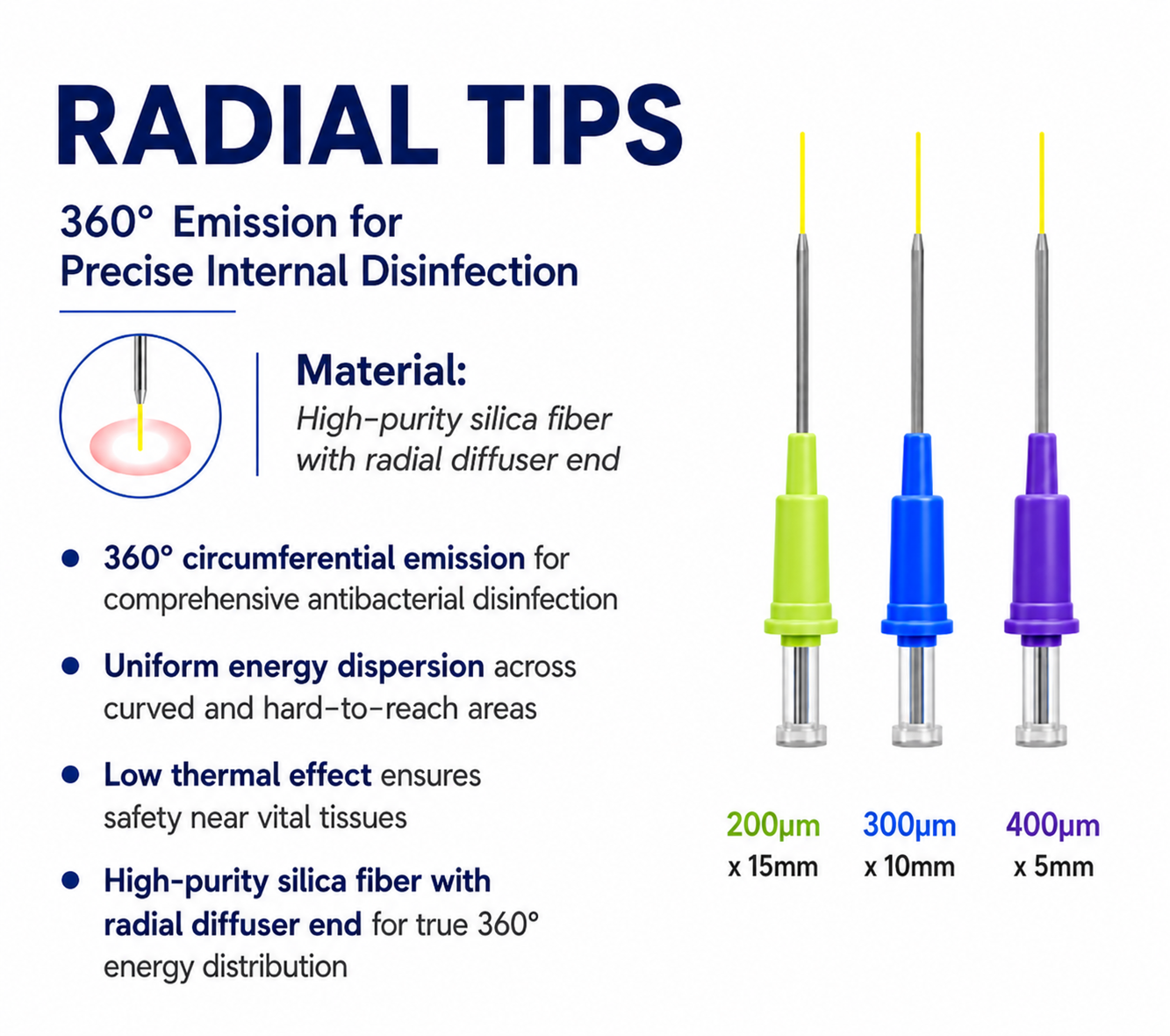

PIOON Radial Laser Tips — 360° Radial-Emission Bendable Dental Laser Tips • 5 Pack

360° Radial-Emission Bendable Dental Laser Tips

Single-use radial diffuser tips delivering true 360° circumferential laser emission for precise internal disinfection of root canals and hard-to-reach intraoral sites.

High-purity silica fiber  ·  360° radial emission  ·  SMA905 connector  ·  Single-use  ·  Low thermal effect

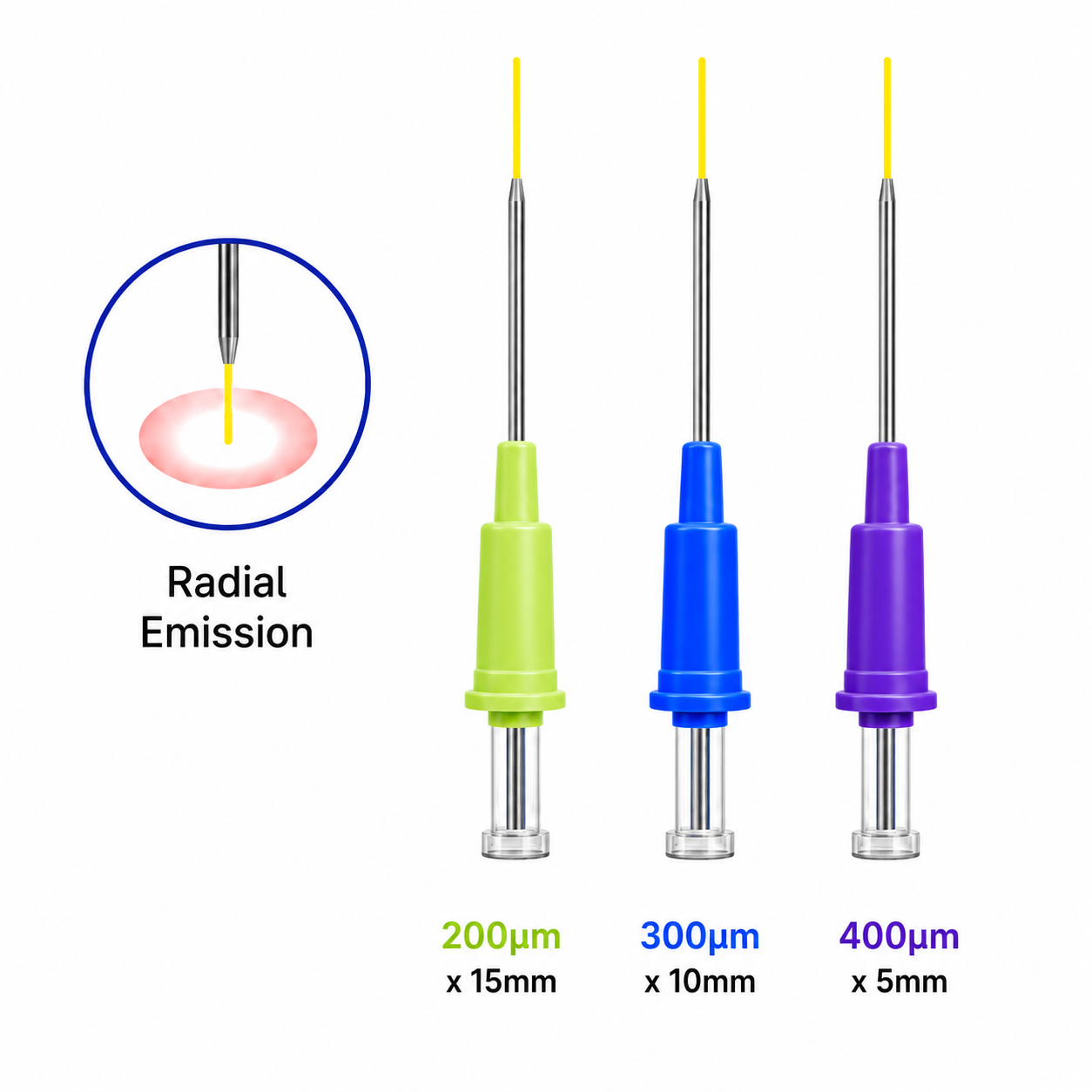

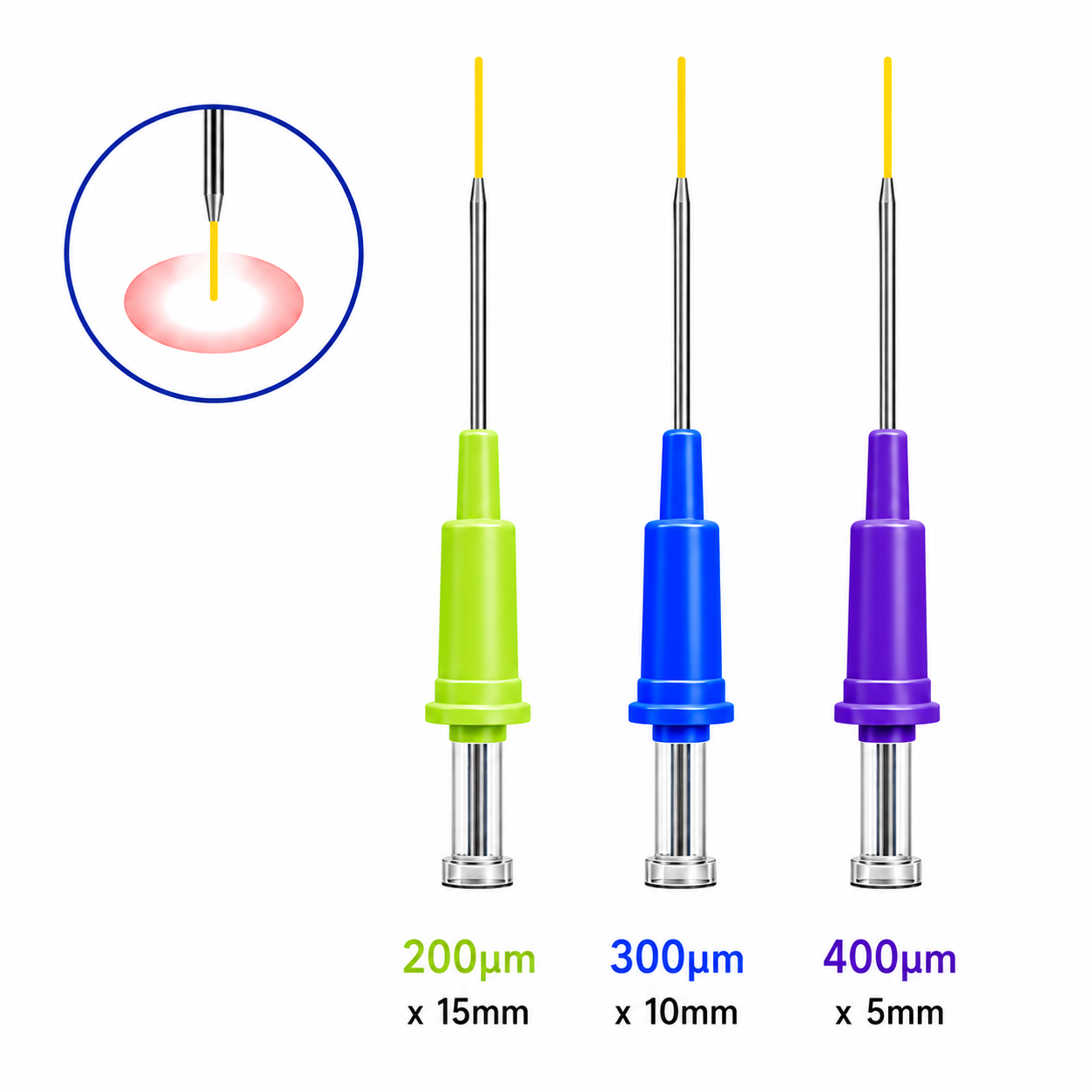

Tip Configurations

Each diameter ships at a fixed length optimized for its intended clinical application.

• 200 µm × 15 mm — Narrow profile for fine endodontic canals requiring maximum reach
• 300 µm × 10 mm — Mid-range diameter for standard root canal disinfection
• 400 µm × 5 mm — Wider fiber for higher energy delivery in shorter access sites

How Radial Tips Work

Unlike standard forward-emission tips that direct laser energy in a single direction, Radial Tips feature a radial diffuser end that disperses energy uniformly in all directions simultaneously. This 360° circumferential emission ensures the full inner surface of a root canal or cavity receives consistent laser exposure — including curved anatomy and areas inaccessible to a forward-pointing tip.

The low thermal effect of radial energy dispersion makes these tips well-suited for use in close proximity to vital tissues where minimizing collateral thermal impact is a clinical priority.

Clinical Applications

Radial Tips are purpose-built for internal disinfection procedures where complete circumferential coverage is essential.

• Root canal disinfection — 360° emission contacts the full canal wall surface simultaneously, supporting comprehensive antibacterial decontamination during endodontic treatment.
• Curved and hard-to-reach canals — Uniform energy dispersion reaches areas that forward-emission tips cannot reliably access, including lateral canals and curved anatomy.
• Periodontal pocket disinfection — Radial emission treats the full pocket circumference in a single pass, reducing procedural time compared to directional techniques.
• Implant site disinfection — Precise internal laser decontamination of implant osteotomy sites and peri-implant tissues prior to placement or during treatment of peri-implantitis.
• Antibacterial photodynamic therapy (aPDT) — When used with the 650 nm wavelength and a photosensitizer, radial emission provides full-circumference light activation for effective aPDT in narrow internal sites.

Product Highlights

• True 360° circumferential emission — The radial diffuser end disperses laser energy uniformly in all directions for comprehensive antibacterial disinfection of the full canal or pocket surface.
• Uniform energy dispersion — Consistent output across curved anatomy and hard-to-reach areas where forward-emission tips leave gaps in coverage.
• Low thermal effect — Radial energy distribution reduces localized heat buildup, ensuring procedural safety near vital tissues including the periodontal ligament and surrounding bone.
• High-purity silica fiber — Consistent energy transmission from handpiece to diffuser tip across all supported wavelengths without degradation.
• Single-use per-patient — Individually sealed peel-pack packaging eliminates cross-contamination risk and removes sterilization requirements for the tip itself.
• Tri-wavelength compatible — Works across all three UTU3-G7 wavelengths — 450 nm, 650 nm, and 980 nm — enabling photobiomodulation, aPDT, and thermal disinfection from the same tip platform.
• Optional add-on — Radial Tips are sold separately from Standard Tips, allowing practices to stock them selectively for endodontic and disinfection-focused workflows.

Radial Tips vs. Standard Tips

• Standard Tips — Forward emission · Best for incision, excision, coagulation, ablation, and sulcular access
• Radial Tips — 360° circumferential emission · Best for internal disinfection, root canals, and full-surface pocket decontamination

Both tip types use the same SMA905 connector and are compatible with the same PIOON laser systems.

Technical Specifications

Every tip ships pre-initiated and factory-cleaved — ready to connect and treat without additional preparation steps.

• Material: High-purity silica fiber with radial diffuser end
• Emission type: 360° circumferential radial emission
• Available diameters: 200 µm · 300 µm · 400 µm
• Available lengths: 15 mm (200 µm) · 10 mm (300 µm) · 5 mm (400 µm)
• Connector type: SMA905
• Initiation: Pre-initiated, factory cleaved
• Reuse: Single-use / per-patient
• Compatible wavelengths: 450 nm · 650 nm · 980 nm
• Thermal effect: Low — designed for safety near vital tissues
• Packaging: Individually sealed, peel-pack
