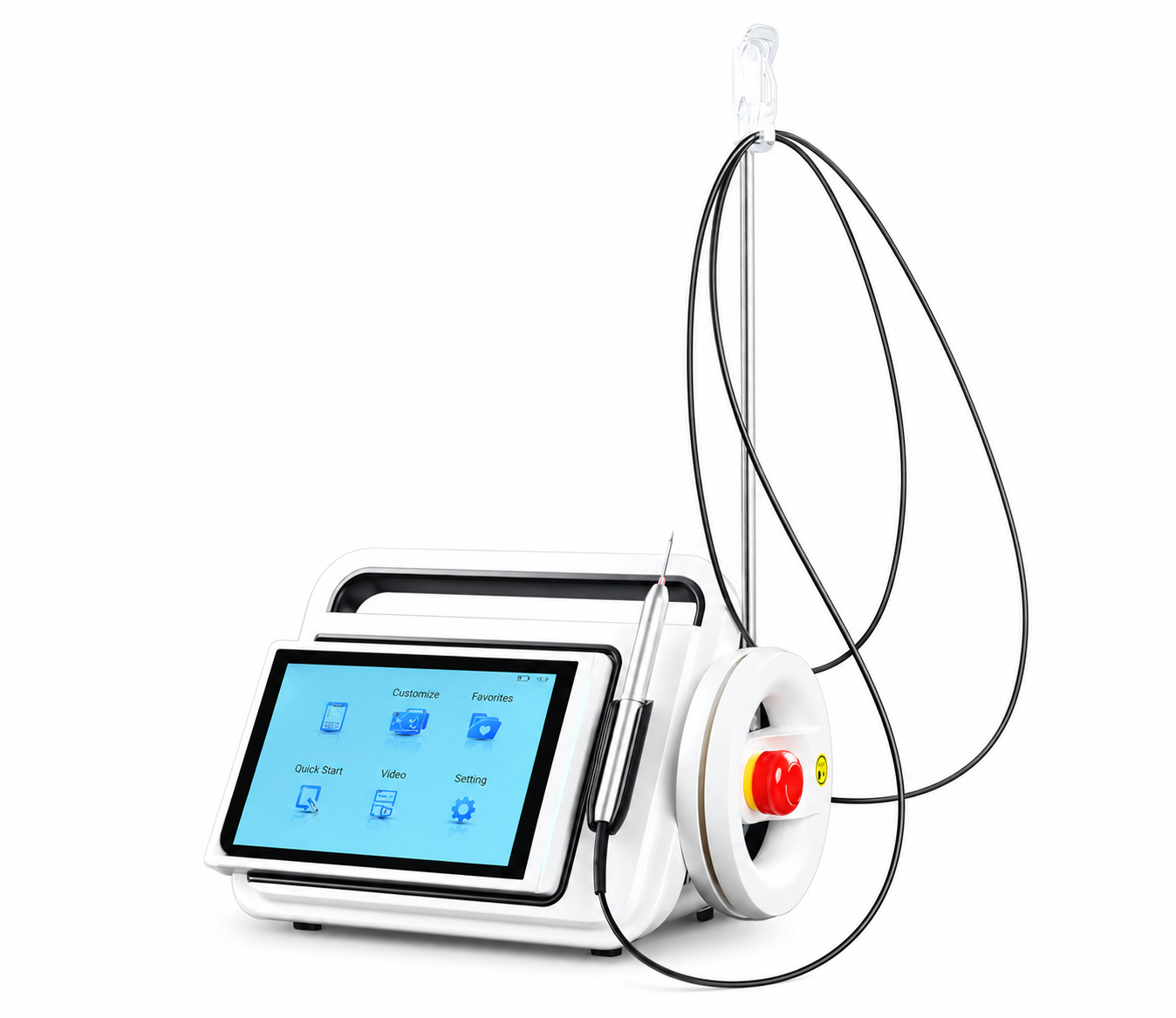

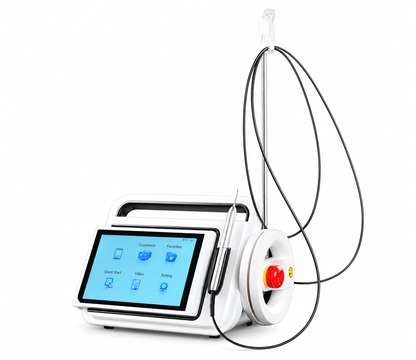

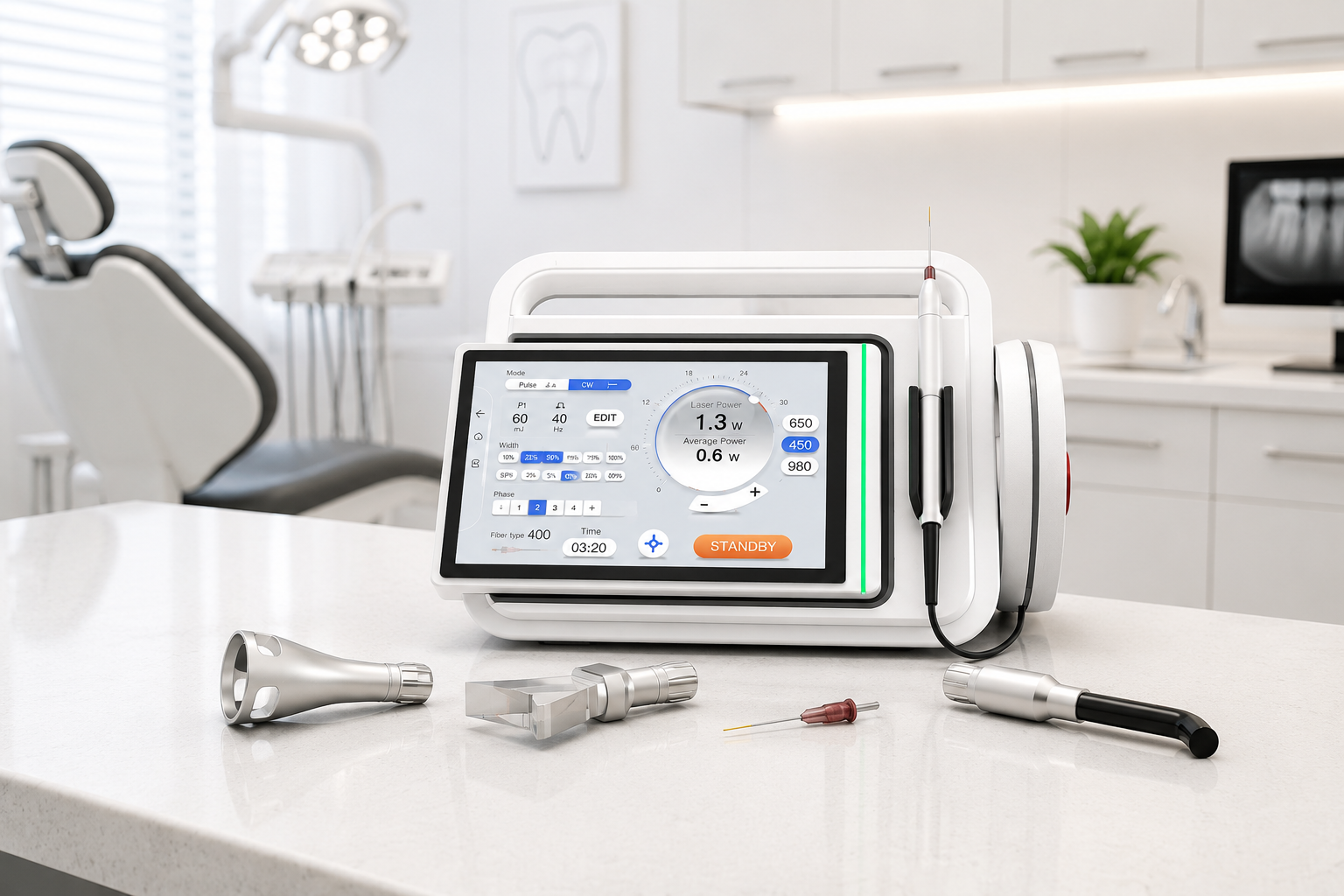

PIOON UTU3 G7 Multi-Wavelength Dental Diode Laser | 450nm/650nm/980nm

The Laser You Deserve. The One You've Been Waiting For.

There's a reason experienced clinicians go quiet when they see the UTU3 G7 for the first time. Not because it's complicated. Because it isn't. Because everything they've been quietly wishing for actually exists. Because everything that made them reach for the old workaround or cringe over the limitation, is simply gone.

Three wavelengths. One device. No compromises.

The UTU3 G7 pairs 450nm blue, 650nm red, and 980nm near-infrared into a single platform so clinically complete, so intelligently designed, that it doesn't feel like an upgrade from other dental lasers — it feels like those lasers were a rough draft.

This is the finished version.

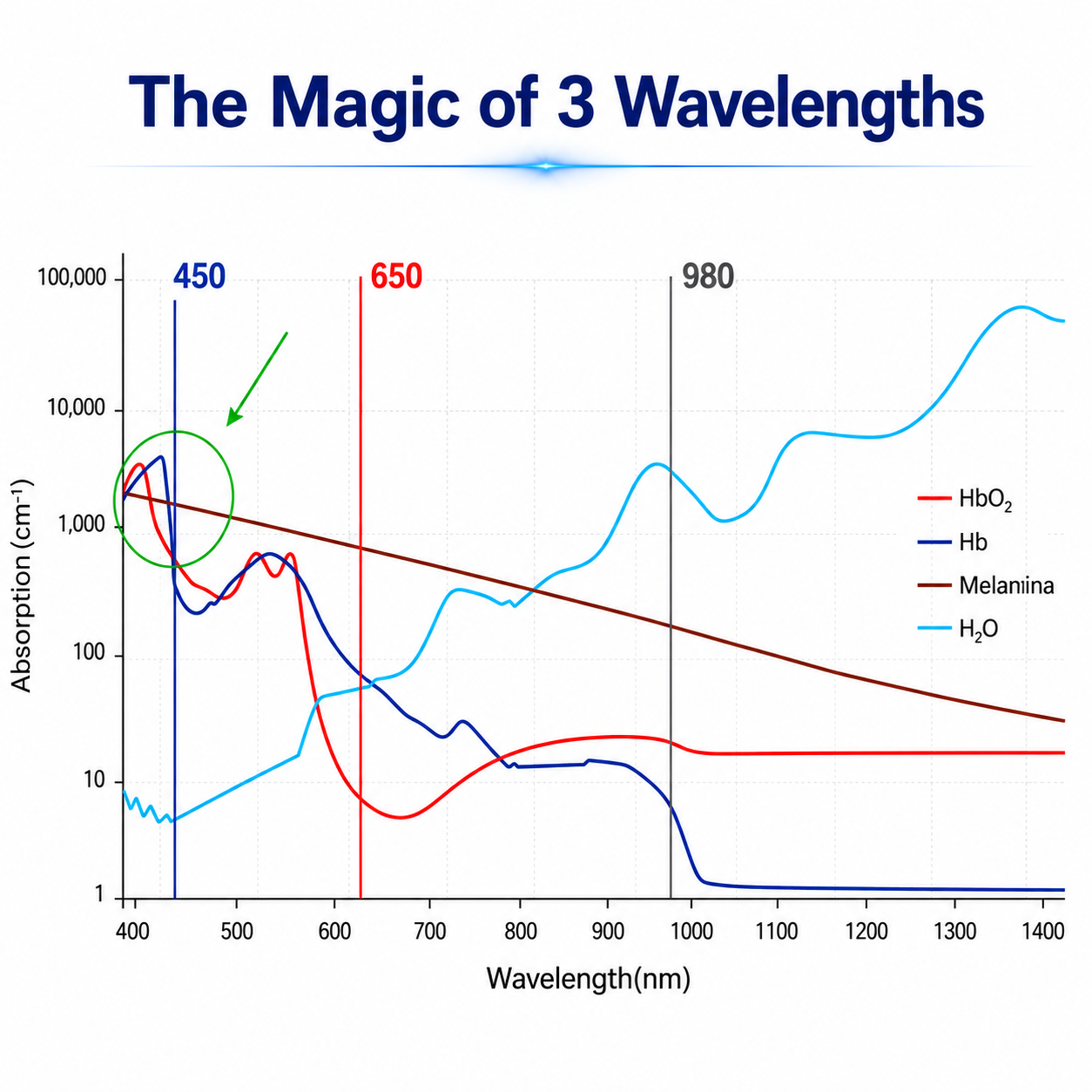

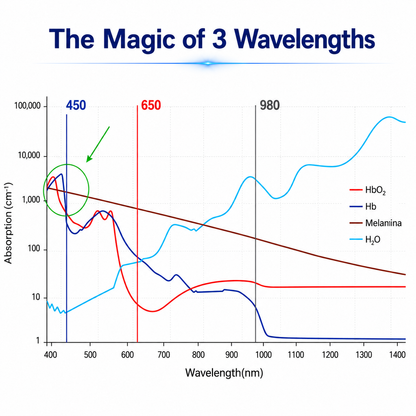

Three Wavelengths. Every Procedure.

Most dental lasers make you choose. The UTU3 G7 makes you capable.

• 450nm Blue — Cuts soft tissue with surgical precision. Absorbed aggressively by hemoglobin, which means the field stays clear, thermal spread stays minimal, and your patient barely knows you've started. This is the wavelength that makes scalpels feel primitive.
• 650nm Red — Your post-op partner. Low-level laser therapy that accelerates healing, quiets inflammation, and manages pain from the moment the procedure ends. The wavelength that turns skeptics into believers after the first post-op call that never comes.
• 980nm Near-Infrared — The workhorse. Deep tissue penetration, exceptional hemostasis, and antibacterial effects that make it indispensable in periodontal therapy, endodontics, and implant care. Available at 12W, with an 810nm interchangeable option at 10W for clinicians who want even greater flexibility.
• 980nm + 650nm Combined Emission — A dual-wavelength synergy mode that broadens the therapeutic scope of every treatment session and delivers results neither wavelength achieves alone.

Ai Assistant That Actually Helps

Every dental laser company will tell you their software is smart. The UTU3 G7 shows you what smart actually looks like.

57 Built-In Clinical Presets covering 8 treatment categories — already calibrated, clinically validated, and ready to go. Each preset carries its own coaching video, accessible directly from the treatment screen. Not in a manual. Not on a website you'll forget to visit. Right there, while your hand is on the handpiece.

Two Modes for Every Clinician

• Quick Mode — simplified interface, one-touch parameter control. Perfect for high-volume days when you need the laser to stay out of your way.
• Expert Mode — full access to every parameter: power, wavelength, pulse width, emission mode, countdown timer. Every variable, every edge case, fully adjustable.

It Learns Your Habits. Use any preset more than six times and the system auto-generates a personalized Quick Presets shortcut — your most-used protocols one tap from Ready state, every single day.

Save Your Own Protocols. Build a custom treatment and save it under your own category name. Your protocols. Your outcomes. Your library.

Post-Treatment Evaluation Logging. After every emission, the system prompts you to rate the outcome. Over time, you build a personal record of what works — without a single paper chart.

Built for the Room

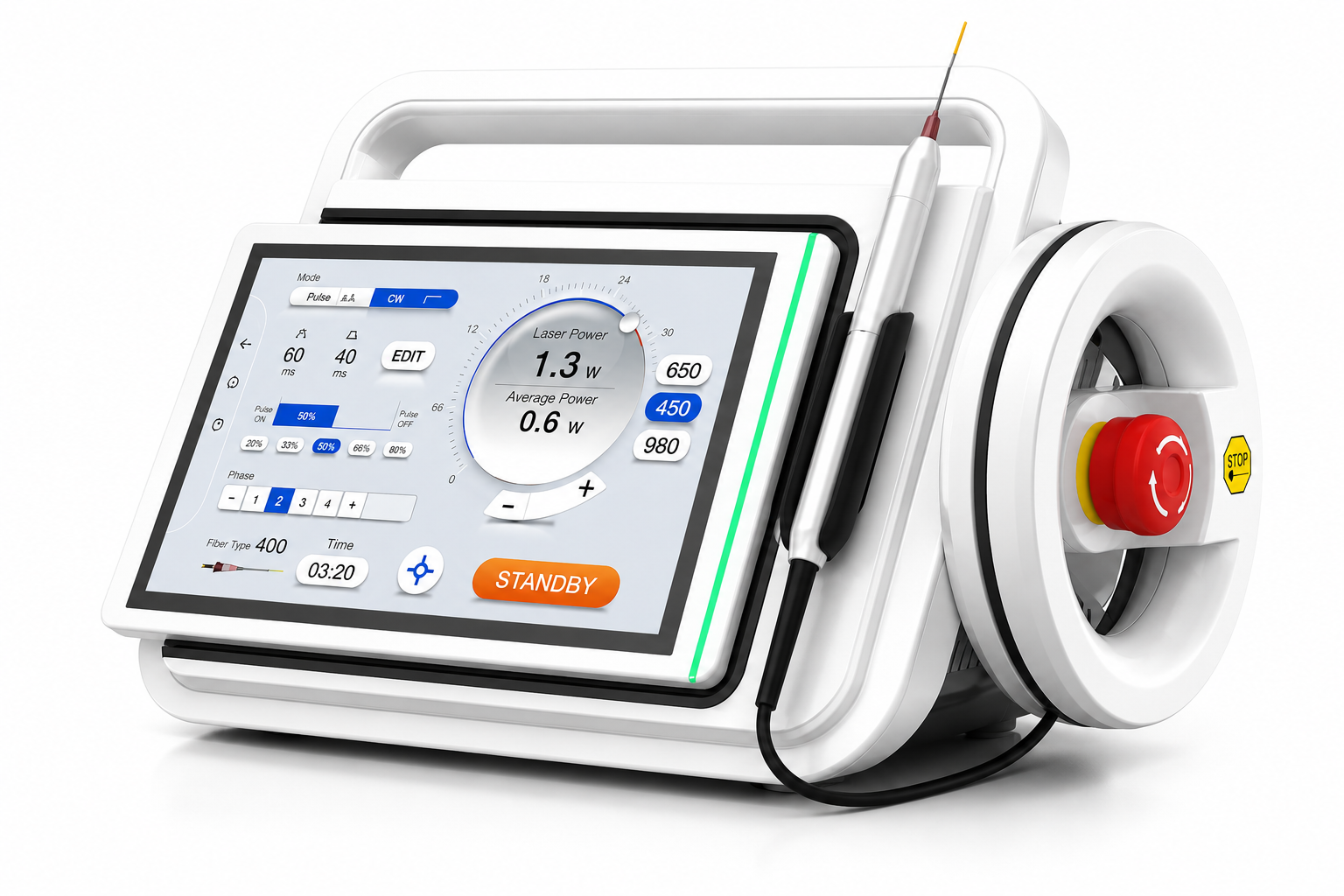

• A 2K HD 7-inch Retina Touchscreen that is FULL HD 1920 X 1080 and simply the best you will find for a dental operatory. Large enough to read at a glance. Responsive enough to use with a gloved hand.
• Wi-Fi + Bluetooth. The UTU3 G7 connects to your network automatically on every startup. Software updates install over the air. The Bluetooth foot pedal pairs from the interface. Your device stays current without a technician visit.
• Standby Mode. Set the handpiece down and the screen goes dark, the system rests. Pick it back up and it's live. It's a small thing until you realize how many times a day it happens — and how much battery it preserves.
• Soft Start Technology. Every power cycle is managed by a controlled ramp-up sequence that protects the software, the hardware, and the diode. It's the kind of engineering you never notice because it quietly prevents the problems you'd otherwise be calling about.

Built Like Nothing Else in the Room

The UTU3 G7 chassis is aircraft-grade aluminum-magnesium alloy — the same material conversation that happens in aerospace, not in a dental equipment catalog. It is rigid. It is durable. It is the first dental laser that feels like it belongs on the same counter as your best handpiece.

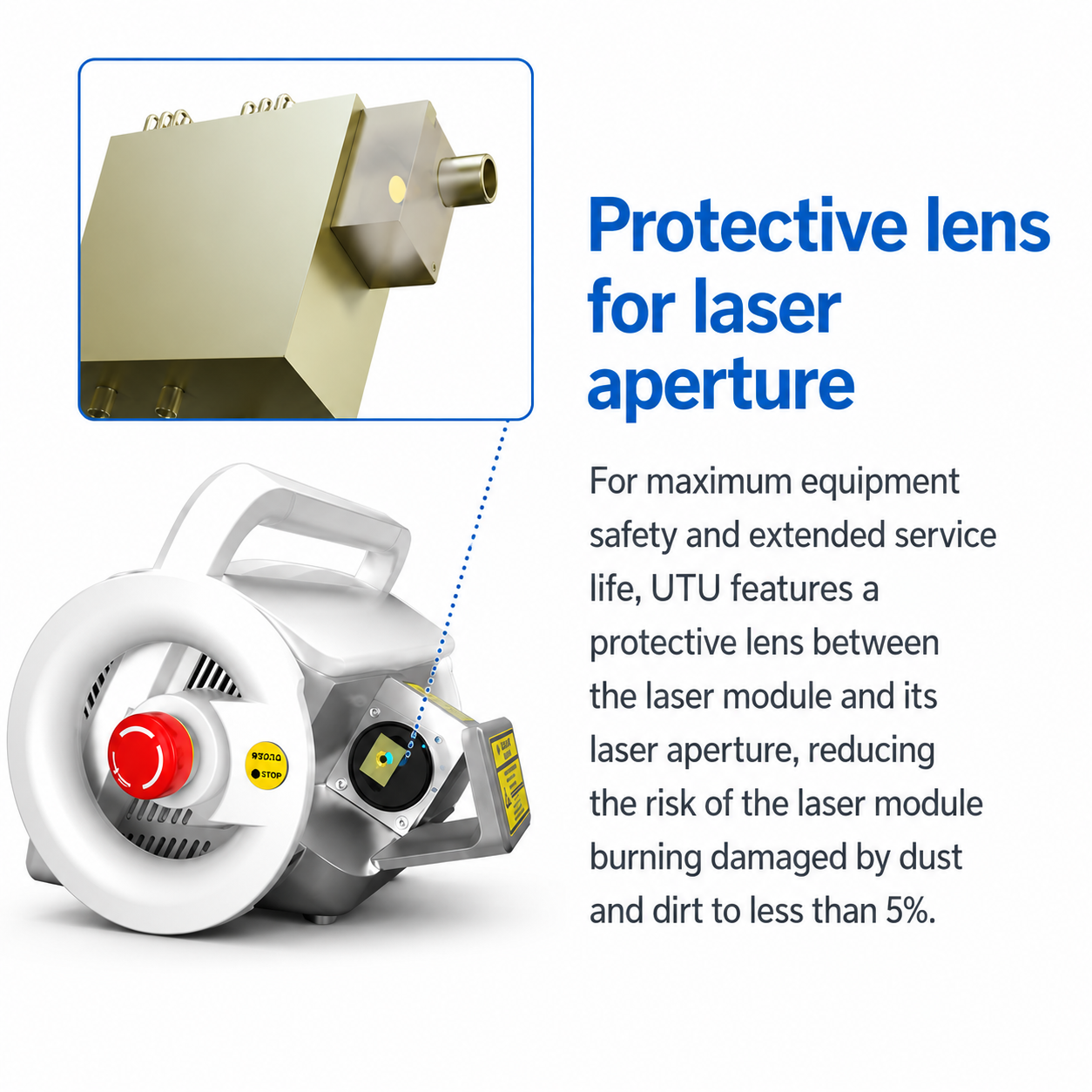

• Protective Lens on the Laser Aperture — a dedicated optical barrier between the laser module and the outside world reduces contamination damage risk by over 95%.

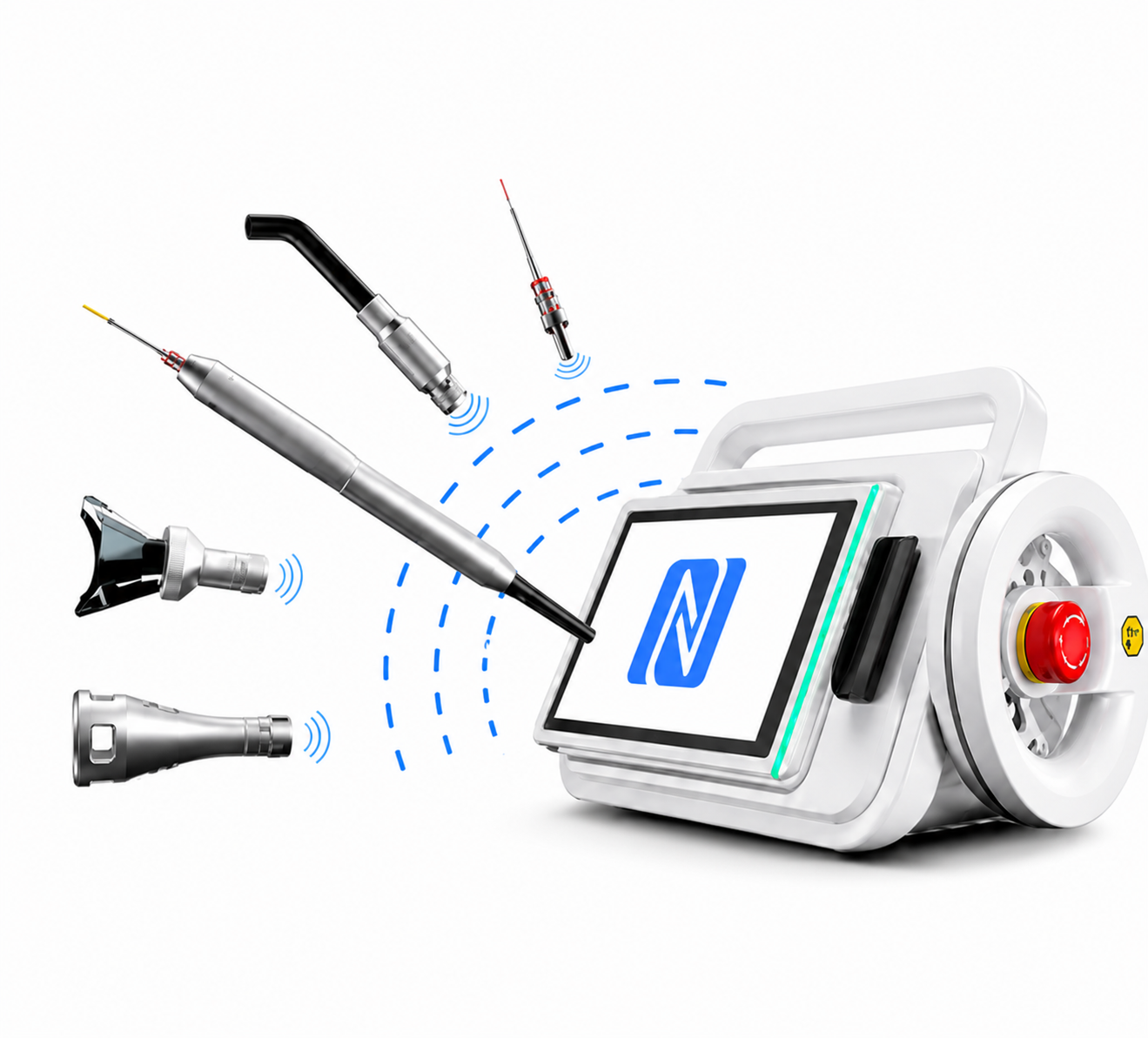

• NFC Fiber Identification System — The UTU G7's NFC chip detects when the handpiece has been returned to its storage holder and automatically triggers Standby Mode, turning off the screen and conserving battery until the handpiece is picked up again.
• 2KG. Lighter than most things on your bracket table. Fits anywhere.

Intelligent Safety That Has Your Back

• 3-Color LED Indicator — Green (standby), Yellow (alarm), Orange (laser emission). System status visible across the room, at all times.
• Triple Alert System — any safety condition triggers sound, LED, and an on-screen graphical warning simultaneously. Nothing is silent.
• Temperature Alarm — The UTU G7 features a high-temperature alarm that works in conjunction with PIOON's optional Thermal Sensing Glasses, which monitor the temperature of the treatment area in real time. When the laser is emitting, the glasses track surface temperature and trigger an alarm if it exceeds a preset threshold. Note: the handpiece itself does not contain a temperature sensor.
• Six Monitored Alert Conditions — high temp, low temp, remote interlock, foot switch, fiber connection, and emergency stop. The system never stops watching.
• Dual Activation Required — Ready button and foot switch, simultaneously. The laser does not fire by accident.
• Remote Door Interlock — connect the UTU3 G7 to your operatory door. The moment it opens while armed, the system shuts down. Walk-in protection, built in.
• Emergency Stop Button — physical hardware, requires a clockwise turn to reset. Can't be bumped back on.
• 4-Digit PIN Login — your device, your access. Up to four user passwords.
• Self-Testing Alert System — verify all three alert channels are working before any procedure, in seconds.

57 Presets. 8 Categories. One Device.

• Periodontics — Debridement, Pocket Curettage, Gum Biostimulation, Periodontal Therapy, Bacterial Count Reduction, Anti-Microbial Dynamic Therapy, Gingival Recession
• Endodontics — Root Canal Disinfection, Periapical Abscess, Pulpotomy, Direct Pulp Capping
• Prosthodontics — Troughing, Vestibuloplasty, Soft Tissue Crown Lengthening, Gingival Polyp
• Implantology — Implant Uncovering, Stage II Surgery, Laser-Assisted Peri-Implantitis, Laser Troughing for Impression, Biostimulation
• Aesthetics — Teeth Whitening, Gingivoplasty, Gingival & Lip Depigmentation, Aesthetic Contouring, Micro Coagulation, Lip Repositioning
• Photobiomodulation / LLLT — Desensitization, Aphthous Ulcers, Wound Healing, PDT, Herpetic Lesions, Angular Cheilitis, Post-Op Recovery, Post Periodontal Surgery, Anesthesia Support
• Pedodontics — Exposure of Unerupted Teeth, Pulpotomy, Tongue Tie, Enamel Welding
• Oral Surgery — Biopsy, Hemangioma, Granuloma, Hemostasis, Leukoplakia, Oral Papillectomies, Hyperplasia, Fibroma, Mucocele, Oral Submucous Fibrosis

Handpieces for Every Discipline

• PBM Therapy Handpiece — photobiomodulation-focused, flexible treatment head for post-op recovery and pain management for clinician's own health to treat wrist, arm, lumbar and neck
• Photobiostimulation Handpiece — tissue healing, inflammation reduction, enhanced clinical visualization
• TMJ Therapy Handpiece — targeted temporomandibular therapy with small-format tips
• Whitening Handpiece — quadrant-divided design; head width equals one dental quadrant for accurate, efficient coverage
• Multi-Functional Handpiece — universal fiber tip holder compatible across therapy handles

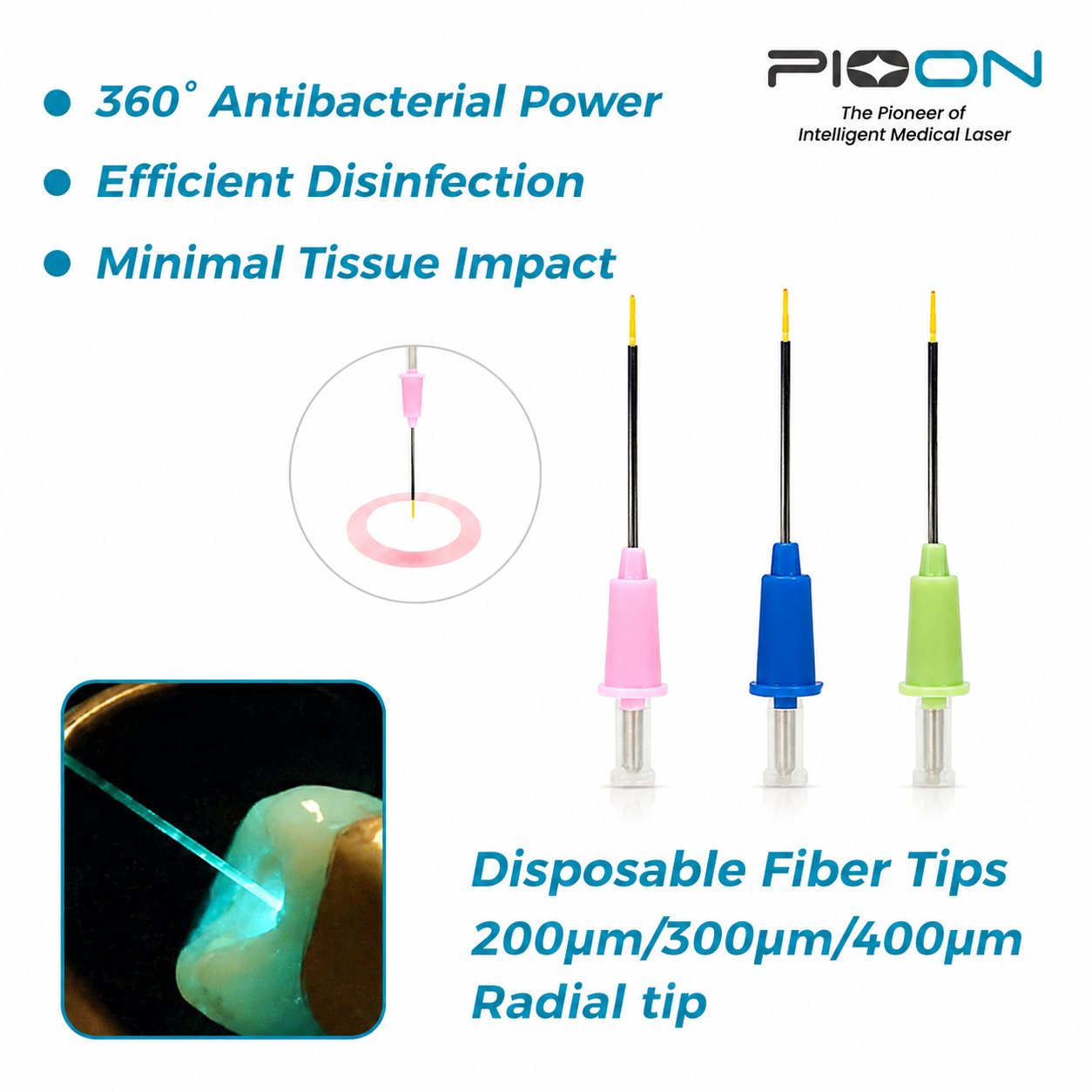

• Radial Fiber Tips — 360° laser emission for periodontal pockets, root canals, and peri-implant care
• Disposable Fiber Tips — 200μm, 300μm, 400μm diameters; lengths 5mm to 100mm
• Bluetooth Foot Pedal — wireless, medical-grade, tested to 500,000 cycles (optional)
• Laser Safety Goggles — CE-certified, German-made; flip-up 2.5X loupe option available

Technical Specifications

• Wavelengths: 450nm (Blue) | 650nm (Red) | 980nm (Near-Infrared)
• Power Output: 450nm @ 3W+ | 650nm @ 200mW | 980nm @ 7W+
• Aiming Beam: 650nm Red, <2mW, adjustable density
• Operating Modes: Continuous Wave (CW) | Pulsed | Super-Pulsed
• Pulse Width: Minimum 10µs; settable 25µs–999µs or 1–999ms
• Display: 2K HD 7" retina touchscreen
• Connectivity: Wi-Fi + Bluetooth
• Battery: 3,600mAh lithium-ion | 30 min full-power output
• Cooling: Dual fan + electronic cooling + multi-channel copper tube
• Input Voltage: 100–240V AC | 18VDC 5.55A
• Weight: 2KG
• Dimensions: 225mm × 150mm × 150mm
• Fiber Delivery: SMA905 Connector

What's Included

Model: UTU3-G7 (980nm @ 7W+ | 450nm @ 3W+ | 650nm @ 200mW)

• Online Training Included
• Safety Goggles — German-Made, CE-Certified × 2
• Safety Goggles — PIOON × 1
• Bluetooth Wireless Foot Switch (3m range) × 1
• Multifunctional Dental Handpiece Pro × 1
• Disposable Fiber Tips 200μm 15mm × 10
• Disposable Fiber Tips 300μm 10mm × 10
• Disposable Fiber Tips 400μm   5mm × 10
• Whitening Tip × 1
• TMJ Tip × 1
• Bio-Stimulation Tip × 1
• Fiber Cutter × 1
• Power Supply + Adapter × 1

Warranty

• Lifetime Diode Warranty
• 3-Year Manufacturer Warranty
• OTA software and preset updates via Wi-Fi
• Annual power calibration supported by authorized PIOON personnel

The UTU3 G7 is a Class 4 medical laser device intended for use by licensed dental professionals and trained clinical personnel. Professional training is required prior to clinical use.
