800 Exposures a Charge, 6.8 lb, and Leakage Six Times Inside the FDA Limit

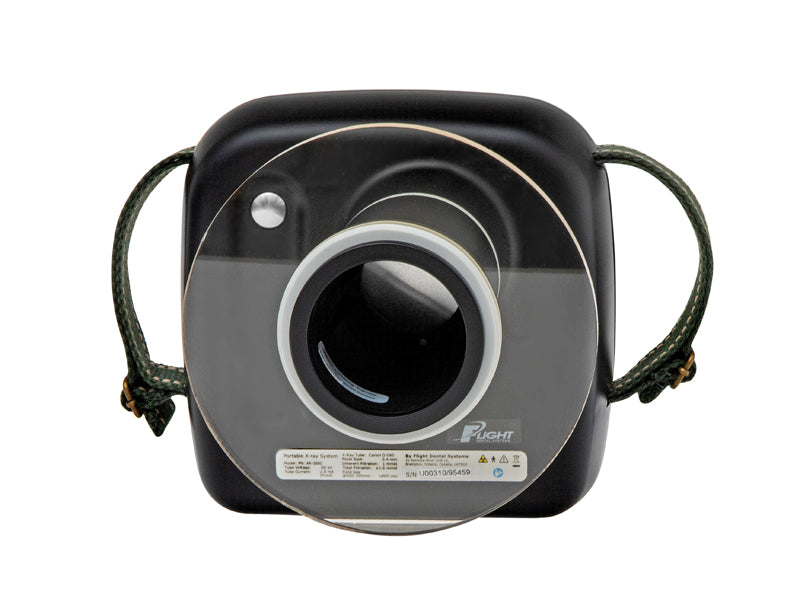

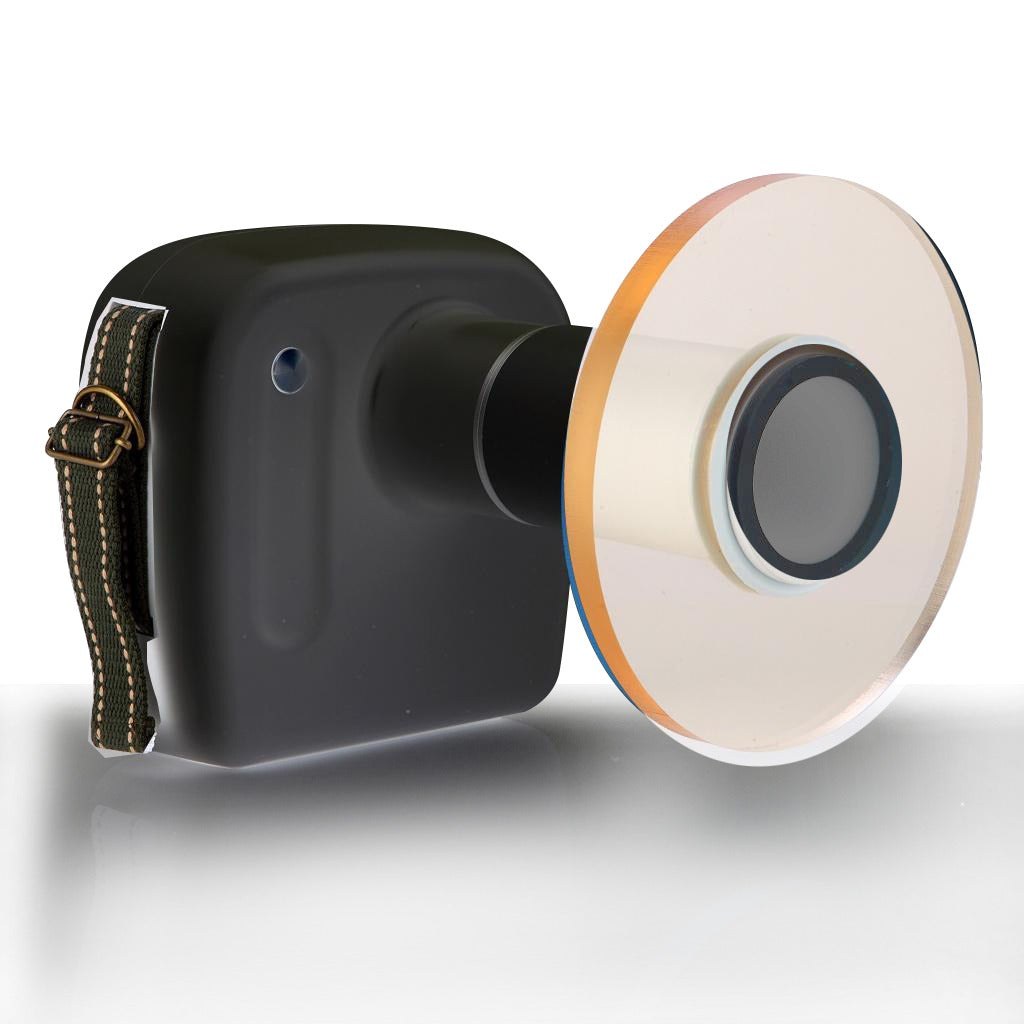

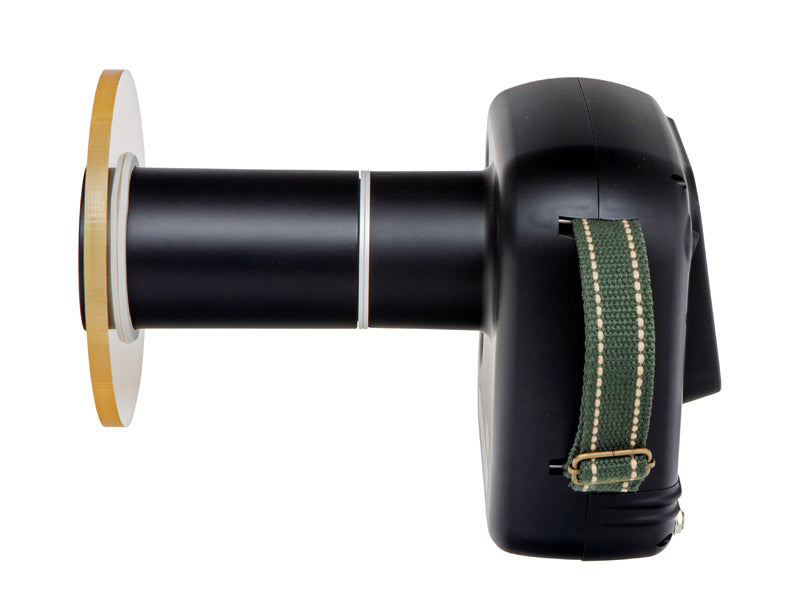

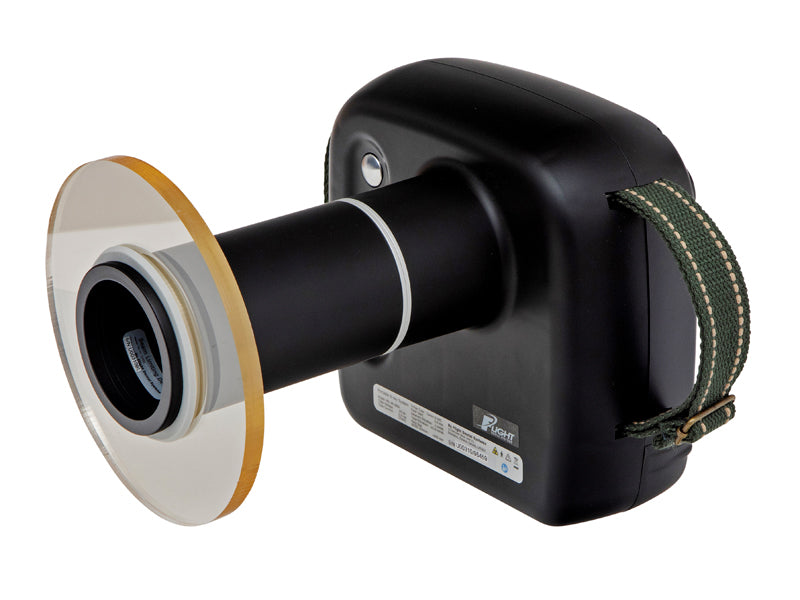

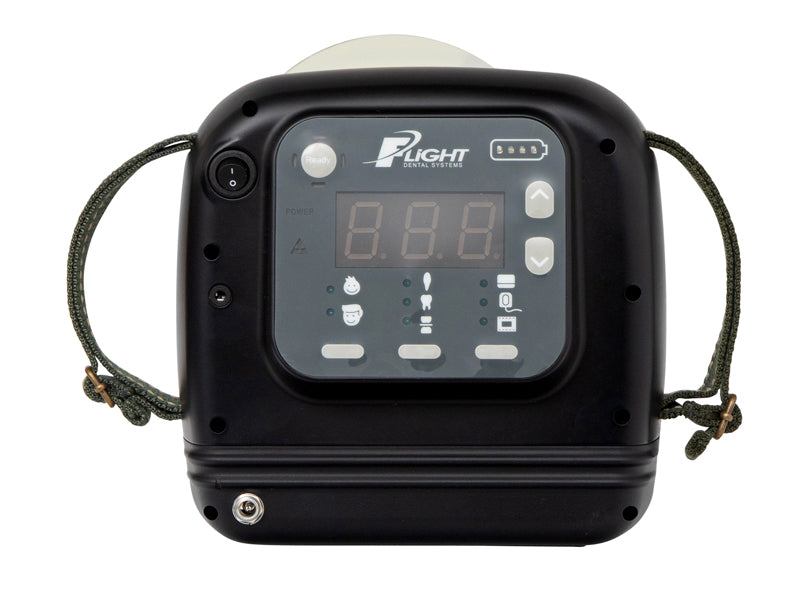

The Flight X-Vision XR-3800 is a handheld portable X-ray generator built around one idea: take the radiograph where the patient already is. No installation, no cord, no leaving the room. A 2,900 mAh Panasonic battery gives 800-plus exposures on a charge - about 40 full mouth series - and a Toshiba tube head made in Japan does the work.

Key Features and Benefits

• 0.04 mGy/hr leakage radiation - the FDA limit is 0.25 mGy/hr, so it runs more than six times inside the requirement
• Internal lead shielding and an external backscatter shield - protection from the primary beam and from radiation reflecting off room surfaces
• Greater than 1.6 mm total aluminium filtration - among the lowest leakage of any handheld device
• 800+ exposures per charge on a 2,900 mAh Panasonic battery
• Toshiba tube head, made in Japan
• Oiled cooling - shorter refractory time between exposures than air-cooled handhelds
• 6.8 lb with neck strap and hand straps - restraints included to prevent drops
• Works with film, digital sensors and phosphor plates
• No installation - portable and cordless

Clinical and Workflow Advantages

Staying in the room is the whole argument. With a wall-mounted unit the operator steps out, which means the patient can move between positioning and exposure - and retakes are where the real cost of radiography sits, in chair time and in dose. A handheld lets you hold position, watch the patient and fire, so a full mouth series runs faster with fewer repeats. It also goes where a wall unit cannot: operatories without a mounted head, hygiene rooms, mobile and outreach settings, and patients who cannot be moved.

Why Choose the Flight X-Vision

It competes directly with the DEXIS NOMAD at a materially lower price, using a Panasonic battery and a Toshiba tube head rather than unnamed components. Handheld radiography is regulated at state level and operator requirements vary - confirm your state's rules before purchase. DentalMarketplace is an authorized US dealer for Flight Dental Systems.

What's Included

• One XR-3800 X-Vision handheld X-ray unit with internal lead shielding
• External backscatter shield
• Neck strap and hand straps
• Carrying case
• Battery and charger
• Not included: sensors, phosphor plates or film - the X-Vision is the generator and works with the receptors you already use

Warranty and Support

1-Year Manufacturer’s Warranty. Warranty coverage is subject to the manufacturer’s terms and proper use, cleaning, and maintenance requirements. DentalMarketplace provides warranty coordination and post-sale support.

• Technical Specs

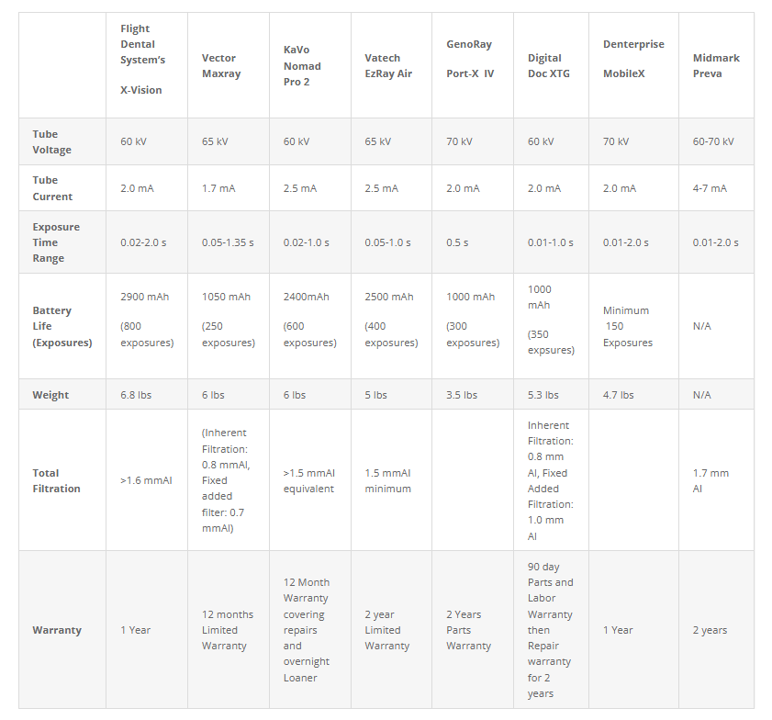

• Market Comparison
