Univet Flip-Up 6.0X ULTRA-HD Air-X Prismatic Loupes

Univet Flip-Up 6.0X ULTRA-HD Air-X Prismatic Loupes

$2,600.00
$3,250.00 20.0% Savings $2,600.00
Sale Sold out
  • SKU: KK84535.0A
  • Brand: Univet Loupes NA
  • Ships From: Univet North America
Visa

Why Dentists Nationwide Trust DentalMarketplace

Risk-Free Ordering with a 30-Day Money Back Guarantee
Quality Manufacturers & Authorized Distribution Channels
Fast U.S. Shipping with Real-Time Order Tracking
100% Best In Class Customer Service

Description

6.0X ULTRA-HD — the Highest Magnification Univet Builds Into a Ready-Made Flip-Up System

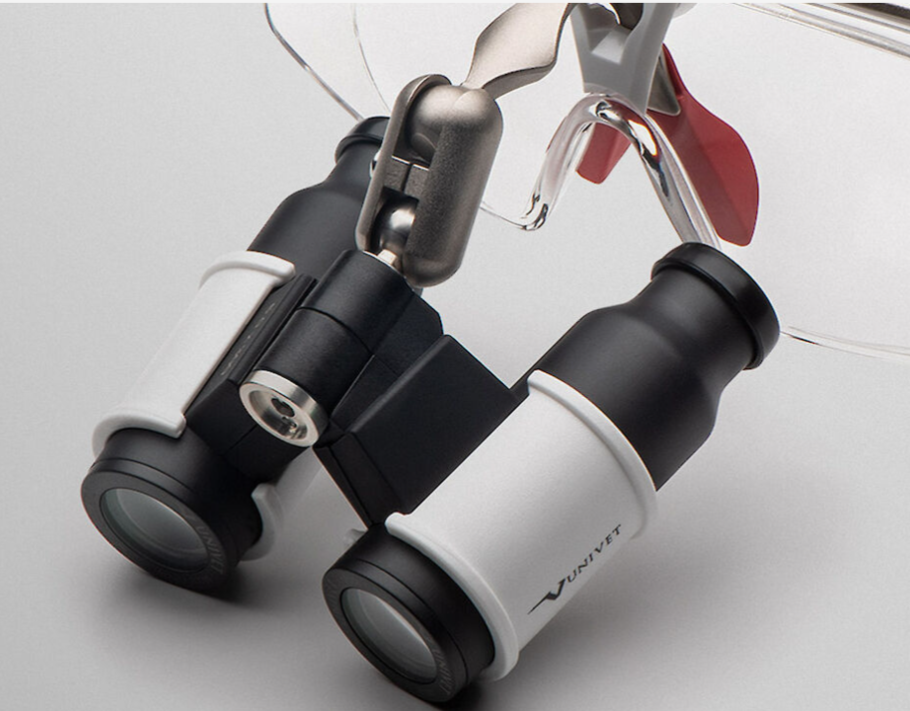

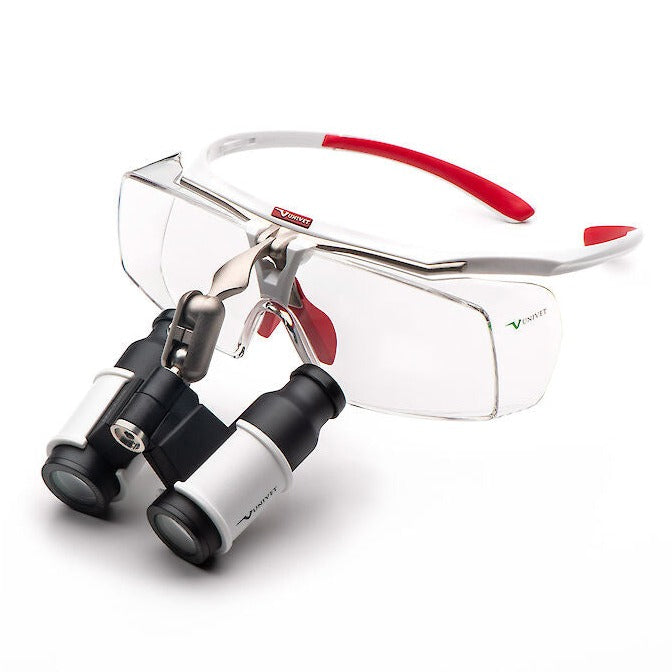

The Univet Flip-Up 6.0X ULTRA-HD Air-X Prismatic Loupes pair Univet's Prismatic ULTRA-HD optical system at 6.0X with a flip-up mount, so the magnification lifts clear of your line of sight the moment you need to speak to a patient or look at a chart. Working distance is chosen at the point of order from 300 mm to 400 mm, and the declination angle is adjusted on the frame rather than fixed at the factory.

Key Features and Benefits

  • Flip-up optics — raise the pods without removing the frame
  • Replaceable protective lens, so a scratched shield is a part swap, not a repair
  • Adjustable vertical axis and declination angle
  • No temple overlap, for stability and comfort over long sessions
  • Can be worn over prescription eyewear
  • Magnetic EOS headlight adapter included in the box

Clinical and Workflow Advantages

Magnification is a posture intervention before it is an optical one. Choosing the working distance that matches how you actually sit stops the forward lean that produces neck and shoulder load over a career, and the flip-up mount removes the habit of pushing loupes down the nose or taking the frame off between steps.

At 6.0X, prismatic ULTRA-HD optics are what make the image usable rather than merely large: the folded light path holds resolution and edge definition where a Galilean design of the same power would not. That matters most at canal orifices, margin lines, and any step where the decision is being made at the limit of what the eye can resolve.

Why Choose This Product

DentalMarketplace sells the North American product, fulfilled and shipped by Univet North America, with US support behind it. Univet Loupes Spa has manufactured optical systems in Rezzato, Italy for decades, and this is a ready-made system rather than a custom build, so it ships without an optical fitting appointment.

What's Included

  • Univet AIR-X frame with flip-up optical system
  • Replaceable protective lens
  • Magnetic headlight adapter for Univet EOS Wireless
  • Elastic retention band

Warranty and Support

Support is handled by Univet North America, who also supply replacement protective lenses and accessories..

Related Products

Technical Specifications

Univet Flip-Up 6.0X ULTRA-HD Air-X Prismatic Loupes

  • Brand: Univet
  • System: AIR-X
  • Optical design: Prismatic ULTRA-HD
  • Magnification: 6.0X
  • Working distances available: 300 mm, 350 mm, 400 mm
  • Mounting style: Flip-up
  • Frame / fit: AIR-X, White/Red, size 66□15, universal fitting
  • Protective lens: Replaceable
  • Declination adjustment: Adjustable vertical axis and declination angle
  • Prescription eyewear: Can be worn over prescription eyewear
  • Headlight compatibility: Magnetic adapter included for Univet EOS Wireless
  • Manufacturer: Univet Loupes Spa, Rezzato (BS), Italy
  • Ships from: Univet North America

Downloads & Documentation

Videos & Training

FAQs

Univet Flip-Up 6.0X ULTRA-HD Air-X Prismatic Loupes

Q: Which working distance should I order?

A: Measure from your eyes to the patient's mouth in your normal seated posture, then order the nearest listed distance. Most operators seated at a conventional chair measure between 400 and 450 mm; taller clinicians and those who sit further back usually need 500 mm. Ordering too short a distance forces you to lean in, which defeats the ergonomic reason for buying loupes in the first place.

Q: Can I wear these over my prescription glasses?

A: Yes. Univet lists compatibility with prescription eyewear as a standard feature of this frame, so the loupes can be worn over your own spectacles rather than requiring a separate prescription carrier.

Q: How does the AIR-X flip-up differ from a through-the-lens loupe?

A: The optics sit on a hinge in front of the carrier lens rather than being bored into it, so you can flip them up to talk to a patient or read a chart without removing the frame. Flip-up also lets the declination angle be adjusted after purchase, which through-the-lens designs fix permanently at the time of manufacture.

Q: Can I add a headlight later?

A: Yes. A magnetic headlight adapter is included in the box, and the Univet EOS Wireless headlight mounts to it. You can buy the loupes now and add illumination later without changing the frame.

Q: What is the difference between Galilean and prismatic optics?

A: Galilean systems use a simpler two-lens design and are lighter, with a wider field and easier reacquisition of external reference points; they are practical up to about 2.5X. Prismatic systems fold the light path through internal prisms, which is what makes higher magnification possible with usable resolution and edge definition. Above 3.0X, prismatic is the only design that holds image quality.

Q: Are these ready-made or custom-built to my pupillary distance?

A: These are Univet ready-made loupes. The interpupillary and declination settings are adjusted on the frame rather than fixed at the factory, so they ship without a custom optical fitting and are available immediately.

Q: Can the magnification be changed later?

A: No. The optical pods are matched to one magnification and one working distance. Choose the combination you will use for the majority of your day; clinicians who need a second power generally buy a second system rather than converting one.

Q: Is the protective lens replaceable?

A: Yes. Univet lists a replaceable protective lens as a feature of this frame, so a scratched or pitted shield can be swapped rather than sending the whole system back.

Q: Who is the manufacturer and where are they made?

A: Univet Loupes Spa, Via Giovanni Prati 87, Rezzato (BS), Italy. DentalMarketplace sells the North American product, fulfilled and shipped by Univet North America.

Q: Do you sell to individual clinicians as well as practices?

A: Yes. Orders ship to practices, DSOs, universities and individual clinicians anywhere in the United States, and every order is covered by the DentalMarketplace 30-Day Unconditional Money Back Guarantee.
