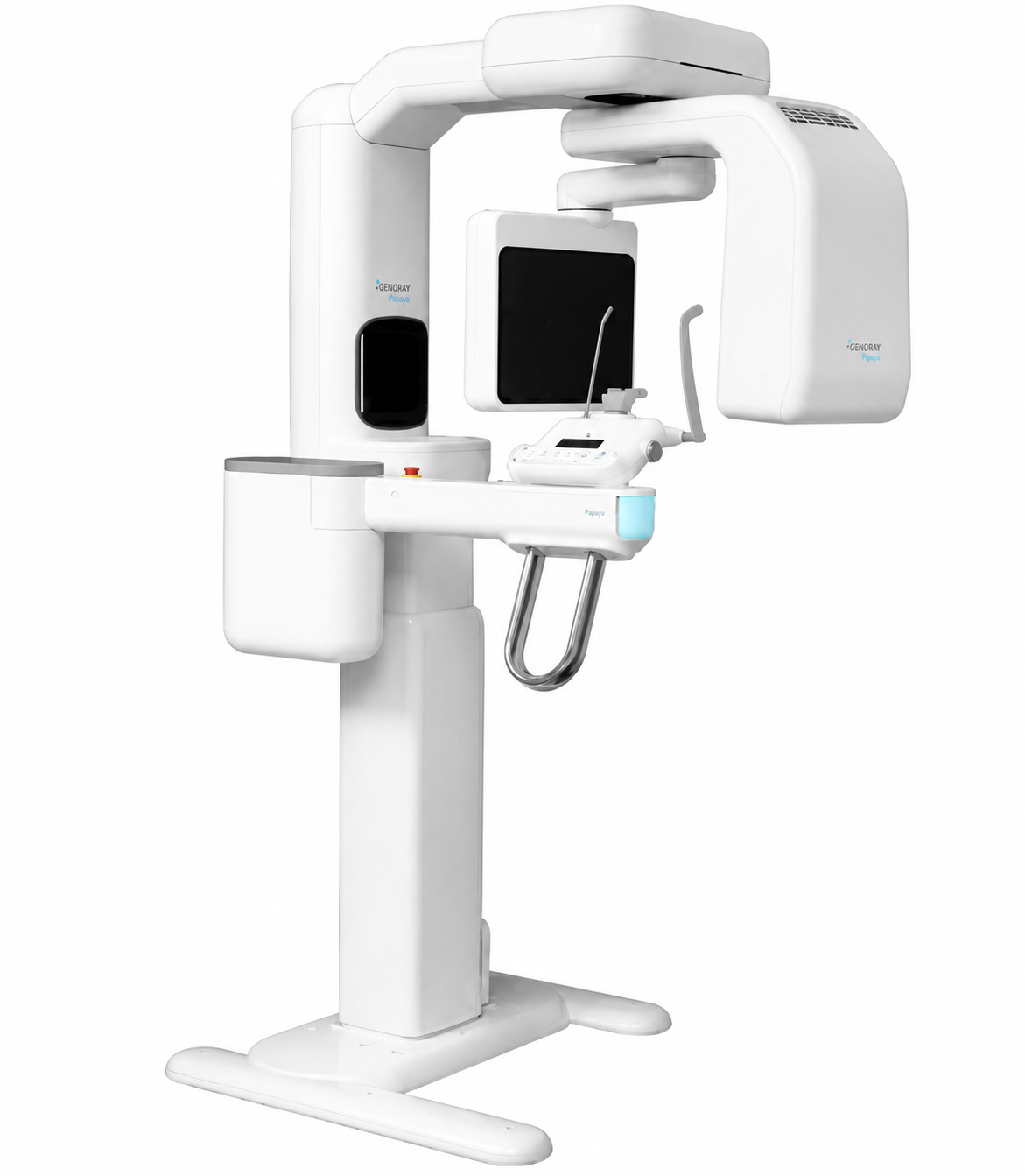

Genoray Papaya 3D Premium Plus | CBCT + Pan + Ceph + 3D Model Scanning 16x14 FOV
Genoray Papaya 3D Premium Plus | CBCT + Pan + Ceph + 3D Model Scanning 16x14 FOV
- SKU: PAPAYA 3D Premium Plus
- Brand: Genoray
- Ships From: Genoray America Warehouse
-
Need assistance? Talk to an Expert! Call Now 833-303-7399.
Couldn't load pickup availability
Why Dentists Nationwide Trust DentalMarketplace
Description
Description

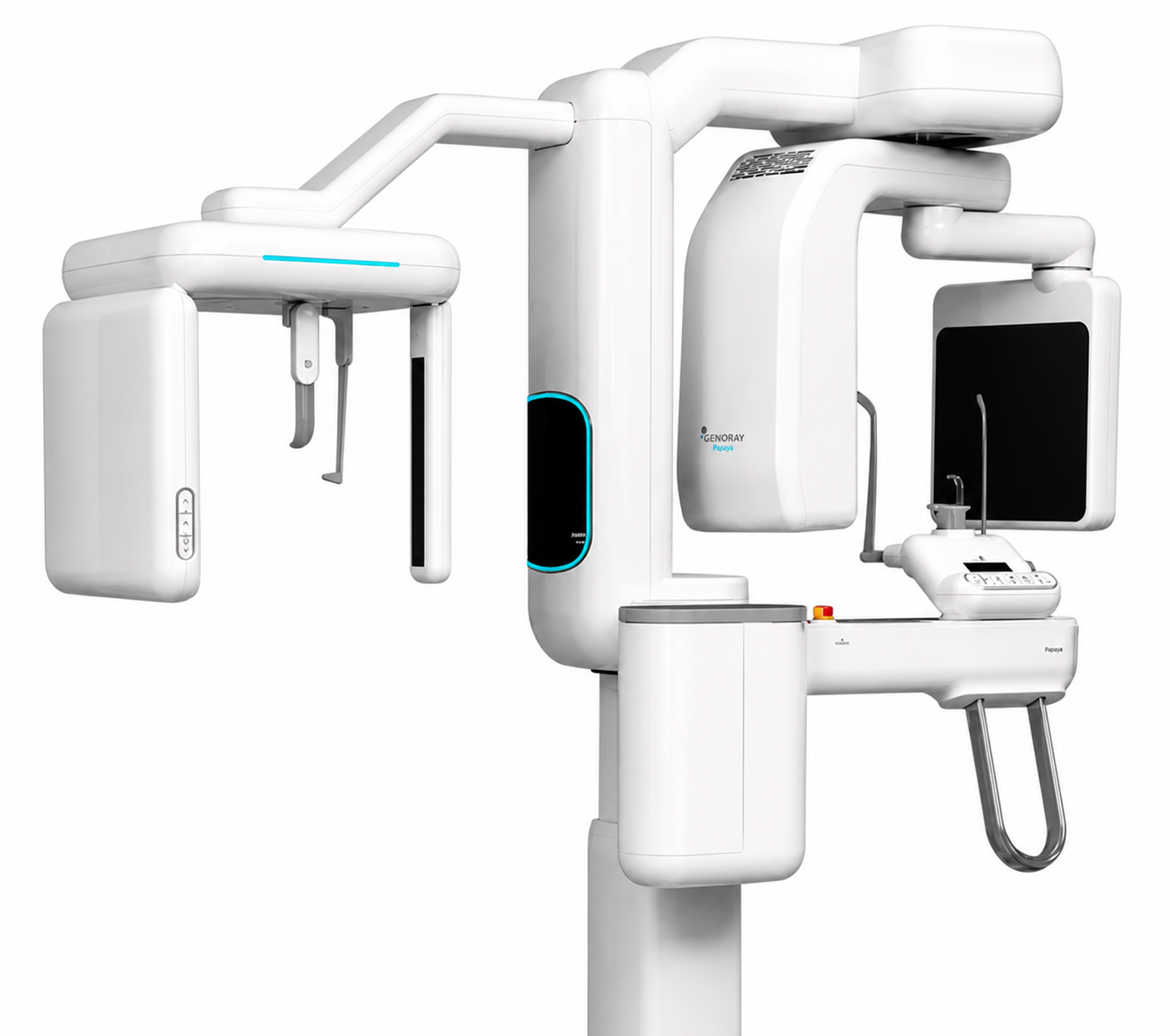

The Most Complete Multi-Sensor CBCT Imaging Platform Available at This Price Point
Practices that have seriously evaluated the premium CBCT market understand how quickly pricing escalates for fully integrated Pan + CBCT + Ceph + Model Scanning systems from major brands. Comparable Carestream, Planmeca, and Vatech configurations commonly exceed $80,000 once cephalometric capability, installation, software, and training are included.
The Genoray Papaya 3D Premium Plus delivers panoramic, CBCT, cephalometric, and integrated 3D model scanning capabilities in a single advanced multi-sensor platform — for $69,000 all-in with factory installation, onsite training, and THEIA imaging software included.
This is the system for practices that have done their homework. Clinicians and practice owners who have compared specifications, evaluated real-world workflow, and recognized that much of the price difference between systems reflects brand positioning rather than meaningful differences in everyday clinical capability. The Papaya 3D Premium Plus delivers advanced multi-sensor imaging, expanded large-volume diagnostics, and integrated workflow efficiency without the premium pricing structure commonly associated with top-tier imaging brands.
Advanced 4-in-1 Imaging Platform
The Papaya 3D Premium Plus combines CBCT, panoramic, cephalometric, Face Mode, and optional 3D model scanning into a single integrated imaging platform designed to simplify workflow while supporting a broad range of advanced diagnostic applications.
Dedicated multi-sensor architecture with automated sensor positioning helps streamline imaging procedures while supporting consistent image quality across:
- Implant planning
- Full arch rehabilitation
- Orthodontics
- Airway analysis

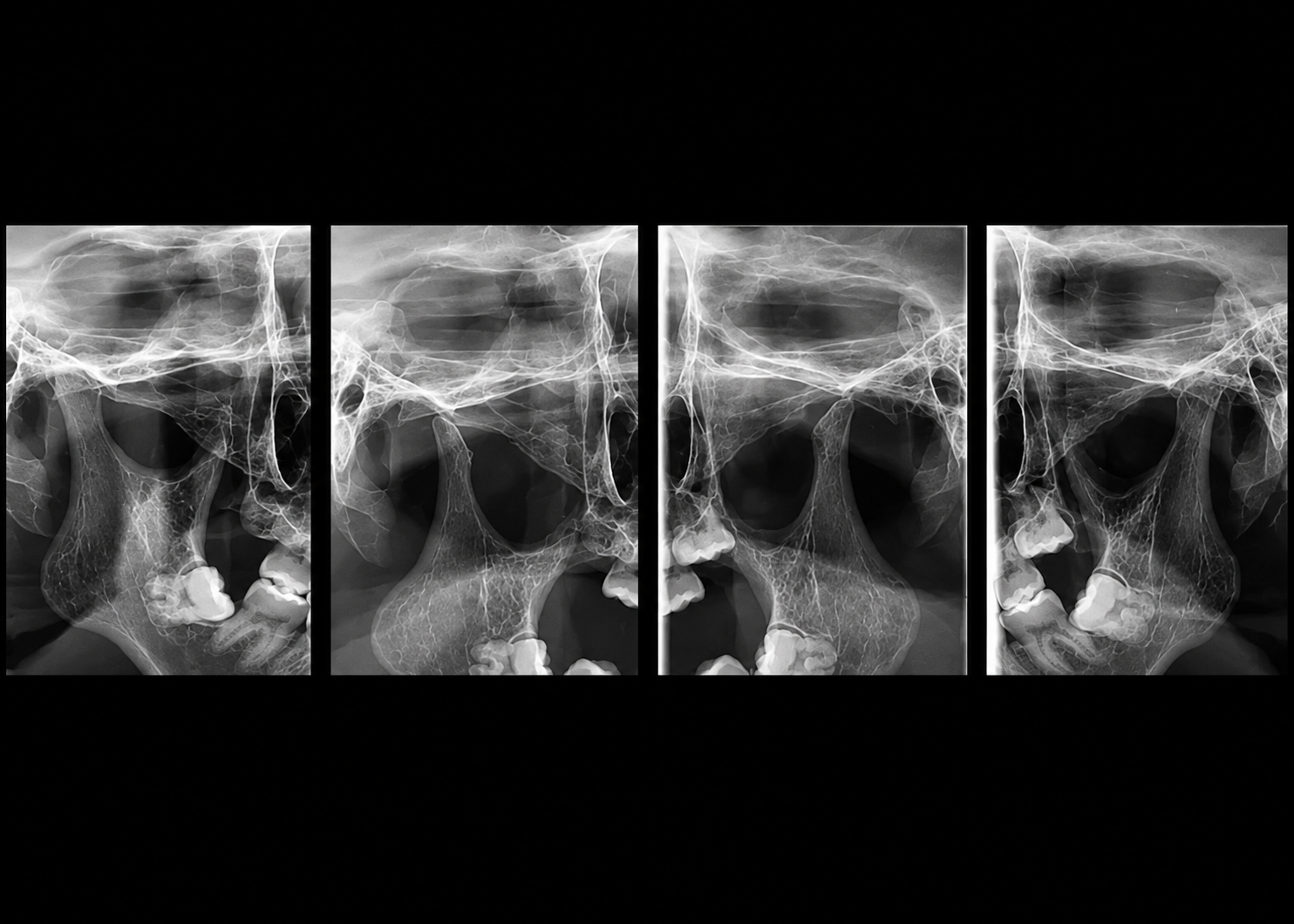

- TMJ evaluation
- Oral surgery
- Sinus imaging
- Maxillofacial diagnostics
- Facial analysis workflows
- Digital model scanning workflows
Large FOV CBCT + Expanded Cephalometric Imaging

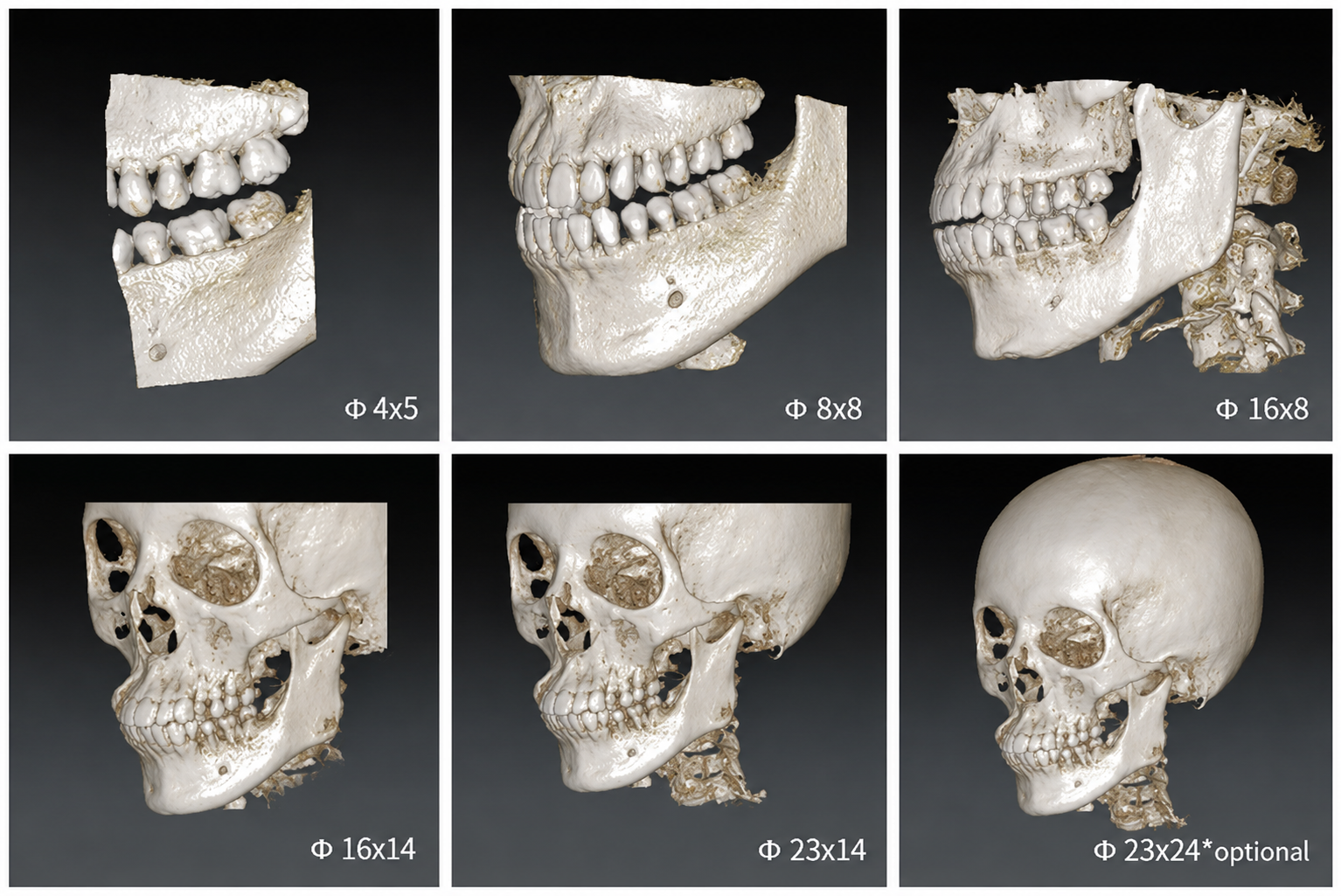

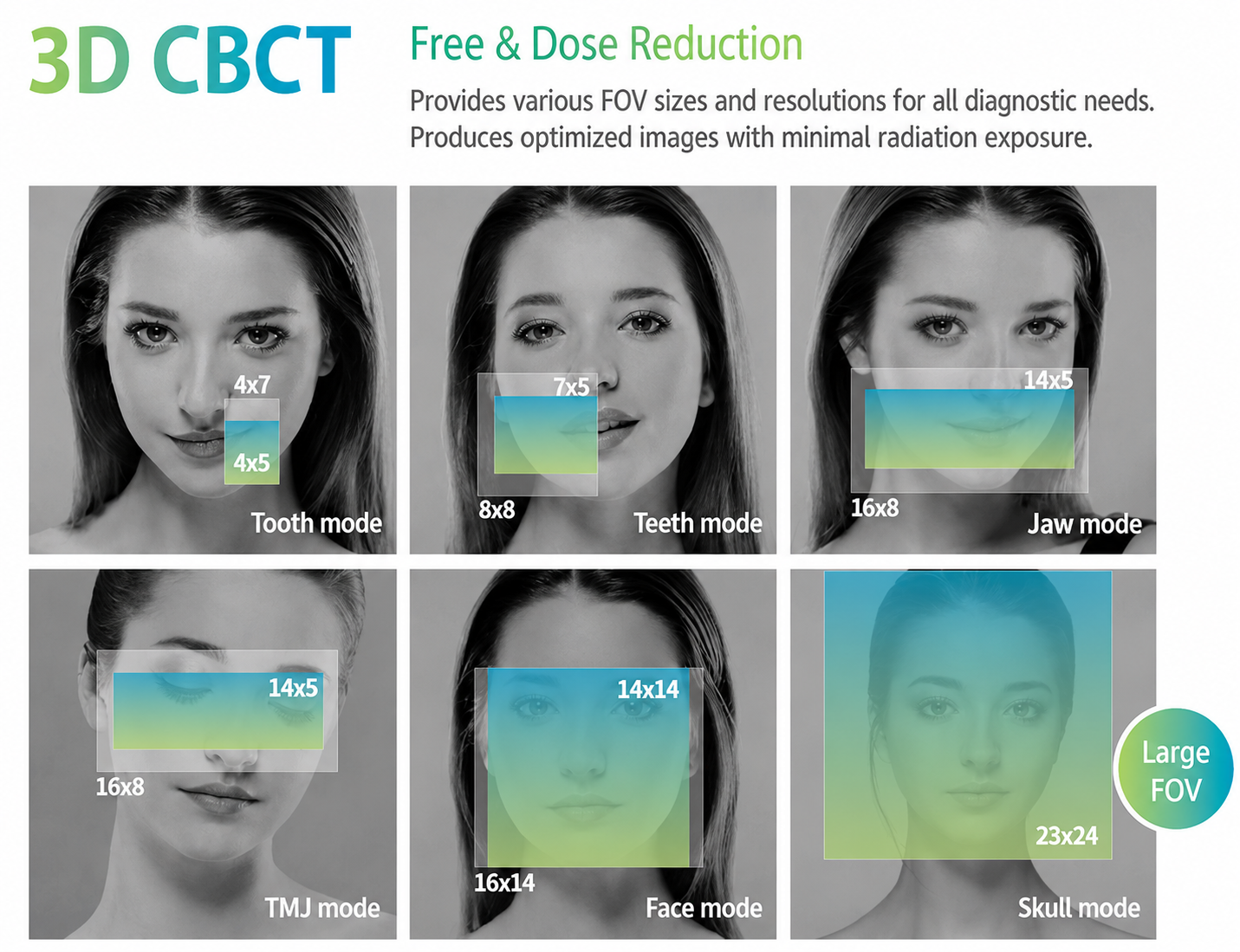

The Premium Plus supports CBCT imaging volumes up to Φ 16x14 cm for advanced airway, sinus, orthodontic, and maxillofacial imaging applications beyond standard jaw and implant workflows.
Integrated cephalometric imaging supports:
- 24x24 cm standard viewing mode
- 31x24 cm wide mode
Supported cephalometric programs include:
- Lateral
- AP
- PA
- Water’s View
- Submentovertex (SMV)
- Carpus
The Premium Plus also supports Face Mode imaging for enhanced facial and orthodontic diagnostic workflows.
Intelligent Workflow Automation

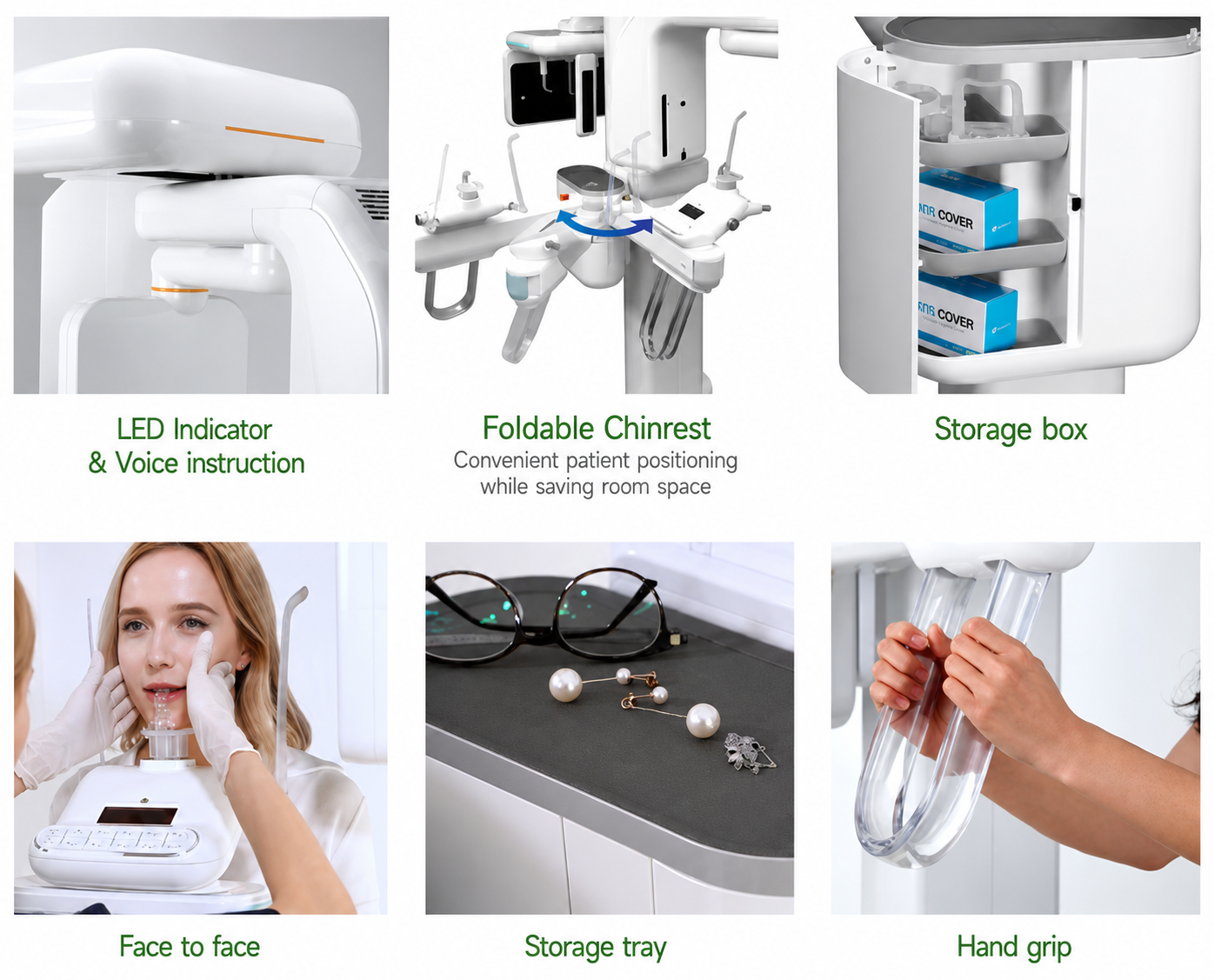

The Papaya 3D Premium Plus is engineered to improve imaging efficiency through advanced workflow automation and patient positioning technologies including:
- Automated sensor positioning
- Smart patient positioning memory
- Multi-focus panoramic imaging
- Voice guidance system
- LED status indicators
- Foldable chinrest design
- Wheelchair accessibility
- One-touch hand switch operation
The open-architecture DICOM-compatible software platform supports implant planning, airway analysis, orthodontic workflows, surgical planning, and third-party imaging integration.
What’s Included
- Papaya 3D Premium Plus Imaging System
- CBCT Imaging
- Panoramic Imaging
- Cephalometric Imaging
- Face Mode Imaging
- Optional 3D Model Scanning Capability
- Imaging Workstation PC
- Monitor
- Keyboard and Mouse

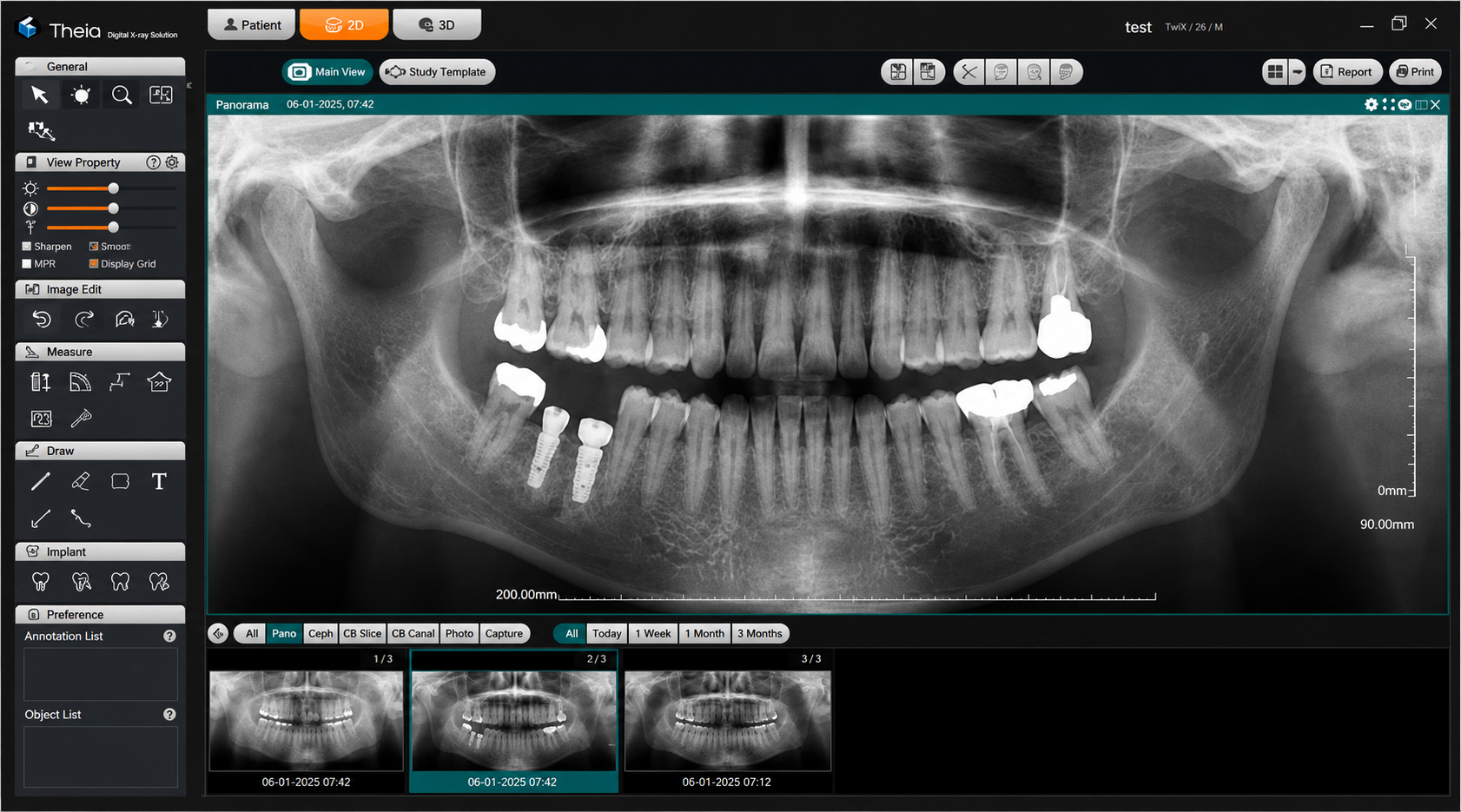

- THEIA Imaging Software
- Factory Installation
- Onsite Training
- Manufacturer Warranty
- Technical Support
Warranty:
- 7 Year Genoray Factory Parts and Components Warranty
- 2 Year Genoray Factory Technician Labor Warranty

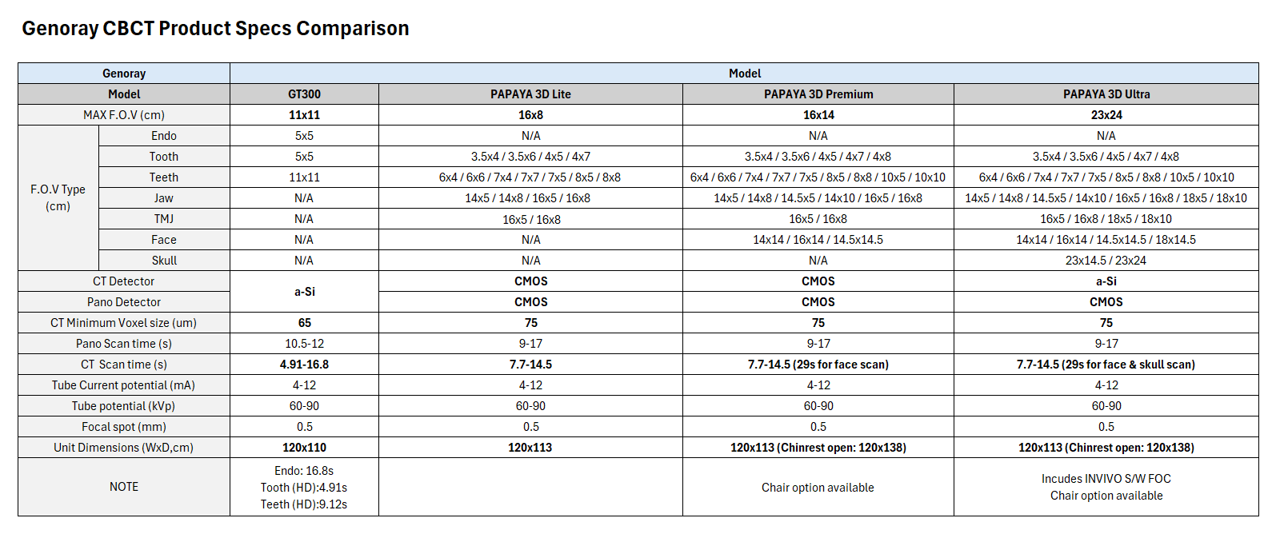

Technical Specifications
- Imaging Modes: CBCT + Panoramic + Cephalometric + Face Mode + Optional 3D Model Scanning
- Maximum CBCT FOV: Φ 16x14 cm
-
Cephalometric Viewing Modes: 24x24 cm standard | 31x24 cm wide mode
- Voxel Size: 75–200 μm
- CBCT Scan Time: 7.7 / 14.5 sec
- Sensor Architecture: Dedicated multi-sensor imaging system
- Automated Sensor Positioning: Yes
- Cephalometric Programs: Lateral, AP, PA, Water’s View, SMV, Carpus
- Image Format: DICOM Compatible
- Software Architecture: Open platform
- Tube Voltage: 60–90 kV
- Tube Current: 4–12 mA
- Focal Spot: 0.5 mm
- Patient Accessibility: Wheelchair accessible
- Structural Design: Self-standing system with no wall anchoring required
- Line Voltage: 100–240V, 50/60 Hz
Why Buy From Dental Marketplace:
- Best-price guarantee on all Genoray equipment
- Financing available — ask us about monthly payment options
- Expert pre-sale consultation with imaging specialists
- Professional installation coordination
- Post-sale support from a dedicated service team
Questions? Call or chat with our imaging specialists 346-885-6521
