Show Patients What You See – Cordless at the Chair

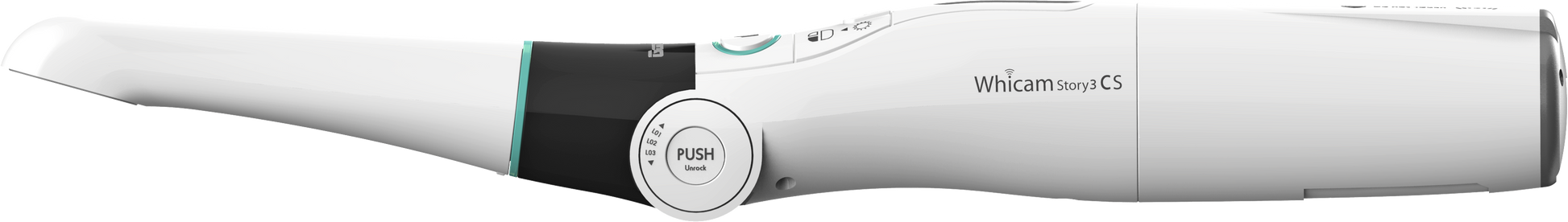

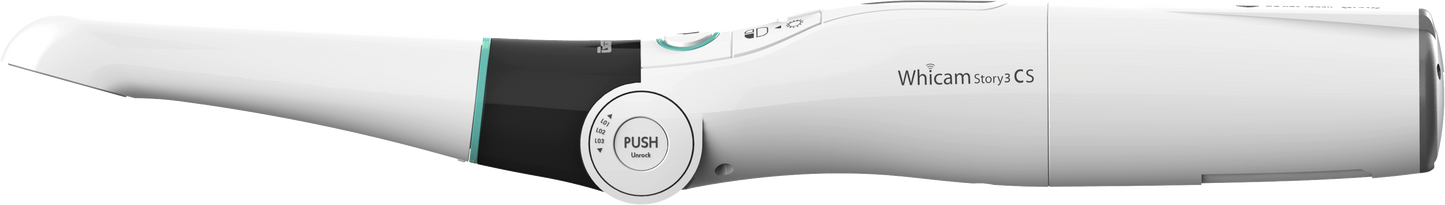

The Whicam Story3 CS wireless camera runs a high-speed digital link to a receiver powered from USB alone – no external supply, and unlimited receiver channels so one camera can serve several rooms. HD 720p, real autofocus, 280° twist head, gyro mouse, user-replaceable battery.

Key Features and Benefits

• HD 720p, 1280 x 720 through a CMOS sensor with a liquid lens
• Real autofocus, with a semi-focus mode when the operator wants manual control

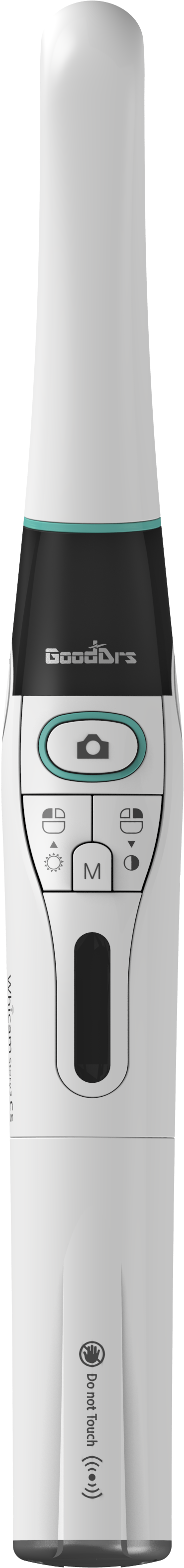

• Built-in gyro mouse – drive the cursor and step through images from the camera body
• 280° twist head plus three adjustable head angles to reduce arm fatigue
• OLED status screen and LED illumination at three adjustable brightness levels
• High-speed digital wireless with unlimited receiver channels – one camera, many operatories, no interference
• Receiver runs on USB power alone, no separate electrical supply
• User-replaceable battery with larger capacity for longer sessions
• 266 x 31 x 37 mm, approx. 140 g

Clinical and Workflow Advantages

• Unlimited receiver channels mean the same camera moves between operatories instead of buying one per room
• A USB-powered receiver adds nothing to the outlet count at a crowded chairside computer
• A user-replaceable battery means the camera outlives its first battery rather than being retired with it
• The gyro mouse keeps the whole capture-and-review sequence in the operator's hand, gloves on

Why Choose This Product

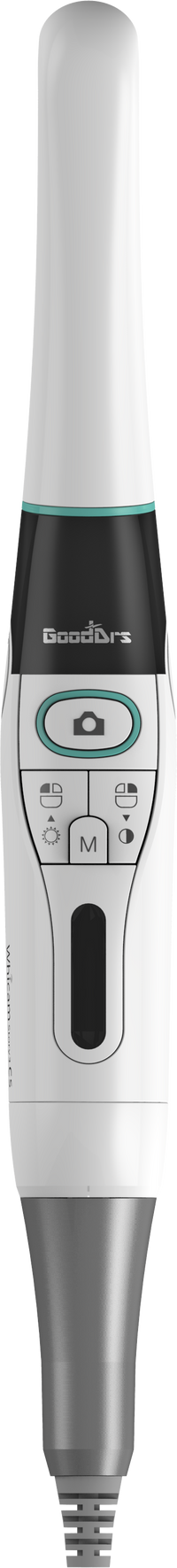

Wired and wireless share the same head, sensor and optics – the image is identical. Pay the difference for the cordless link only if the operatory layout, or the plan to share one camera across rooms, justifies it. It is compatible with Eaglesoft, Dexis, Planmeca Romexis, Schick, Curve Dental, Sirona and MacPractice among others, and Flight provides remote integration support.

What’s Included

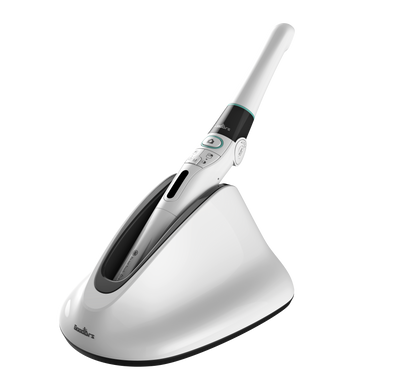

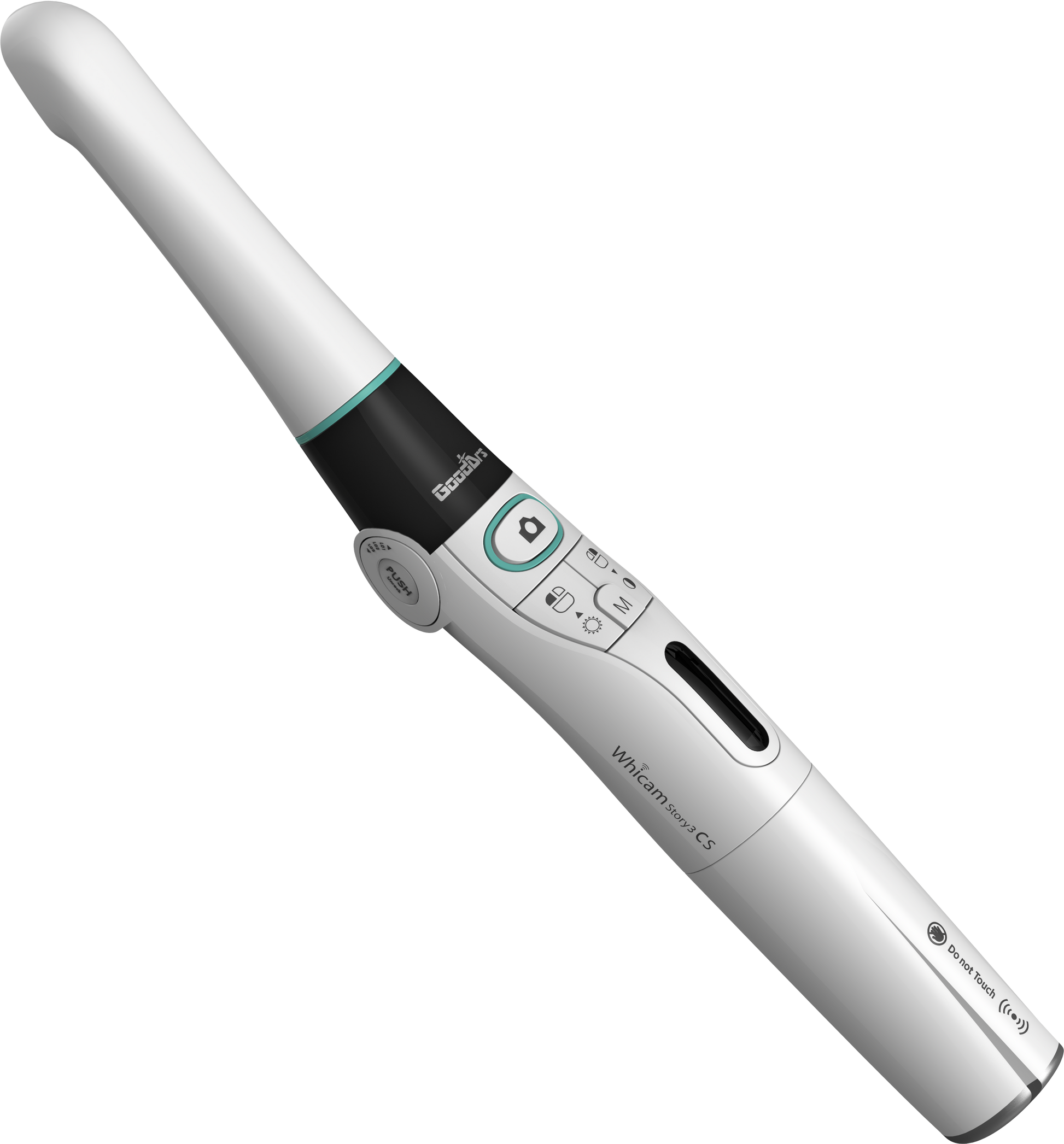

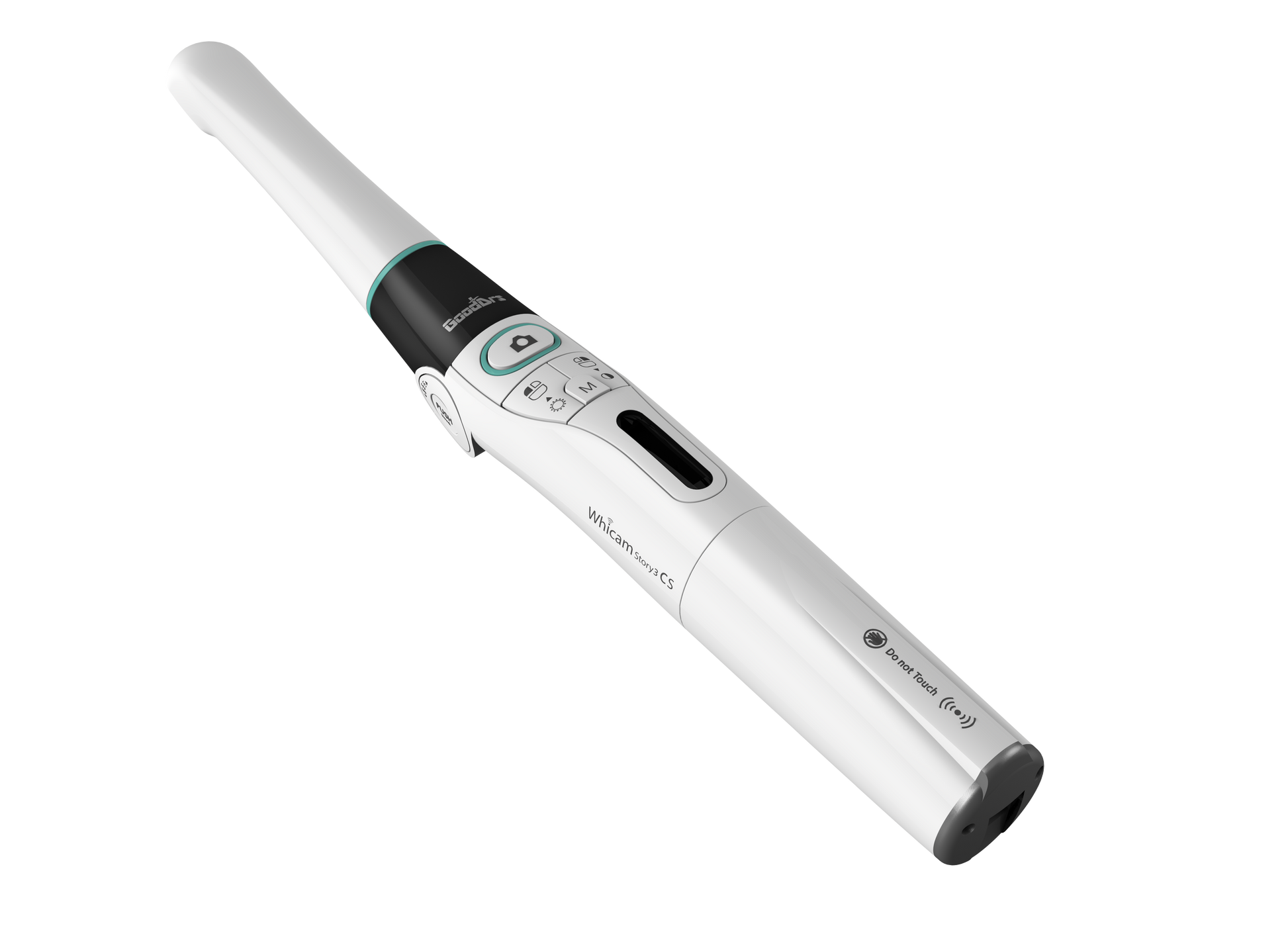

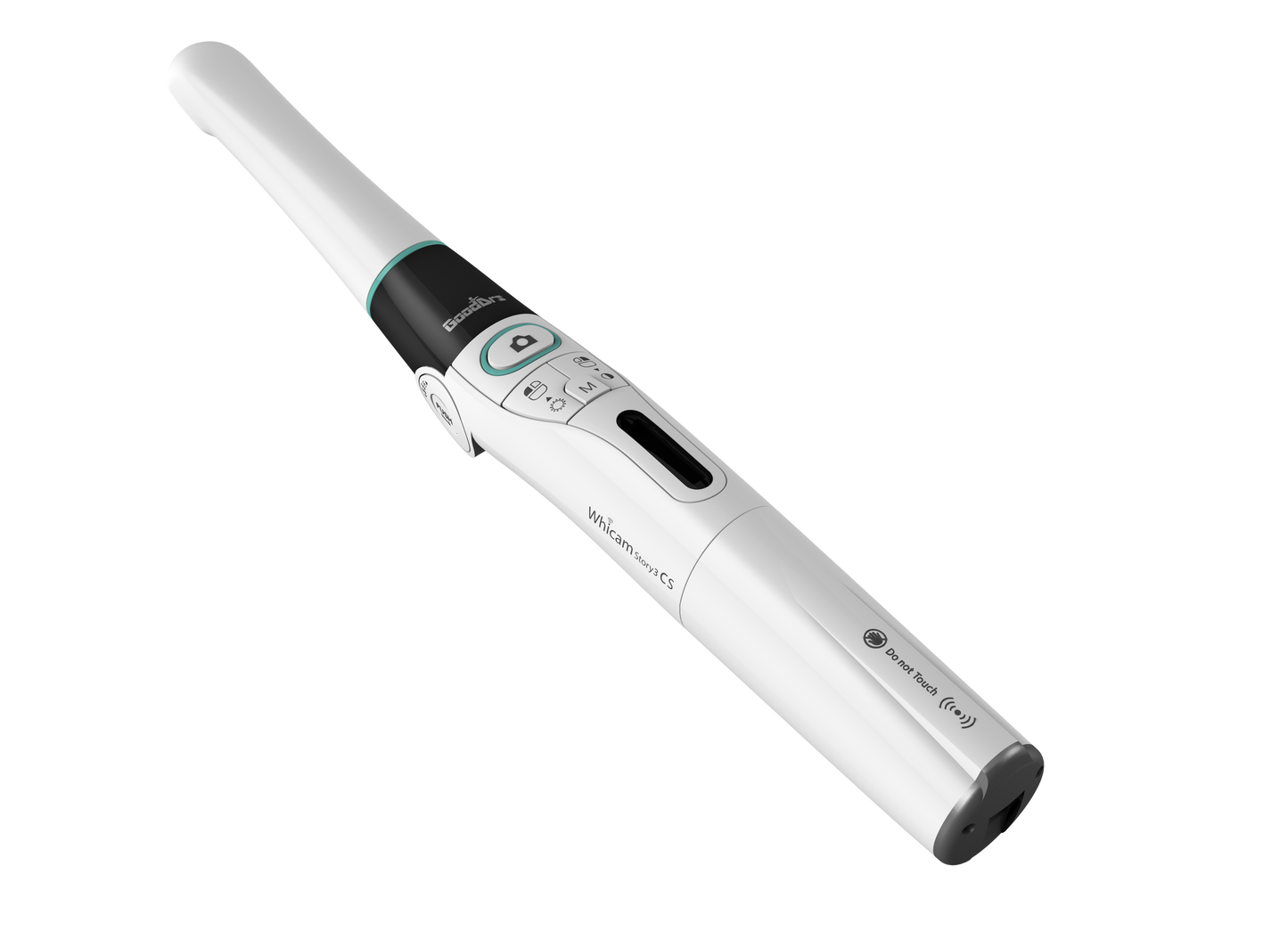

• Whicam Story3 CS camera with head
• Wireless receiver, USB 2.0 powered

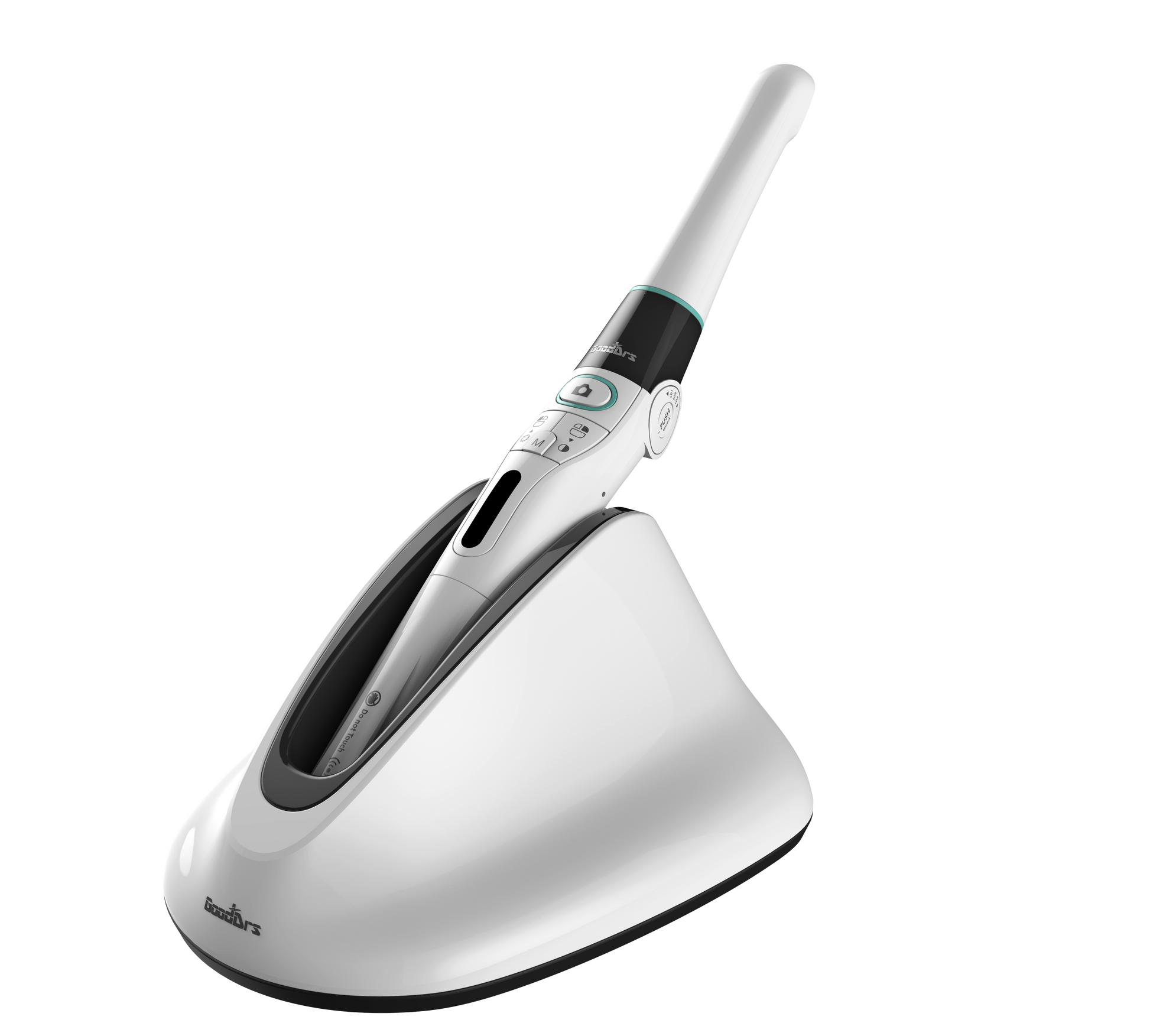

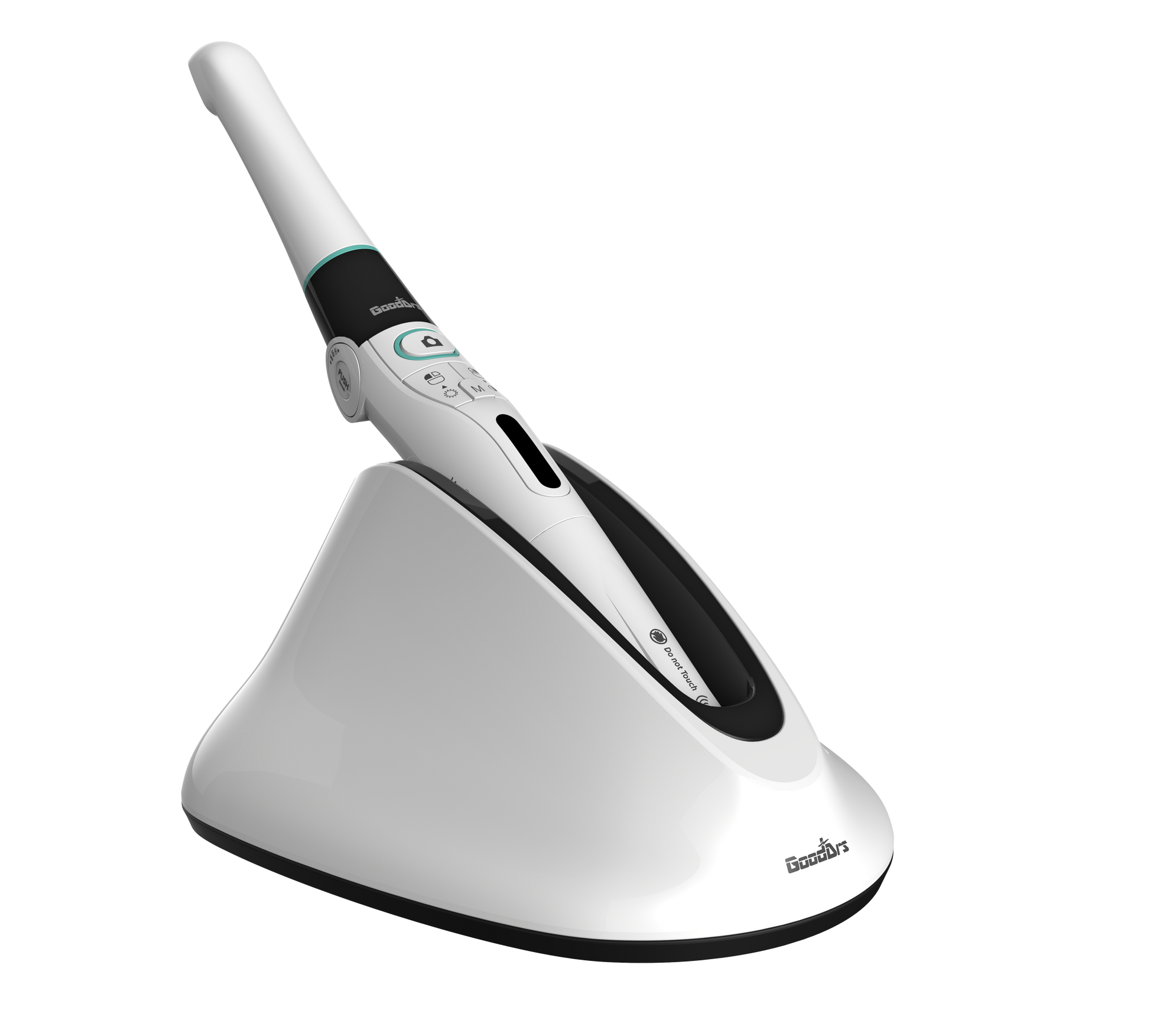

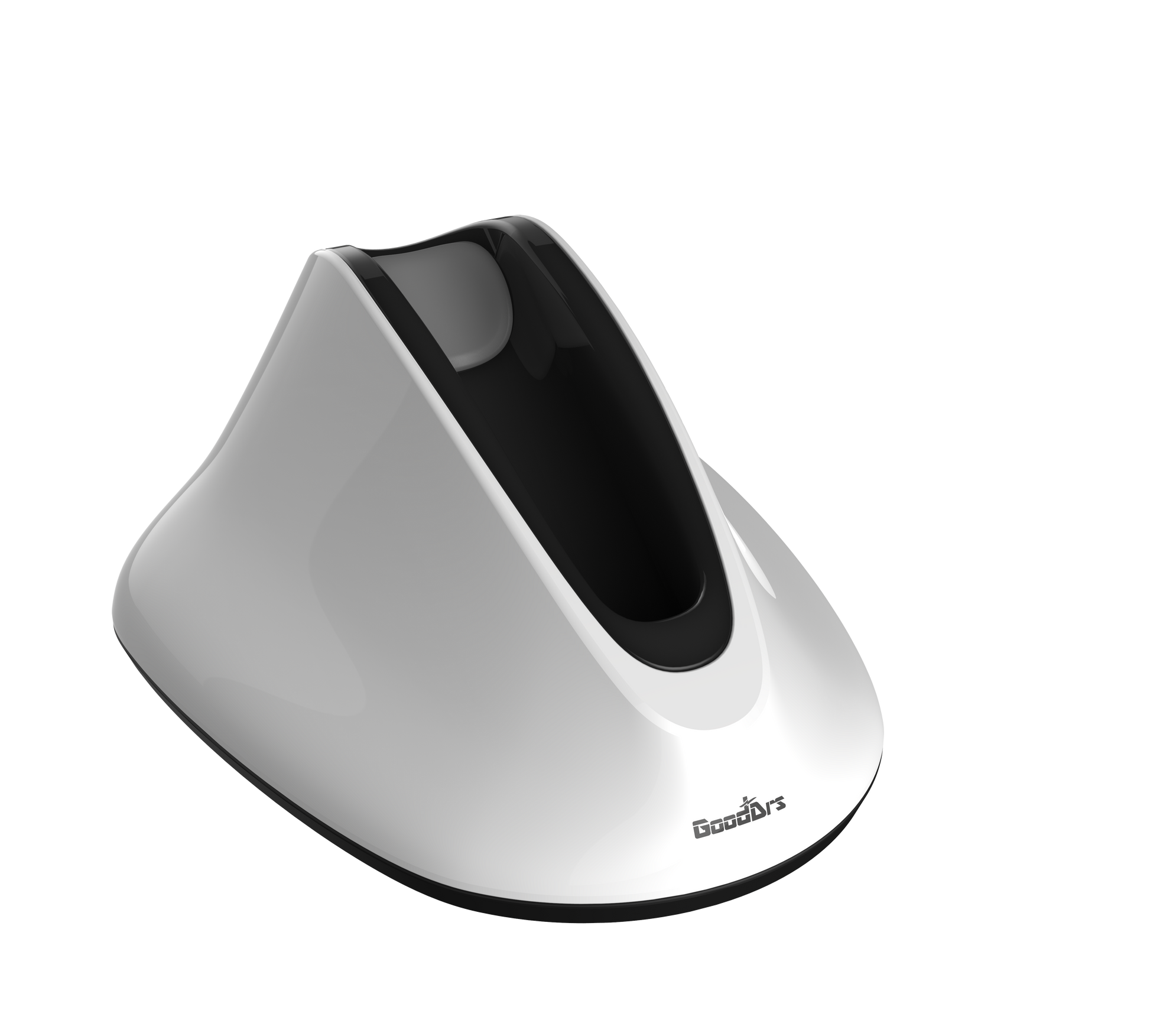

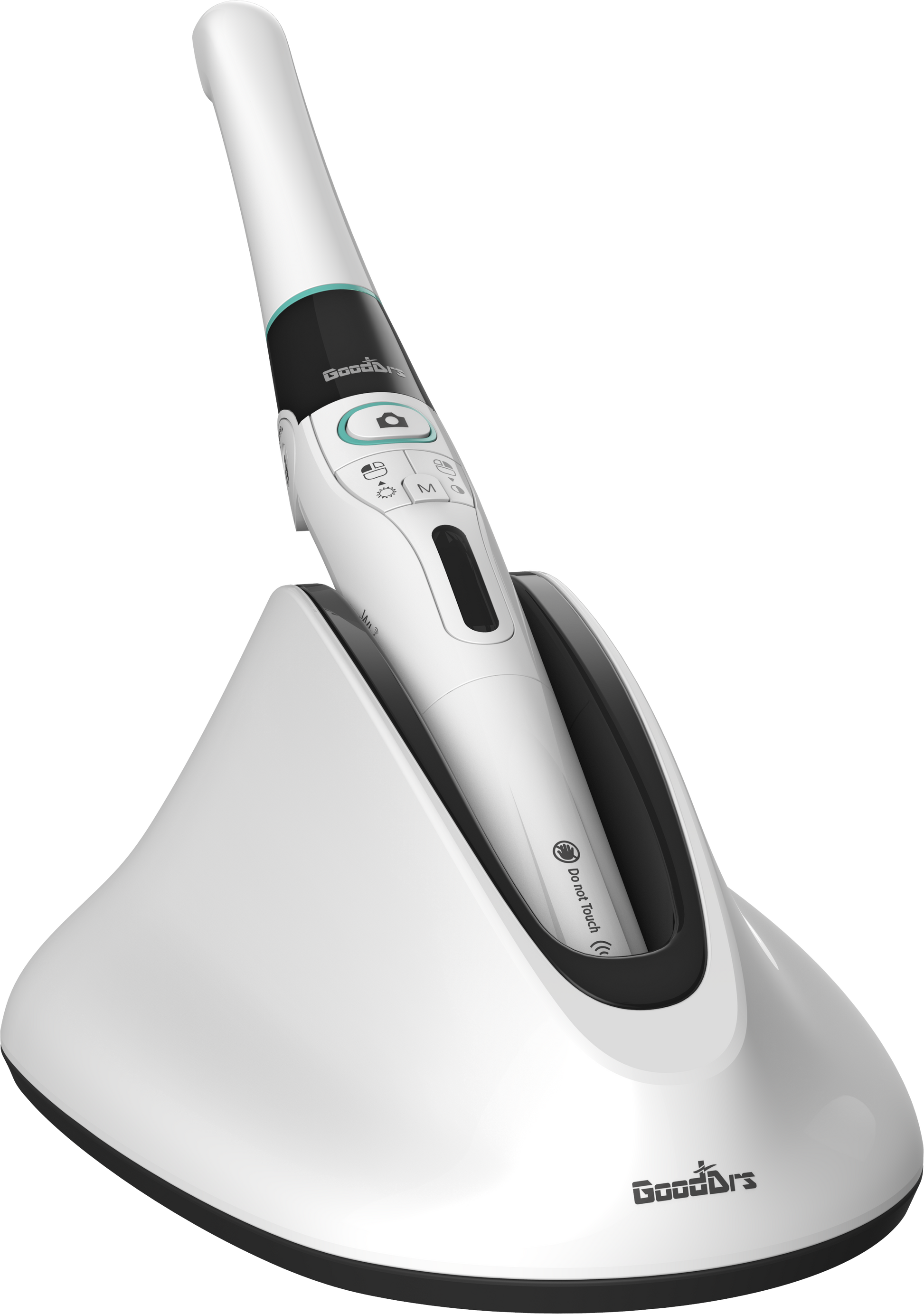

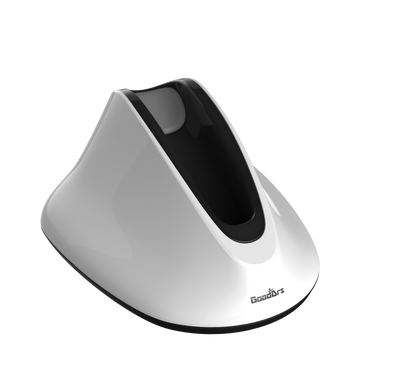

• Charging base, 169 x 148 x 89 mm
• Power adapter, AC 100 – 240 V in, DC 5 V 2 A out, UL file E333054
• Disposable covers, approx. 32 x 100 mm, polyethylene, approx. 100 pieces by weight x 2

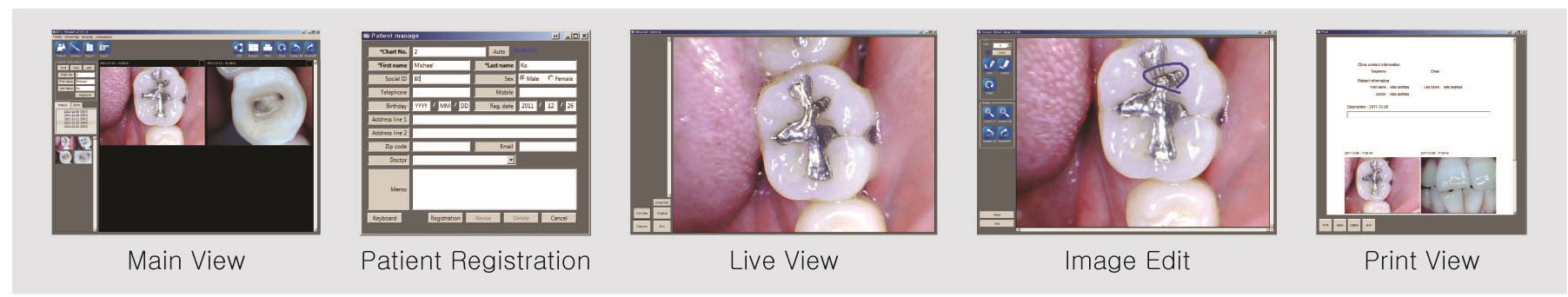

• Whicam imaging software

Not included:

• Computer, monitor and practice management software are not included
• The camera requires Windows 7 or 8, a 2.0 GHz CPU, 4 GB RAM and a USB 2.0 port. Windows XP is not HIPAA compliant and is not supported.

Warranty and Support

1-Year Manufacturer’s Warranty. Warranty coverage is subject to the manufacturer’s terms and proper use, cleaning, and maintenance requirements. DentalMarketplace provides warranty coordination and post-sale support.
