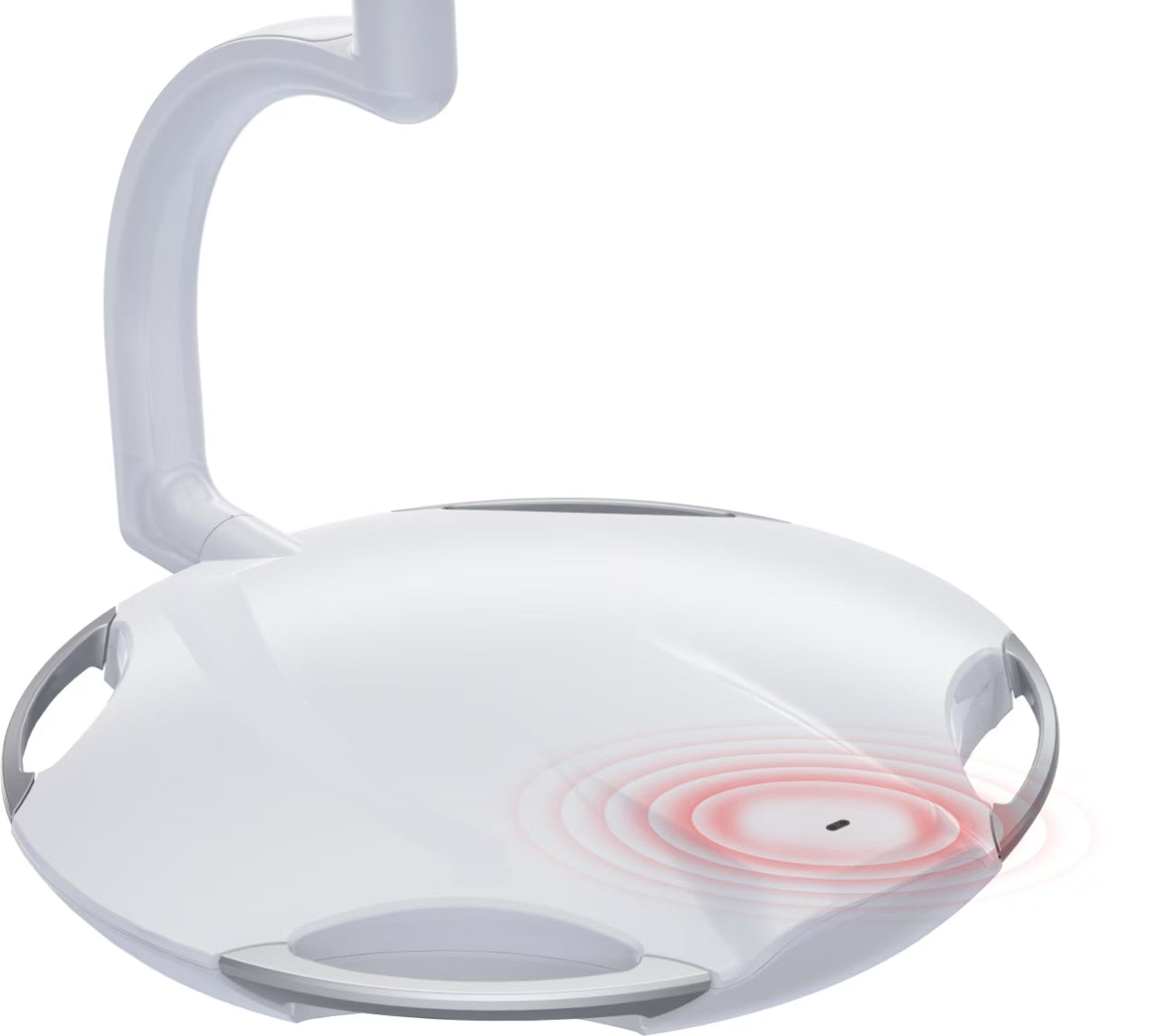

Flight Quantum CL-307SF Surgical Ceiling Light | 80,000 Lux, 20 LED, Sensor Control

Flight Quantum CL-307SF Surgical Ceiling Light | 80,000 Lux, 20 LED, Sensor Control

$2,550.95
$3,570.00 $2,550.95
Sale Sold out
  • SKU: CL-307SF
  • Brand: Flight Dental Systems
  • Ships From: Flight Warehouse

10% Instant Rebate

Visa

Why Dentists Nationwide Trust DentalMarketplace

Risk-Free Ordering with a 30-Day Money Back Guarantee
Quality Manufacturers & Authorized Distribution Channels
Fast U.S. Shipping with Real-Time Order Tracking
100% Best In Class Customer Service

Description

Surgical Lighting on a Standard Operatory Ceiling – 12 White and 8 Yellow LEDs

The Flight Quantum CL-307SF mixes 12 white and 8 yellow LEDs to hold Ra 90 ± 3% across a 4000 – 5300 K range, projecting a 200 x 100 mm spot at 700 mm. It is specified for 8 to 10 ft ceilings and runs on AC 24 V at under 25 VA.

Key Features and Benefits

  • 20 LEDs – 12 white and 8 yellow, mixed to hold colour accuracy rather than raw brightness alone
  • Illuminance adjustable per ISO 9680:2021, from below 15,000 lx to above 60,000 lx; Flight markets the range as 15,000 – 80,000 lx
  • Ra 90 ± 3% colour rendering at 4000 – 5300 K
  • 200 x 100 mm light spot at 700 mm – a defined surgical field, not a flood
  • Handsfree sensor control or touchpad control, continuous operation
  • AC 24 V input, under 25 VA draw, approx. 3.95 kg (8.7 lb) head
  • Specified for 8 to 10 ft ceiling heights

Clinical and Workflow Advantages

  • Mixing warm and cool emitters is what holds Ra near 90; a single-colour LED array reaches the same lux with visibly poorer tissue rendering
  • A defined 200 x 100 mm spot at working distance keeps the light on the field and out of the patient's eyes
  • Touch-free sensor control keeps gloves off the light during a surgical procedure
  • An 8 to 10 ft ceiling specification puts surgical lighting in a converted operatory rather than a purpose-built suite

Why Choose This Product

Surgical lighting is normally specified for hospital ceiling heights and hospital budgets. The CL-307SF is built for the ceiling you already have, on a 24 V low-voltage supply drawing less than 25 VA. DentalMarketplace is an authorized US Flight dealer.

What’s Included

  • Flight Quantum CL-307SF surgical ceiling light head
  • Ceiling mounting hardware as supplied by the manufacturer

Not included:

  • Ceiling reinforcement, electrical supply and any structural work are not included
  • The head is rated IPX0 – ordinary equipment with no protection against ingress of water
  • Installation must be performed by an authorized Flight dealer – installation by anyone else voids the manufacturer's warranty

Warranty and Support

2-Year Manufacturer’s Warranty. Warranty coverage is subject to the manufacturer’s terms and proper use, cleaning, and maintenance requirements. DentalMarketplace provides warranty coordination and post-sale support.

Related Products

Technical Specifications

Flight Quantum CL-307SF Surgical Ceiling Light | 80,000 Lux, 20 LED, Sensor Control

  • Product type: LED surgical ceiling light
  • Model designation: CL-307SF
  • Light source: 20 LEDs - 12 white, 8 yellow
  • Illuminance: Minimum below 15,000 lx to maximum above 60,000 lx, adjustable, per ISO 9680:2021. Flight markets the range as 15,000 - 80,000 lx
  • Light spot size: 200 x 100 mm at 700 mm
  • Color temperature: 4000 - 5300 K
  • Color rendering index: Ra 90 +/- 3%
  • Light control: Handsfree sensor control or touchpad control
  • Mode of operation: Continuous
  • Rated input voltage: AC 24 V
  • Rated power: Less than 25 VA
  • Weight: Approx. 3.95 kg (8.7 lb)
  • Ingress protection: Ordinary equipment, IPX0 - no protection against ingress of water
  • Operating conditions: 10 to 40 C ambient, 30 - 85% relative humidity
  • Transport and storage: -40 to +70 C, 10 - 95% relative humidity
  • Ceiling height: 8 - 10 ft
  • Mount: Ceiling
  • Brand: Flight Dental Systems
  • Warranty: 2 years, manufacturer
  • Installation: Authorized Flight dealer required
  • Dental licence gate: Not required
  • Market: Authorized for sale in the United States

Downloads & Documentation

FAQs

Flight Quantum CL-307SF Surgical Ceiling Light | 80,000 Lux, 20 LED, Sensor Control

Q: How bright is it?

A: Illuminance is adjustable in accordance with ISO 9680:2021, from below 15,000 lx to above 60,000 lx. Flight markets the range as 15,000 to 80,000 lux.

Q: How many LEDs, and why two colours?

A: 20 in total - 12 white and 8 yellow. Mixing warm and cool emitters is what holds the colour rendering index near 90; a single-colour array reaches the same lux with visibly poorer tissue rendering.

Q: What is the colour rendering index?

A: Ra 90 plus or minus 3%, across a colour temperature range of 4000 to 5300 K.

Q: How large is the light spot?

A: 200 x 100 mm measured at 700 mm working distance.

Q: What ceiling height does it need?

A: It is specified for ceilings of 8 to 10 feet - ordinary dental operatory height, not a purpose-built surgical suite.

Q: What power supply does it need?

A: AC 24 V, drawing less than 25 VA. It is a low-voltage head; the transformer provision is part of the installation.

Q: How heavy is the head?

A: Approximately 3.95 kg (8.7 lb).

Q: How is intensity adjusted?

A: By handsfree sensor control or by touchpad control. It runs in continuous operation.

Q: Can it be used in a wet environment?

A: No. The head is rated IPX0 - ordinary equipment with no protection against ingress of water. Operating conditions are 10 to 40 C and 30 to 85% relative humidity.

Q: Can I use it as a general operatory light?

A: It will illuminate a general operatory, but it is specified for surgical work. For general operatory lighting the Flight Torch range is the appropriate product.

Q: What warranty does it carry?

A: Two years. Flight warrants all lights, including ceiling lights, for two (2) years.

Q: Who installs it?

A: An authorized Flight dealer. Installation by anyone else voids the manufacturer's warranty.
