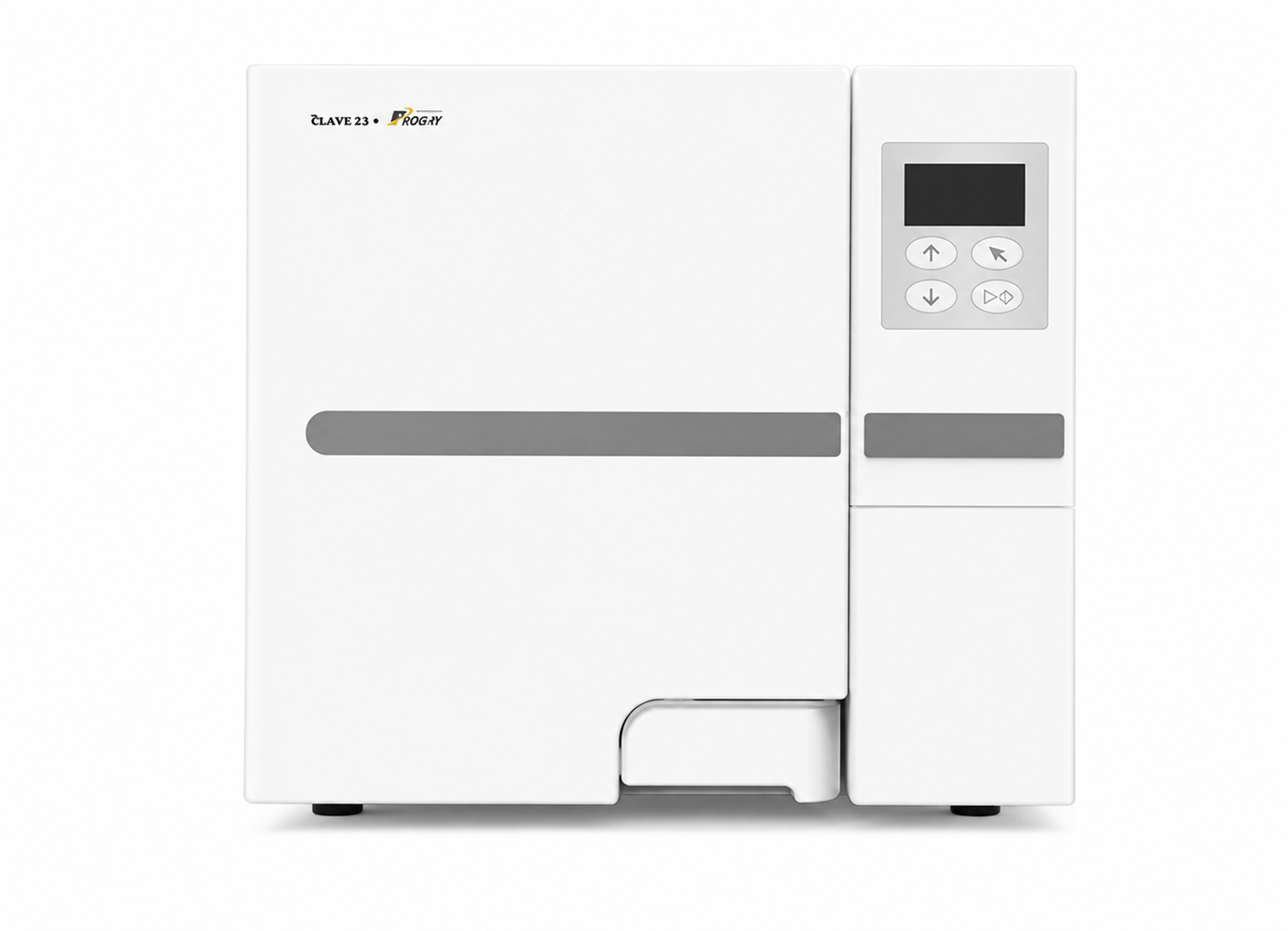

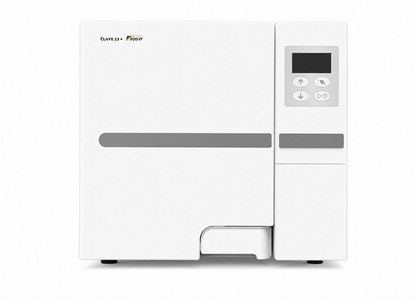

Flight Clave23+ Class S Dental Autoclave With Built-in Printer & Datalogger 23L

Flight Clave23+ Class S Dental Autoclave – 23L Automatic Steam Sterilizer

The Flight Clave23+ Class S Dental Autoclave is a fully automatic steam sterilizer designed for dental and medical practices that require reliable sterilization of solid and specific hollow instruments with built-in documentation and efficient workflow.

With a 23-liter stainless steel chamber, the Clave23+ offers an ideal balance of capacity, footprint, and performance, making it a strong choice for general dentistry, hygiene rooms, and specialty practices that do not require full Class B vacuum cycles.

Why Choose the Flight Clave23+ Autoclave?

The Flight Clave23+ provides Class S sterilization, meaning it is optimized for validated instrument loads defined by the manufacturer, including solid instruments and select hollow items. It delivers consistent performance, automatic drying, and integrated reporting—without the added cost or complexity of a full Class B system.

This makes the Clave23+ a practical, cost-effective solution for clinics that need dependable sterilization and compliance, but do not routinely process wrapped porous loads.

Key Features & Benefits

• 23 Liter Stainless Steel Chamber (9.72"x 17.7")
  Ideal capacity for daily clinical instrument processing.
• Class S Steam Sterilization
  Designed for validated solid instruments and specific hollow loads per manufacturer specifications.
• Fully Automatic Sterilization Programs
  Preset cycles ensure repeatable results with minimal operator input.
• Air-Assisted Drying System
  Produces dry, storage-ready instruments at the end of each cycle.
• Built-In Thermal Printer & Datalogger
  Automatically prints sterilization reports for compliance and record keeping.
• USB Data Logging
  Stores digital cycle records for inspections, audits, and quality assurance.
• User-Friendly Digital Control Panel
  Clear interface with real-time cycle monitoring and alerts.
• Designed for Dental & Medical Practices
  Built for consistent daily use in clinical environments.

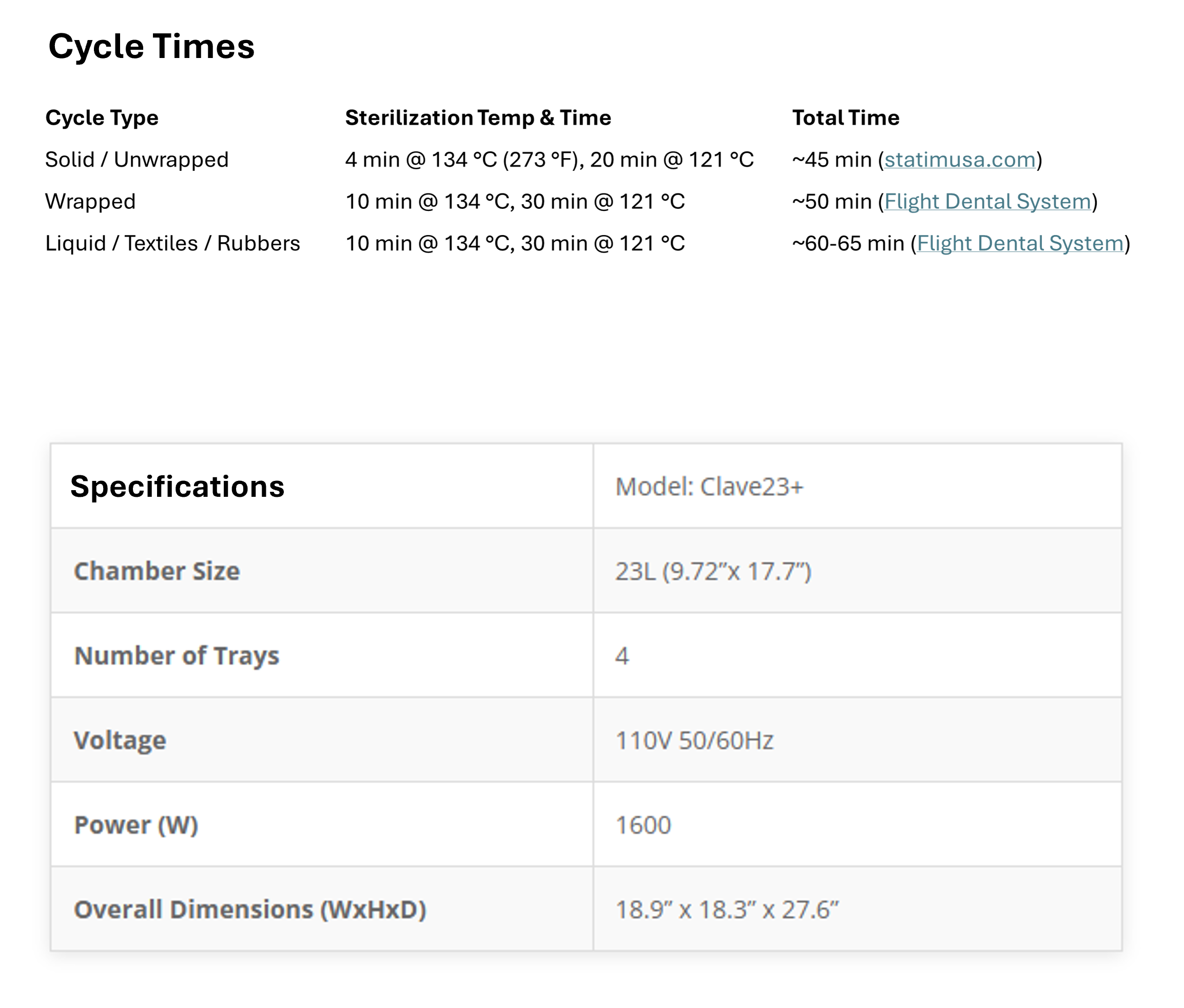

Core Technical Specifications

• Model: Clave23+
• Sterilizer Type: Class S Steam Autoclave (with air-assisted drying)
• Chamber Capacity: 23 liters
• Chamber Size: approx. 9.72″ × 17.7″ (L × D)
• Chamber Material: Stainless Steel
• Sterilization Cycles Supported: Solid instruments and validated hollow loads
• Documentation: Built-in printer and USB data export
• Number of Trays: 4
• Voltage: 110 V, 50/60 Hz
• Power: ~1,600 W
• Overall Dimensions (WxHxD): ~18.9″ × 18.3″ × 27.6″
• Water Reservoir: easily accessible with level sensor
• Drying: Air-assisted closed-door drying with integrated compressor

Warranty

• 2-Year Manufacturer’s Warranty

Frequently Asked Questions

What does Class S sterilization mean?

Class S autoclaves are designed to sterilize specific instrument types validated by the manufacturer, typically solid instruments and certain hollow items, but not all wrapped or porous loads like Class B units.

Who should use a 23L Class S autoclave?

• General dental practices
• Hygiene and restorative dentistry
• Clinics sterilizing primarily solid instruments
• Practices seeking lower cost vs Class B systems

Does the Clave23+ include drying?

Yes. The Clave23+ features an automatic air-assisted drying system to ensure instruments are dry and ready for storage or use.

How are sterilization cycles documented?

Each cycle can be recorded using the built-in thermal printer or saved digitally via USB data logging.
