Eighteeth NanoPix Intraoral X-Ray Sensor (Size 1, Size 1.5, Size 2)

Fast, Clear, Comfortable Digital X-Ray Imaging – In Three Sizes, One System

The Eighteeth NanoPix Intraoral X-Ray Sensor delivers high-resolution digital radiographs in about three seconds, with an ultra-thin 4.4 mm body that patients actually tolerate. Available in Size 1 (Pediatric), Size 1.5 (Universal), and Size 2 (Adult), one sensor family covers every patient in your practice – from anxious pediatric cases to full-mouth adult series.

Built on APS CMOS technology with a direct-deposition CsI scintillator, NanoPix produces the clean, high signal-to-noise images you need for confident caries, endodontic, and periodontal diagnosis – at a fraction of the cost of premium-tier sensors. It connects by USB with TWAIN support for most major imaging platforms, so it drops into the software you already run.

Key Features and Benefits

• 25 lp/mm theoretical / 20 lp/mm true resolution: High-definition capture for fine caries lesions, root apices, and bone detail.
• Ultra-thin 4.4 mm profile: One of the thinnest sensors available – easier placement, less gagging, better patient tolerance.
• Three sizes, one platform: Size 1 Pediatric, Size 1.5 Universal, and Size 2 Adult share the same software and workflow.
• AED (Automatic Exposure Detection): Images appear automatically when the X-ray fires – no separate trigger step.

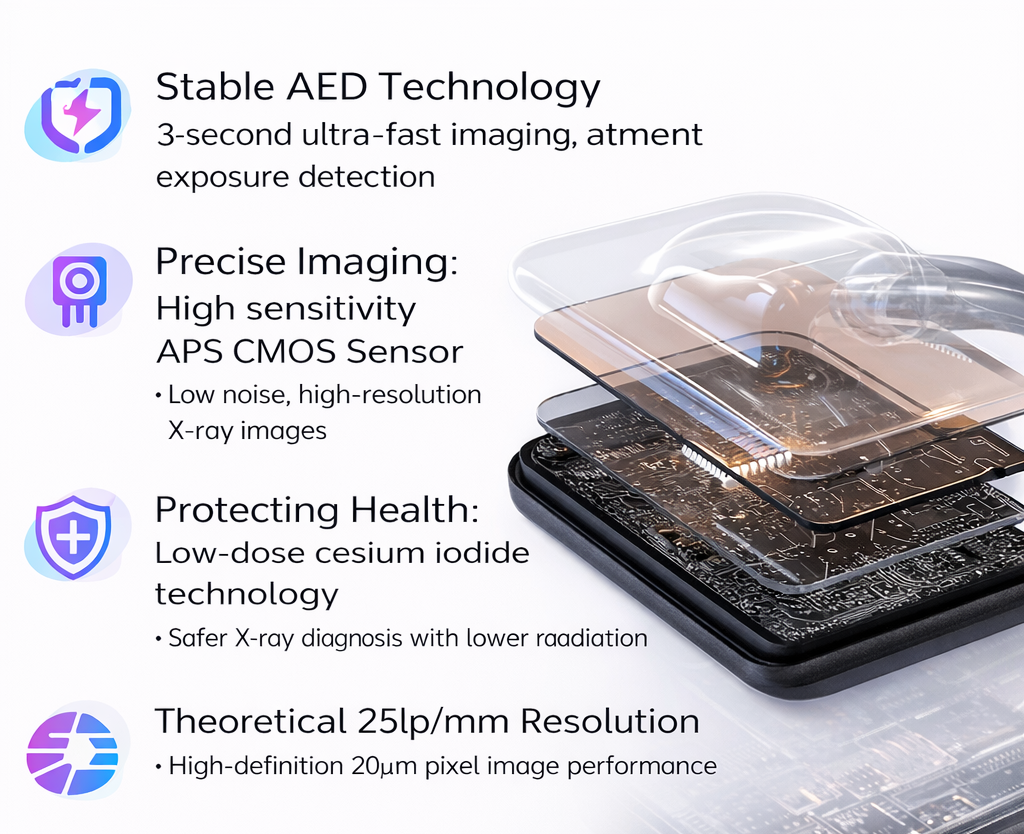

• APS CMOS + direct-deposition CsI: High signal-to-noise ratio with low dose and short exposure times.
• 16-bit AD conversion: Extended dynamic range for detail in both dense and thin tissue on a single exposure.

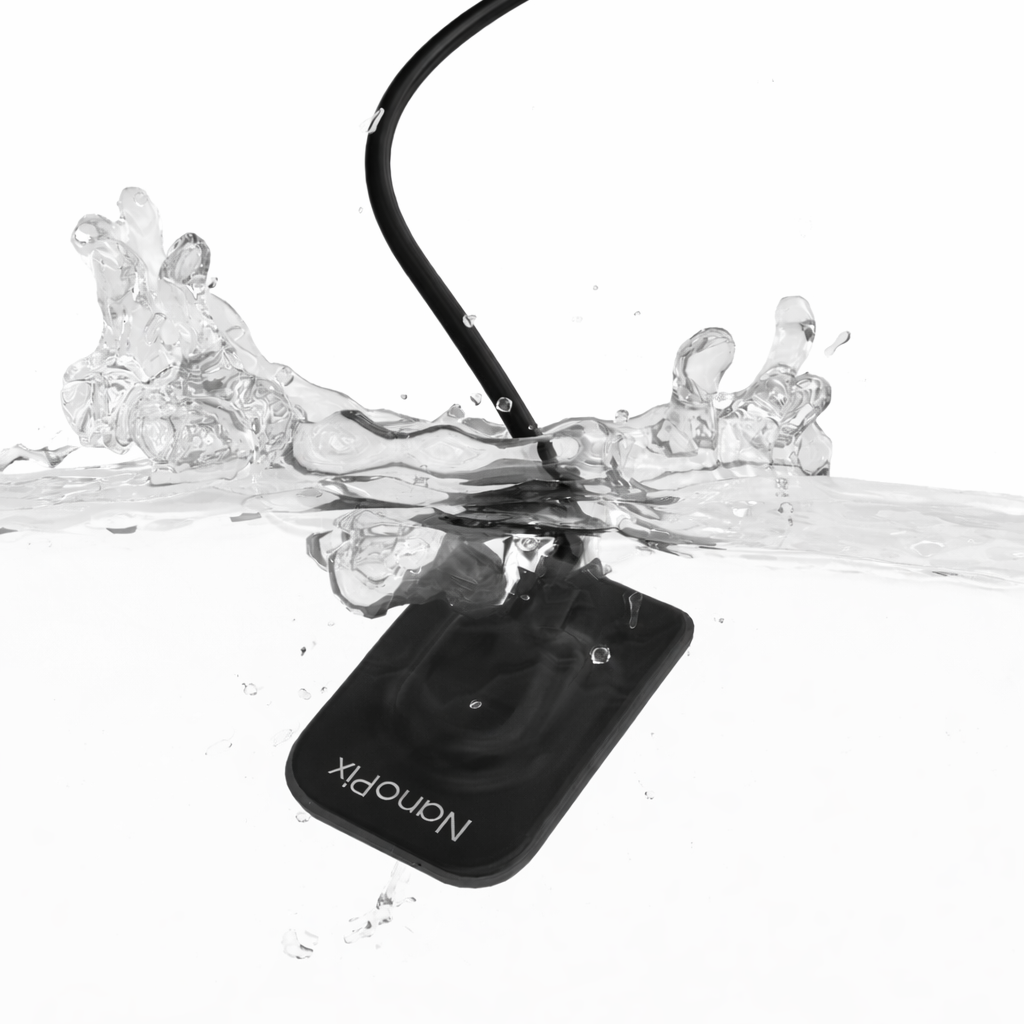

• IP68 sealed housing: Fully protected against moisture and dust for reliable infection-control handling.
• Built to last: Rated for 50,000+ exposures with no quality loss and 70,000+ cable bend cycles.

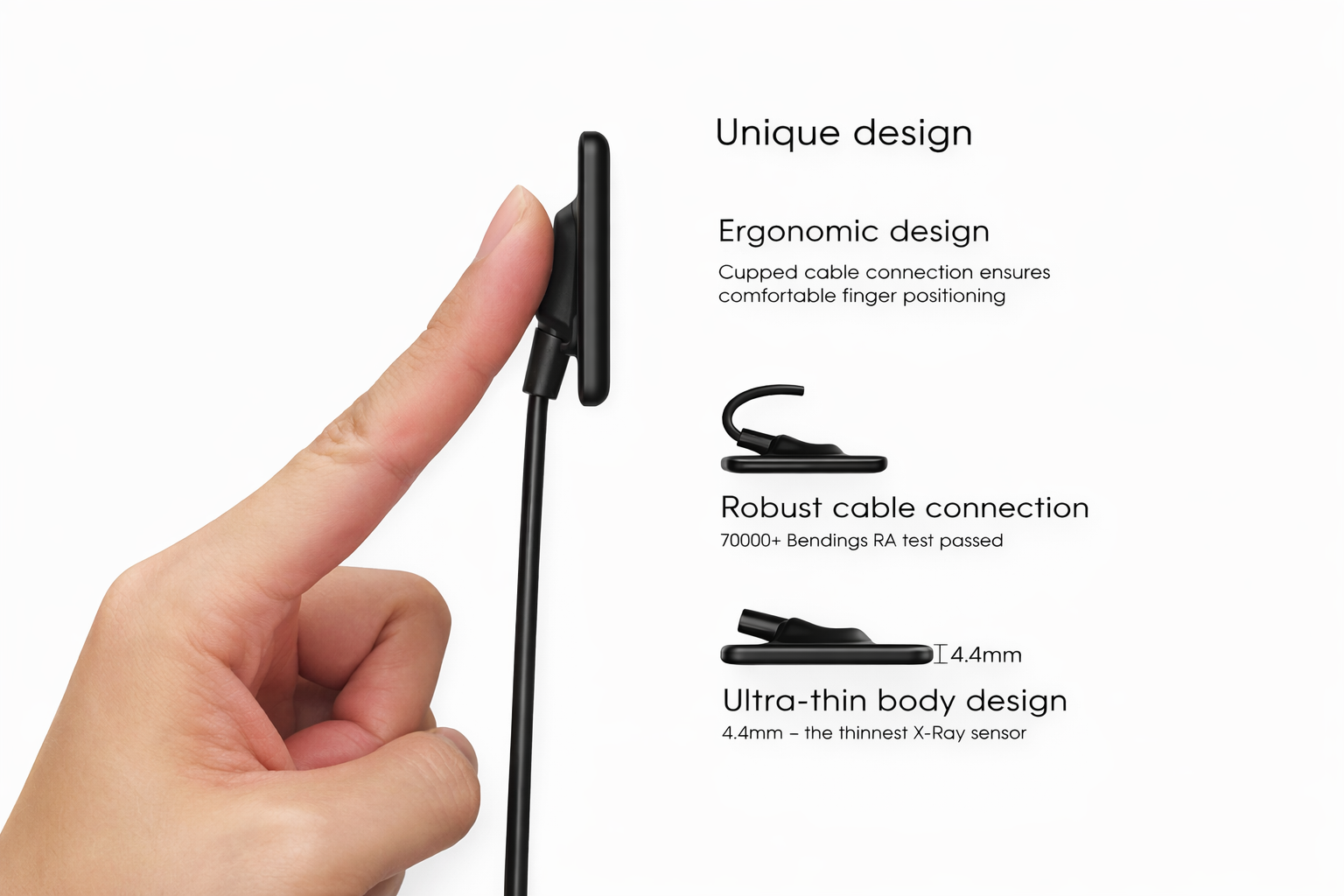

• Ergonomic rounded design: Smooth edges and a cupped cable connection improve comfort and finger positioning.

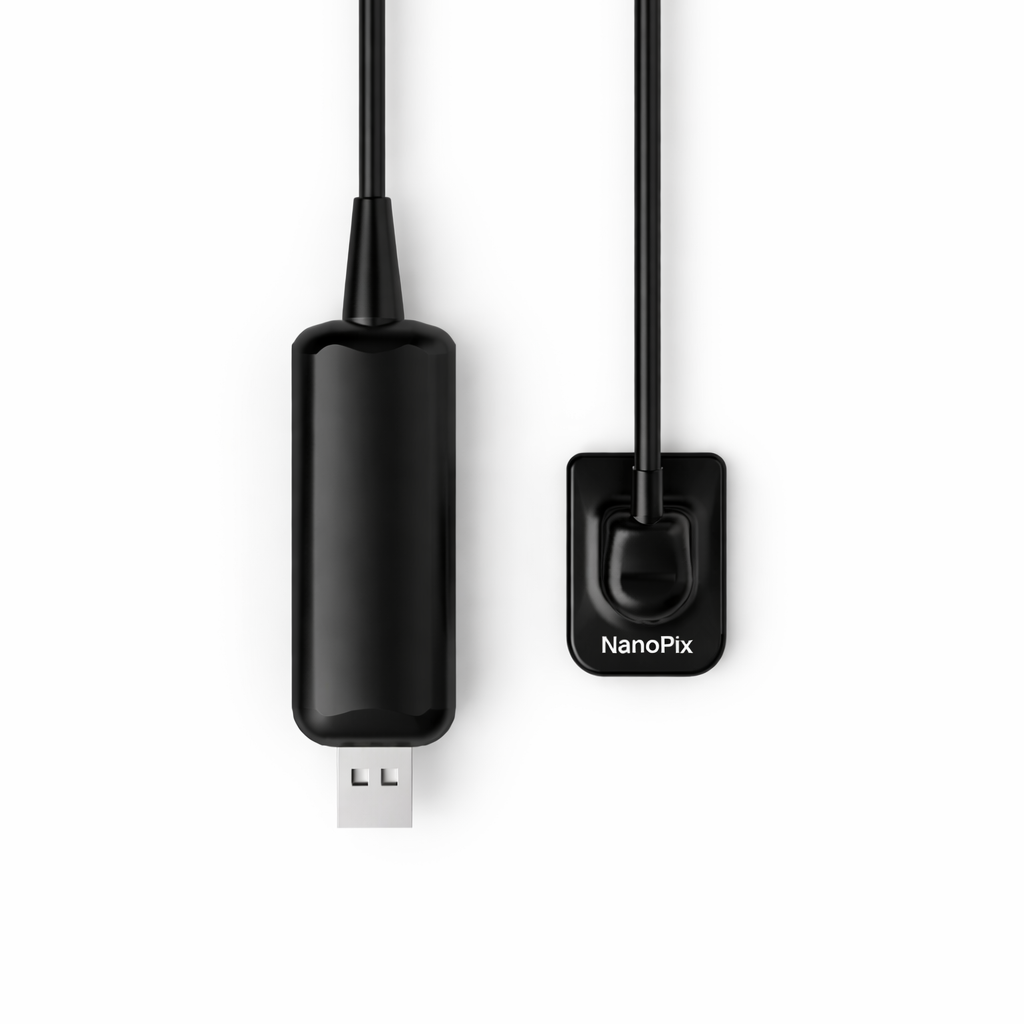

• Plug-and-play USB: No external control box required; TWAIN support for most major imaging software.

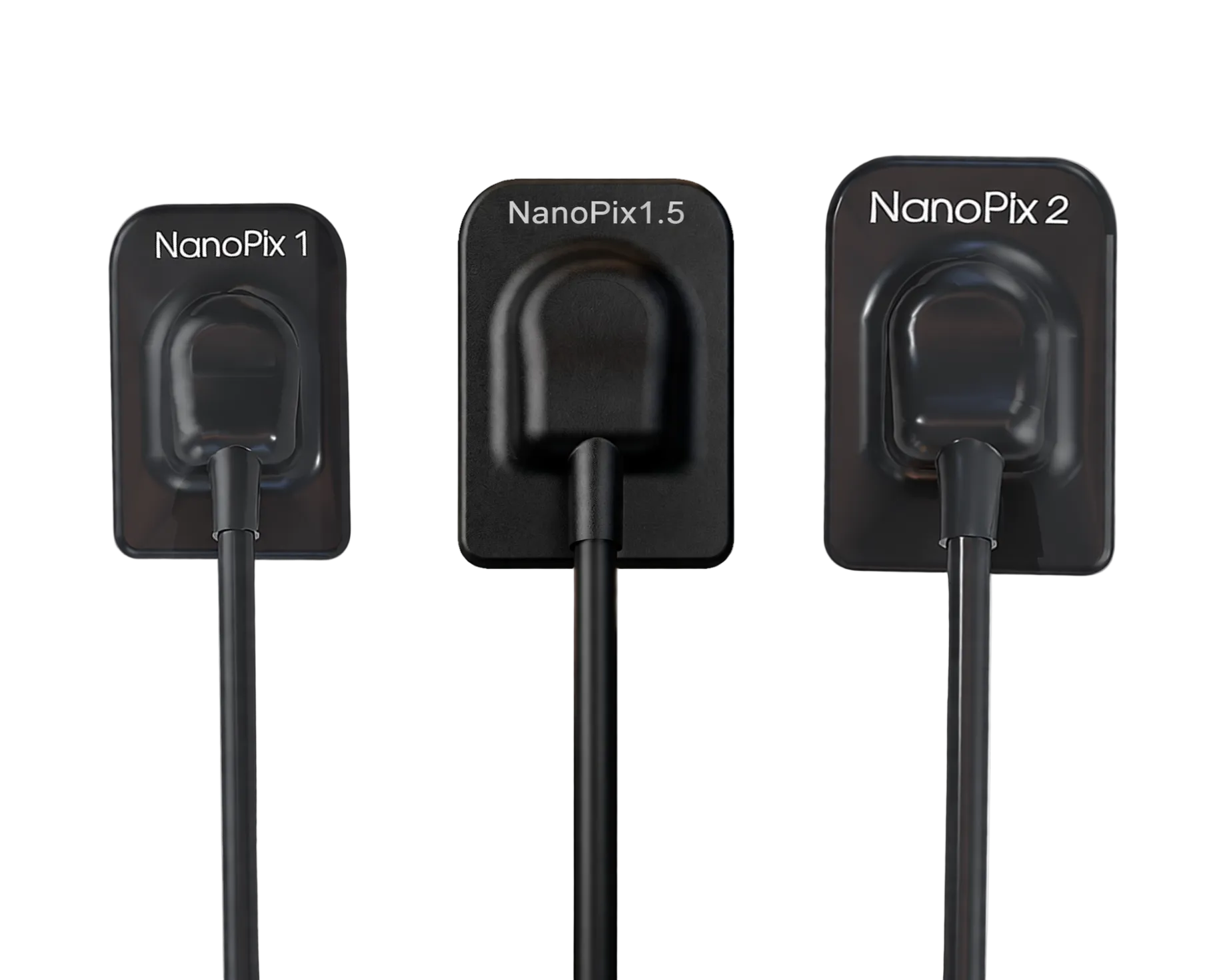

Choosing the Right Size for Your Practice

All three NanoPix sensors share identical imaging technology – the same 20 µm pixel size, the same 25 lp/mm theoretical / 20 lp/mm true resolution, and the same 4.4 mm thickness. The difference is coverage area versus comfort:

• Size 1 (Pediatric): 24 × 33 mm active area. Best for children, small adult anteriors, and narrow arches where placement is difficult.
• Size 1.5 (Universal): 24 × 33 mm active area. The practical all-rounder – comfortable enough for most patients while still covering routine bitewings and periapicals.
• Size 2 (Adult): 26 × 36 mm active area. Maximum coverage for adult full-mouth series, posterior bitewings, and endodontic working-length films.

Many practices run a Size 2 for routine adult imaging plus a Size 1 for pediatric and difficult placements. Because all three use the same software, adding a second size later requires no retraining.

Why Practices Choose NanoPix

Premium-tier intraoral sensors from the major U.S. brands commonly run from roughly $6,000 to over $10,000 per sensor, often with proprietary software ecosystems and non-repairable cables. NanoPix delivers 25 lp/mm theoretical (20 lp/mm true) resolution, a 4.4 mm profile, IP68 sealing, and 16-bit imaging at a small fraction of that cost – with open TWAIN compatibility instead of vendor lock-in.

• One sensor family covers every patient (three sizes, one software platform)
• Roughly one-tenth the per-patient cost compared with traditional film
• Complete imaging process in about three seconds for faster appointments
• Open TWAIN support – works with the imaging software you already own
• Matches the Woodpecker i-Sensor on core specs (25 lp/mm theoretical, 20 lp/mm true) at a competitive price
• Backed by a 2-year manufacturer warranty and U.S. fulfillment

What's Included

• NanoPix Intraoral Sensor (Size 1, 1.5, or 2 – based on selection)
• USB Interface / Connection Cable
• Sensor Holder Kit
• Protective Barriers / Sleeves
• NanoPix Imaging Software
• User Manual

Package contents may vary by manufacturer production batch; confirm current contents at order.

Warranty and Support

The NanoPix includes a 2-year manufacturer warranty covering defects in materials and performance under normal clinical use. DentalMarketplace coordinates order fulfillment, customer service, and warranty support from our Dallas warehouse. Remote installation and software setup assistance is available through the manufacturer support channel.

TWAIN Compatible Imaging Software:

• VixWin
• Curve
• Apteryx
• Xrayvision
• EzDent
• DentiMx
• SOPRO
• XDR
• DTX Studio
• Open Dental
• CLINIVIEW
• SotaImage
• Dentrix Ascend
• iDentalSoft
• Oryx
• TigerView
• EagleSoft
• DEXIS (IO sensor component enabled)

Remote TWAIN Support: https://yeahdental.com/support

• NanoPix Market Comparison
