Eighteeth E-Connect S Endo Motor with Built-in Apex Locator

Eighteeth E-Connect S — Cordless Endo Motor with Integrated Apex Locator

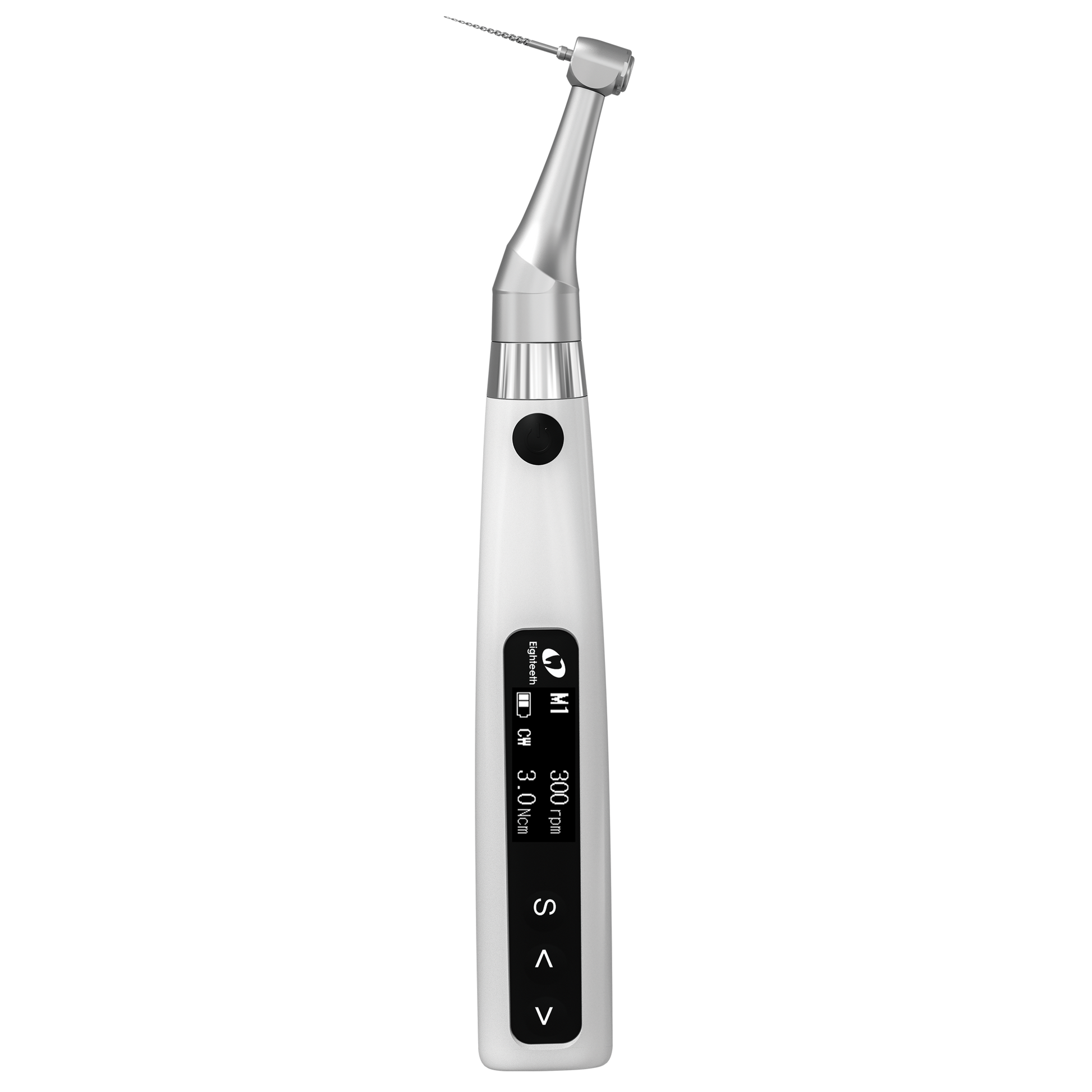

The Eighteeth E-Connect S is a professional-grade cordless endodontic motor that integrates a precision brushless motor with a multi-frequency apex locator in a single ergonomic handpiece. It streamlines root canal treatment by combining canal preparation and working-length measurement — simultaneously or independently — without the need for a separate apex locator unit.

Built on a brushless induction motor platform, the E-Connect S delivers smooth, low-vibration performance across a 100–1,000 RPM range with torque adjustable from 0.5 to 4.0 Ncm. The 360° rotatable ECAN mini contra angle provides unobstructed access to all quadrants, while the OLED display rotates for comfortable left- or right-hand use. Eleven memory presets (M0–M10) come pre-loaded with 30 of the most common rotary file system settings and can be fully customized or upgraded via USB.

The integrated safety system — Auto Start & Stop, Apical Slow Down, and Apical Reverse — works in real time to protect the cemento-dentinal junction, reduce procedural errors, and minimize the risk of file separation. A visualized apex bar chart with zoom function provides clear, real-time feedback on file-tip position throughout the procedure.

Key Features

• Brushless induction motor — reliable, low-noise operation with a longer working life than conventional motors
• Built-in multi-frequency apex locator — use integrated with the motor or with the included manual measuring wire for standalone canal length measurement
• Auto Start & Stop — motor engages when the file enters the canal and stops automatically when withdrawn, reducing clinician fatigue
• Apical Slow Down — motor speed reduces automatically in the apical region to preserve the cemento-dentinal junction and prevent file separation
• Apical Reverse — user-defined reverse trigger at the preset apical point for additional safety control
• 4 working modes — FWD, REV, REC (reciprocation, 30°–370° adjustable, 5 sub-modes), and ATC (Adaptive Torque Control)
• 360° rotatable 1:1 ECAN mini contra angle — one-piece body for easy sterilization and all-quadrant access
• Torque calibration — ensures precise, consistent torque output throughout the procedure
• OLED ambidextrous display — high-contrast screen rotates for left- or right-hand use
• 11 memory presets (M0–M10) — pre-loaded with 30 major file system settings including WaveOne, Reciproc, ProTaper, HyFlex, F360 and more; fully customizable
• Open file system compatibility — not locked to any proprietary file brand; use the NiTi rotary or reciprocating files you already trust

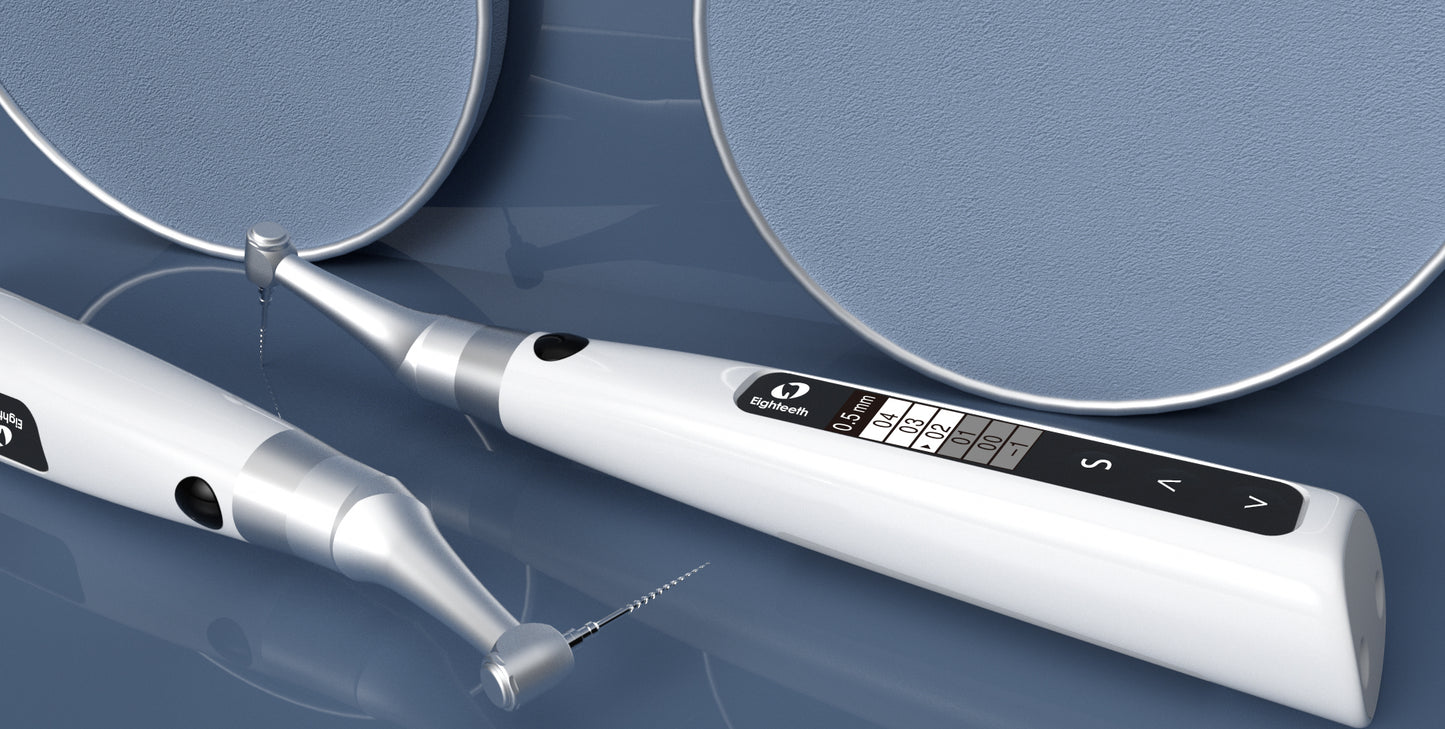

• Visualized apex bar chart with zoom — clear real-time positional feedback during canal measurement
• USB firmware upgrades — keep the device current with the latest software releases
• 1,500 mAh lithium-ion battery — heavy-duty charge for extended clinical use


Working Modes

• FWD — Forward Rotation Continuous clockwise rotation for standard canal preparation with most NiTi rotary file systems.
• REV — Reverse Rotation Continuous counter-clockwise rotation for file systems that specify CCW motion.
• REC — Reciprocation Adjustable forward and reverse angles from 30° to 370°. Five sub-mode configurations allow fine-tuned reciprocation to match specific file system protocols.
• ATC — Adaptive Torque Control When the preset torque limit is reached, the motor automatically reciprocates to relieve file stress rather than going straight into reverse. Once stress is reduced, the motor returns to continuous forward rotation. This extends file life and improves canal enlargement efficiency.

What's in the Box

• 1 x Eighteeth E-Connect S handpiece unit
• 1 x 360° rotatable 1:1 ECAN mini contra angle
• 1 x Manual measuring wire (for standalone apex locator use)
• 1 x Lithium-ion rechargeable battery (1,500 mAh)
• 1 x Battery charger
• 1 x Quick-start guide
• 1 x Full user manual

Warranty & Support

• 1-year manufacturer warranty against defects in materials and workmanship
• Free lifetime firmware updates via USB
• Contact us for clinical support, preset configuration, or warranty claims

Technical Specifications

• Rotation Speed: 100–1,000 RPM
• Torque Range: 0.5–4.0 Ncm
• Working Modes: FWD, REV, REC (5 sub-modes), ATC
• Memory Presets: 11 programs (M0–M10); 30 pre-loaded file system settings
• Reciprocation Angles: Adjustable 30°–370°
• Contra Angle: 1:1 ECAN mini head, 360° rotatable, one-piece body
• Motor Type: Brushless induction motor
• Apex Locator: Multi-frequency; integrated and standalone modes
• Display: OLED; ambidextrous, rotates for left/right hand use
• Battery: 1,500 mAh lithium-ion, rechargeable
• Firmware: USB-upgradeable
• Compatibility: Most major NiTi rotary file systems
• Manufacturer: Changzhou Eighteeth Medical Technology Co., Ltd.
• SKU: YDEY16
• Model: E-Connect S
